PES-1014 User’s Guide
System 4-5
FIELD DESCRIPTION EXAMPLE
Port options Select the number of the port that will monitor the incoming
or outgoing packet flows. 2
Click Apply to save your changes to working memory. Refer to 3.4.4 for directions on saving your changes to
flash memory before you restart the switch.
Performance of a monitored port degrades if incoming and outgoing packet snooping are both being
performed on it simultaneously.
4.5 Networking
Move the cursor over the System link and click Networking to display the Networking screen shown next.
Select one of the two interfaces currently supported (In-Band and Out-of Band) in this management system.
Out-of-Band is the CONSOLE port and cannot be configured.

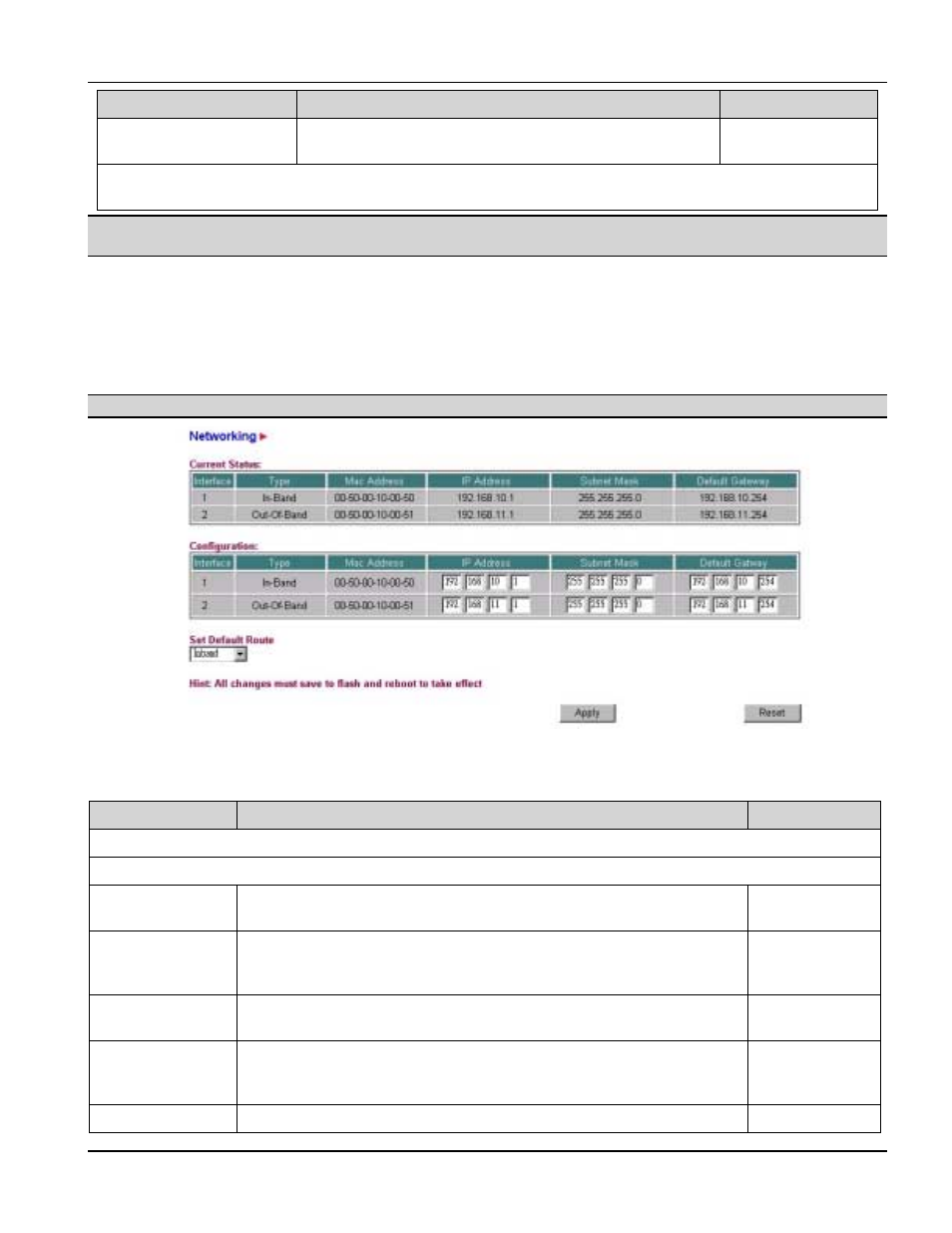

Figure 4-5 Networking
Table 4-4 Networking Description
FIELD DESCRIPTION EXAMPLE
Current Status - These read-only fields display the current status of each interface.
Configuration (You may only configure the in-band interface)
Interface This read-only field is the number of the type of interface that connects
to the switch. 1
Type This read-only field is the type of interface that connects to the switch.
Out-of-band stands for the console port and in-band stands for the
switch’s other ports. Out-of-Band
Mac Address This read-only field is the Mac address calculated by the switch for
either the in-band ports or the out-of-band (console) port. 00-50-00-10-00-
50
IP Address Type your IP address in this field.
Each time the IP address is changed, you must restart the switch
before the new IP address becomes effective. 192.168.10.1
(In-Band default)
Subnet Mask Type your subnet mask here (if you are using one). 255.255.255.0
