PES-1014 User’s Guide
Port 5-3
Table 5-2 Speed/Duplex Settings
SPEED/DUPLEX DESCRIPTION
100/FULL This port is simultaneously sending and receiving transmissions at
100 Mbps (full duplex).
10/FULL This port is simultaneously sending and receiving transmissions at
10Mbps (full duplex).
100/HALF This port is sending or receiving at 100Mbps in one direction only
at a time (half duplex).
10/HALF This port is sending or receiving at 10Mbps in one direction only at
a time (half duplex).
5.3 Port Configuration
Click on a port’s Port NO. in the All Ports Status screen to bring up the Port Configuration screen. Use this
screen to configure the specified port.

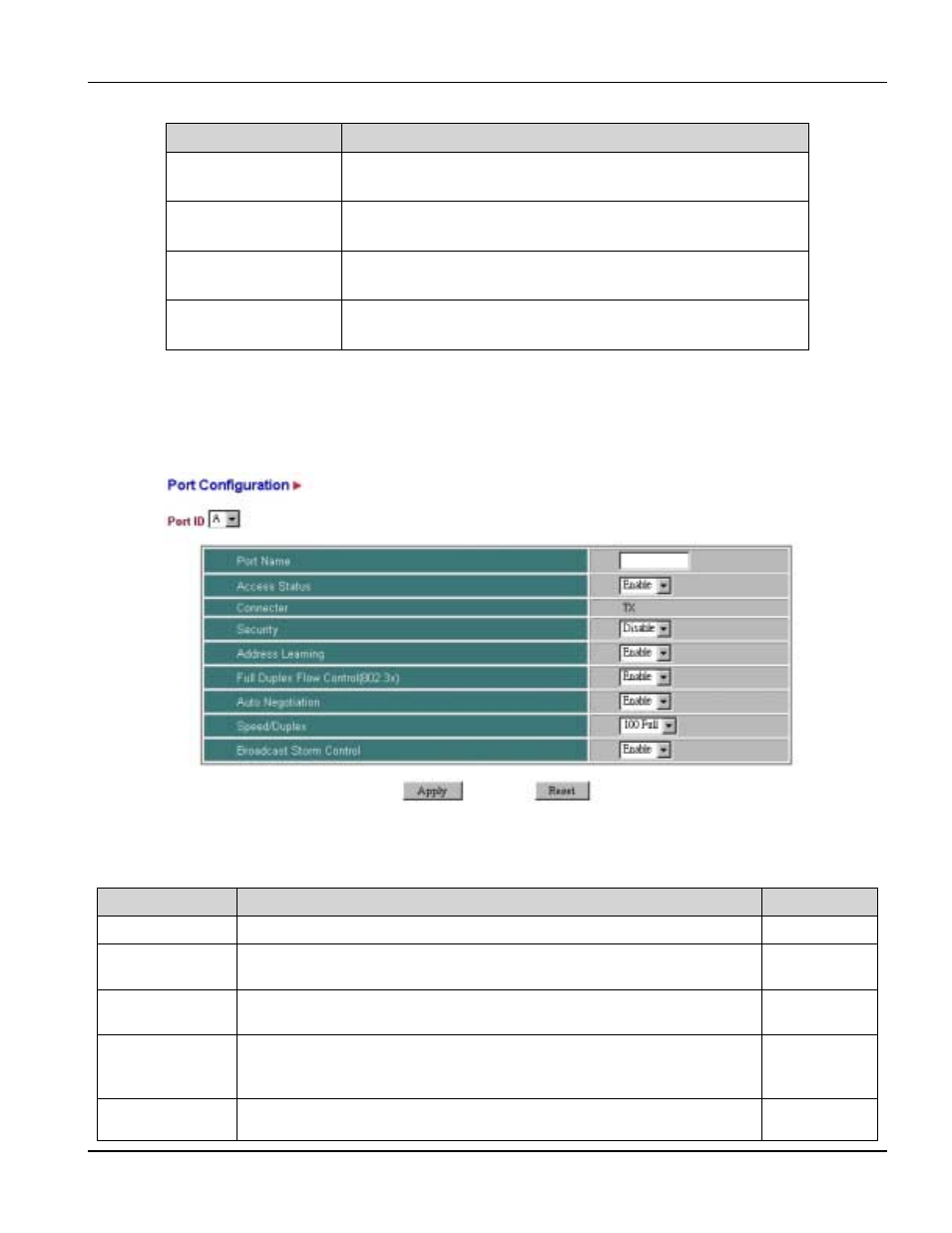

Figure 5-3 Port Configuration
Table 5-3 Port Configuration Description
FIELD DESCRIPTION EXAMPLE
Port ID The letter or number that identifies this port. A
Port Name Give each port a name (up to 255 characters) for identification purposes.
This field is case sensitive. myportname
Access Status Select Enable or Disable to enable or disable port access. Enable
(default)
Connector This read-only field shows the port’s connector type. There are RJ-11
phone connectors for the phoneline networking ports and RJ-45 Ethernet
connectors for the Ethernet ports. TX
Security Use the Security box to set up security functions for the selected port.
Select Enable, to have the switch discard all packets that violate the Disable
(default)
