PES-1014 User’s Guide
Trunk 6-3

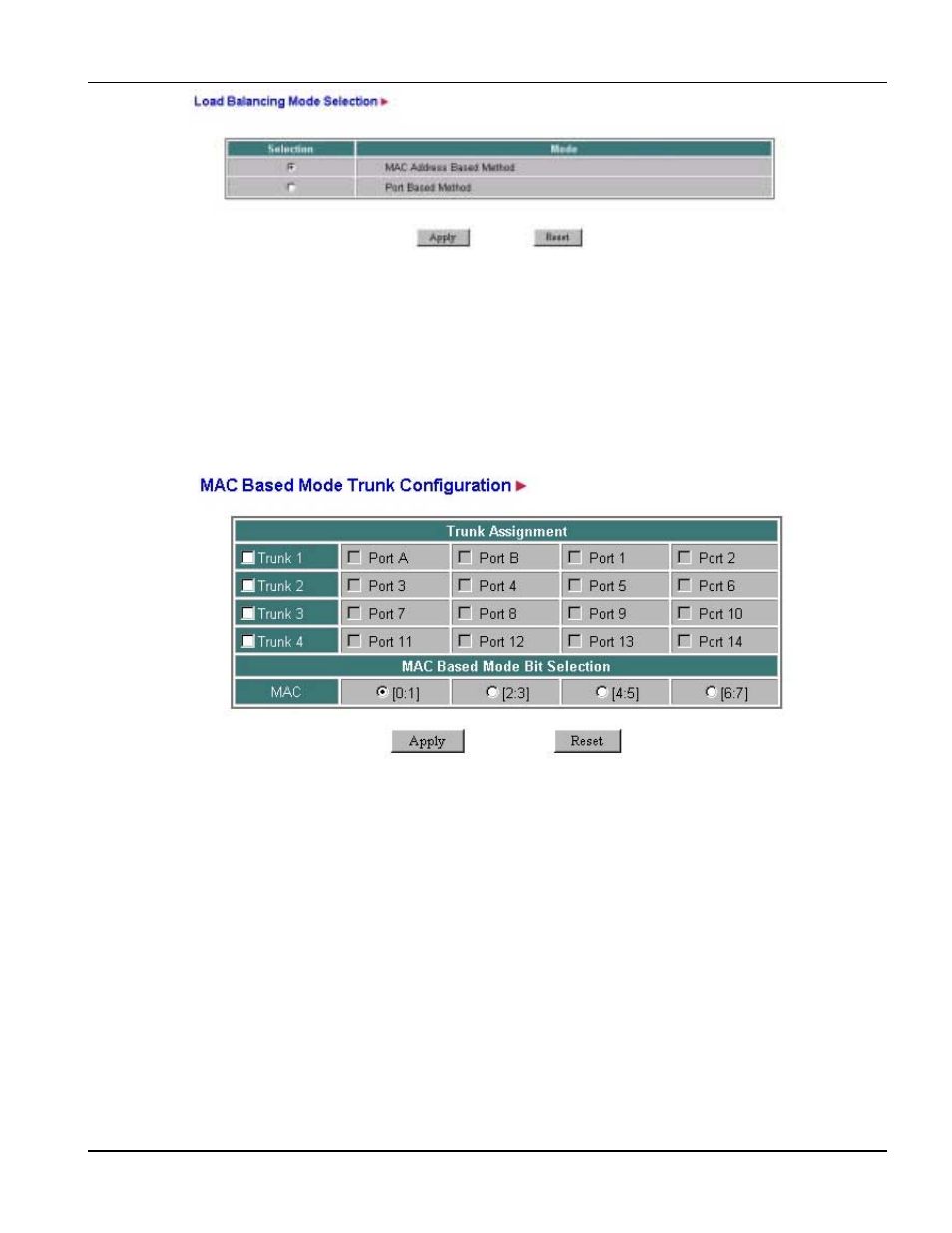

Figure 6-3 Load Balancing Mode Selection Screen
6.3.3 MAC-based Mode Trunk Configuration
Configure this screen when you choose MAC Address Based Method in the previous screen. Select which trunk
should use MAC Address Based Method load balancing and which ports should be included in the selected
trunk(s). Each trunk selected must contain four ports. Once a trunk is selected, the corresponding four ports will
trunk automatically according to the your MAC Based Mode Bit Selection.
Figure 6-4 MAC-based Mode Trunk Configuration Screen
MAC Address Based Mode Bit Selection
Port trunking is determined by a packet’s source MAC address (SA) and destination MAC address (DA). Select
which bit-pair ([0:1], [2:3], [4:5], [6:7]) you want the management system to select from the SA and DA of each
incoming Ethernet data packet. The management system then maps the packet to a port according to the procedure
discussed next.
