AES-100 User’s Guide
Firmware Upload and Recovery 13-3

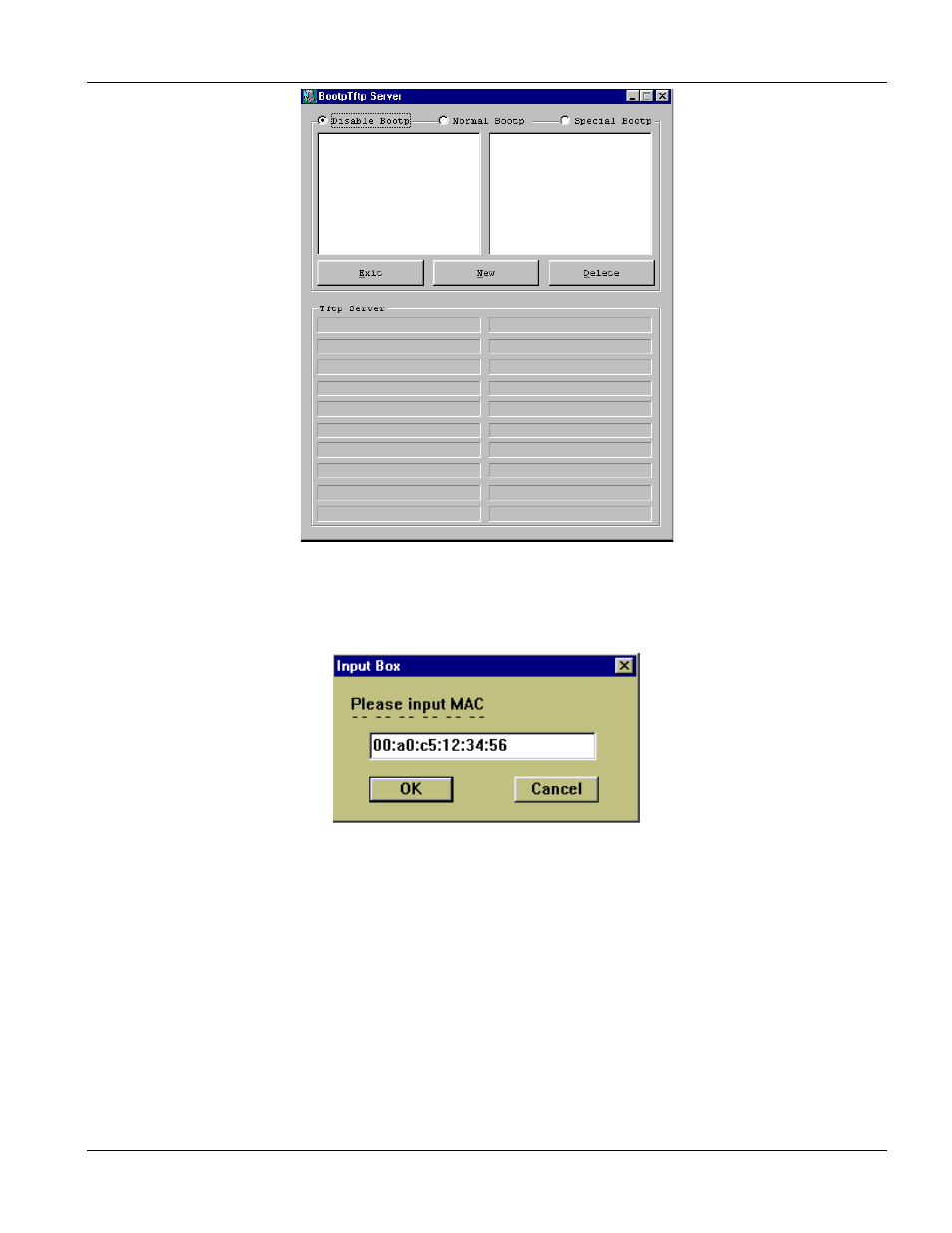

Figure 13-1 BOOTP/TFTP Server
5. The Input Box window will pop up as shown next. Type the MAC address of the ADSL Networking
Module and then click OK. You can find the MAC address of the ADSL Networking Module on its
boot console.
Figure 13-2 Input MAC
6. Type the host IP address (the IP address you want to assign to the ADSL Networking Module), server
IP address (the IP address of this computer), net mask, gateway and filename (the new firmware name)
into the appropriate fields in the screen shown next. Click Update Database.
