AES-100 User’s Guide

2-4

Hardware Overview

Connect the female end of the power cord to the power receptacle on the rear panel of your AES-100 (just to the
right of the warning sticker) as seen next. Connect the other end of the cord to a power outlet. Make sure that no
objects obstruct the airflow of the fans (located on the side of the unit).

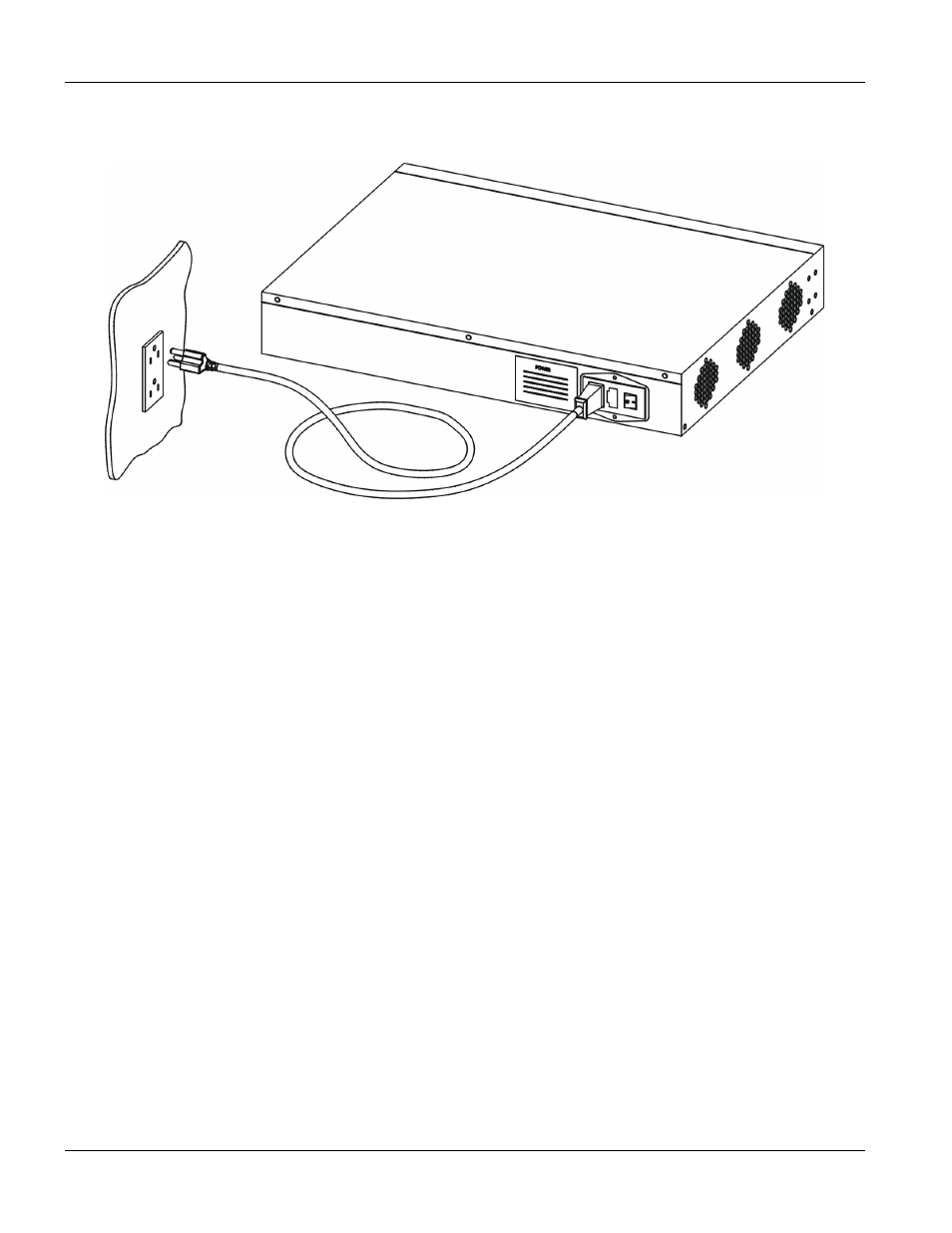

Figure 2-4 Connecting the Power Cord to the AES-100 and a Power Source
