Cascading Consoles
75
DM2000 Version 2—Owner’s Manual

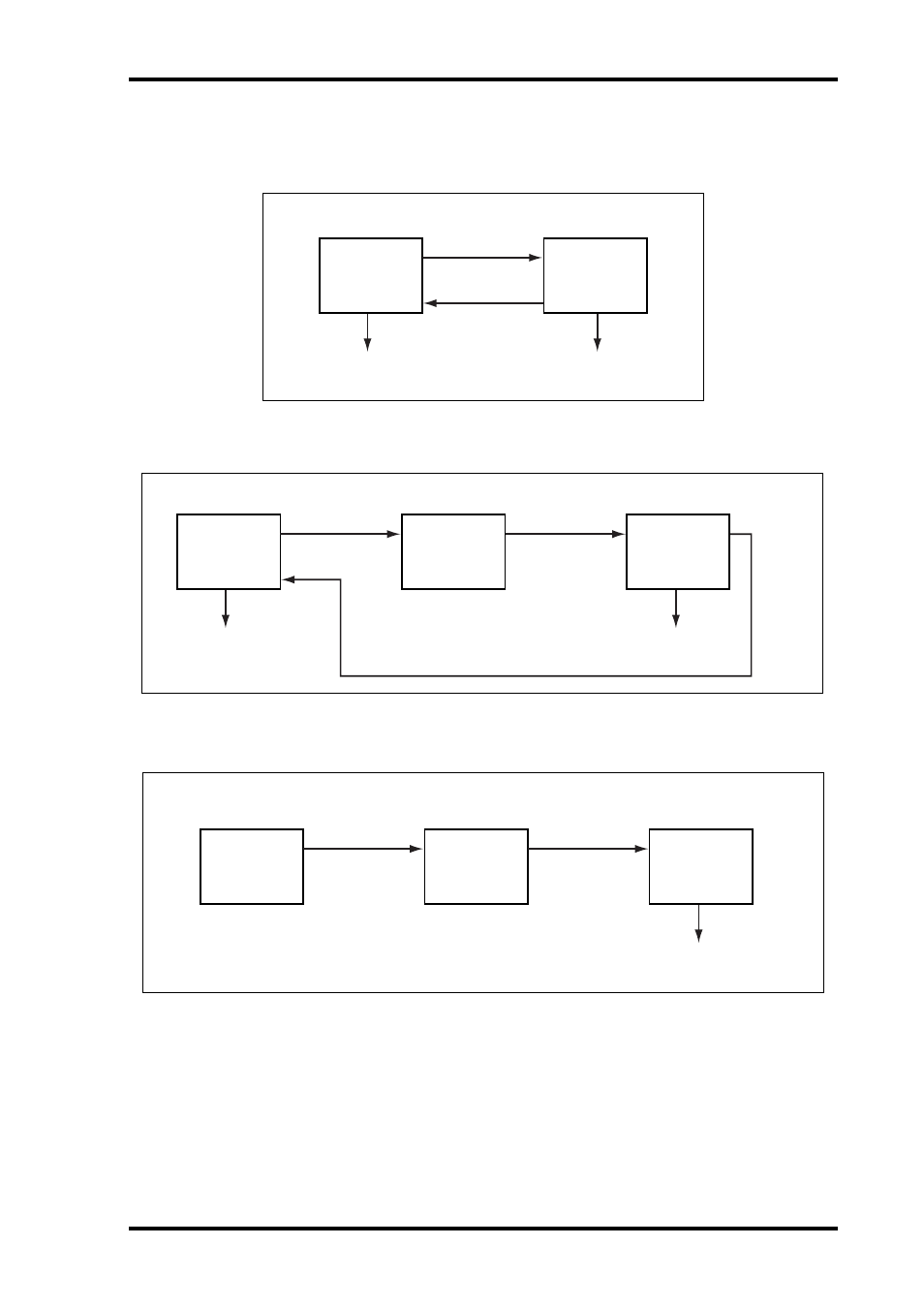

Cascade Hookup Examples
Cascading Two DM2000s
Cascading Three or More DM2000s
Cascading an 02R Digital Recording Console
DM2000 #1 DM2000 #2 CASCADE IN
CASCADE OUT
CASCADE OUT
CASCADE IN
Master: Off
Bi-directional: –
Final signals can be output by
the Slot Outputs or Omni Outs.
Final signals can be output by
the Slot Outputs or Omni Outs.
Master: On
Bi-directional: On
DM2000 #1 DM2000 #2/3 DM2000 #4 CASCADE IN
CASCADE OUT
CASCADE IN
CASCADE OUT CASCADE OUT
CASCADE IN
Master: Off
Bi-directional: –
Final signals can be output by
the Slot Outputs or Omni Outs.
Master: Off
Bi-directional: – Master: On
Bi-directional: On
Final signals can be output by
the Slot Outputs or Omni Outs.
02R DM2000 #1/2 DM2000 #3 CASCADE IN
CASCADE OUT
CASCADE IN
CASCADE OUT
Master: On
Bi-directional: Off
Final signals can be output by
the Slot Outputs or Omni Outs.
Aux Sends 9–12 are cascaded
between the DM2000s only.
Master: Off
Bi-directional: –
Cascade In from: 02R
