Color Calibration Process for v1.1.6 Software Xerox 490/980 Color Continuous Feed Printing System
5-8 Color Management Guide
23. Select the [Color] tab.

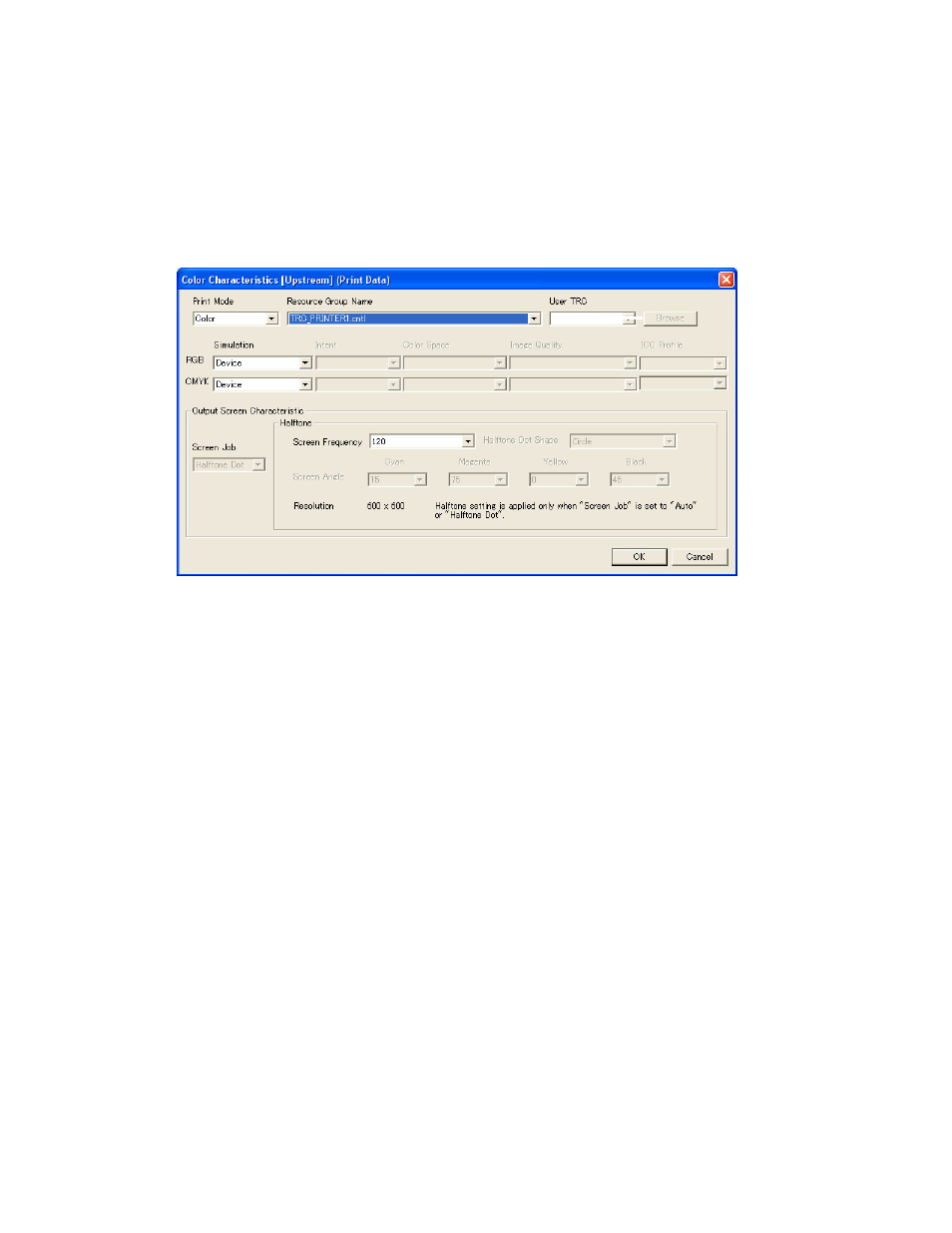

24. In the Color Characteristics (Upstream) box, in the Printer Name drop-down menu select
[PRINTER1], then select [Setting].
25. In the Resource Group Name drop-down menu, select [TRC_PRINTER1.cntl].
26. For both RGB and CMYK under the Simulation drop-down menus, ensure [Device] is
selected.
27. Select [OK].
28. In the Color Characteristics (Upstream) box, in the Printer Name drop-down menu select
[PRINTER2], then select [Setting].
29. In the Resource Group Name drop-down menu, select [TRC_PRINTER2.cntl].
30. For both RGB and CMYK under the Simulation drop-down menus, ensure [Device] is
selected.
31. Select [OK]
