Xerox 490/980 Color Continuous Feed Printing System Color Calibration Process for v1.1.6 Software
Color Management Guide 5-7

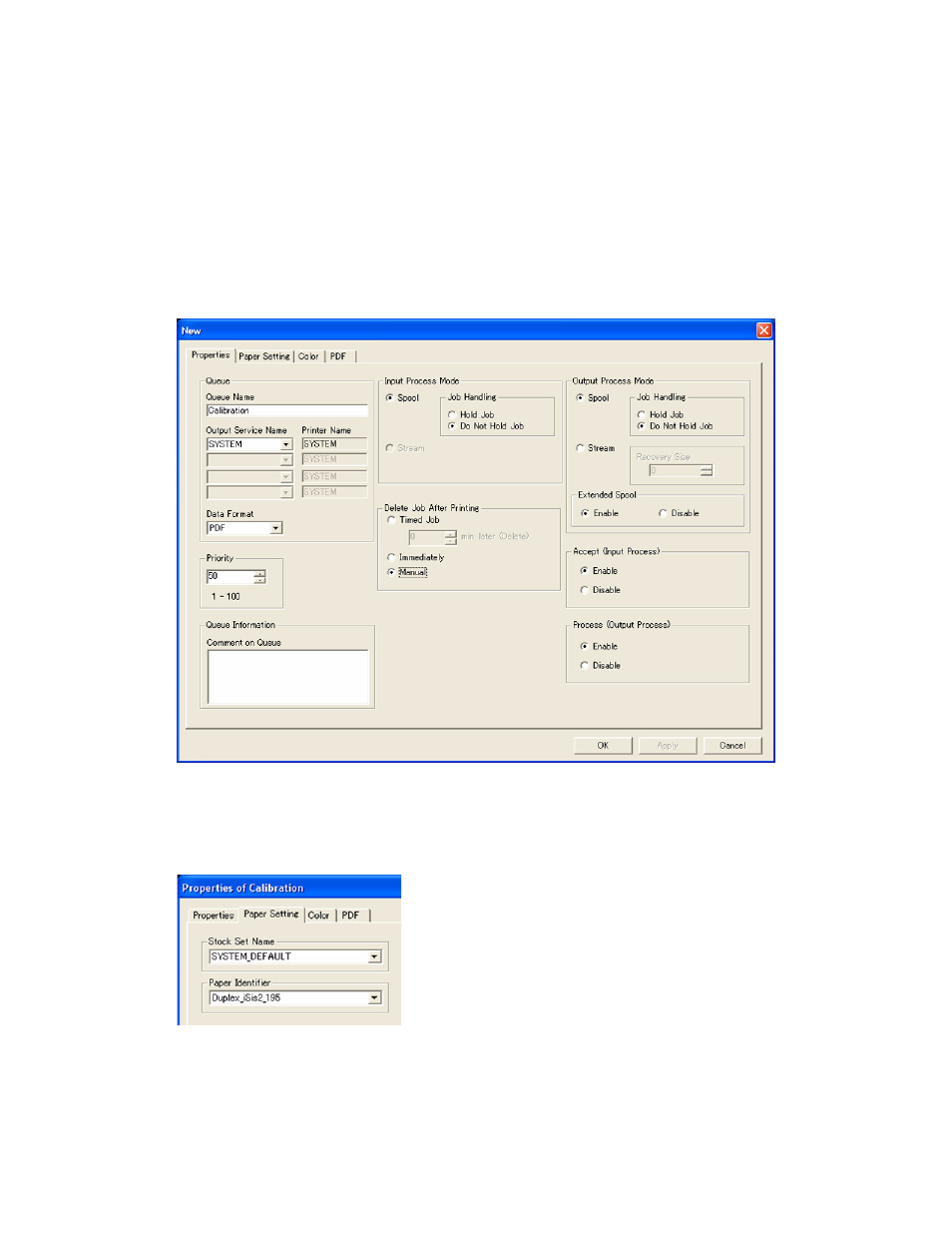

11. On the left-side navigation pane of the Xerox 490/980 Color Continuous Feed Printing
System PC-UI, select [Queue Management].
12. Select [New] at the bottom right of the window.
13. In the Queue Name field, type [Calibration].
14. In the Data Format drop-down menu, select [PDF].
15. In the Delete Job After Printing box, select the [Manual] radio button.
16. For Input Process Mode, select the [Spool] and [Do Not Hold Job] radio buttons.
17. For Output Process Mode, select the [Spool] and [Do Not Hold Job] radio buttons.
18. In the Extended Spool box, select the [Enable] radio button.
19. Select the [Paper Setting] tab.
20. For Stock Set Name, select [ColorCal].
21. A popup window will appear asking for you to specify the paper identifier. Select [OK].
22. In the Paper Identifier drop-down menu, select [Duplex_iSis2_195].
