Color Calibration Process for v1.1.6 Software Xerox 490/980 Color Continuous Feed Printing System
5-4 Color Management Guide
23. Select the [Color] tab.

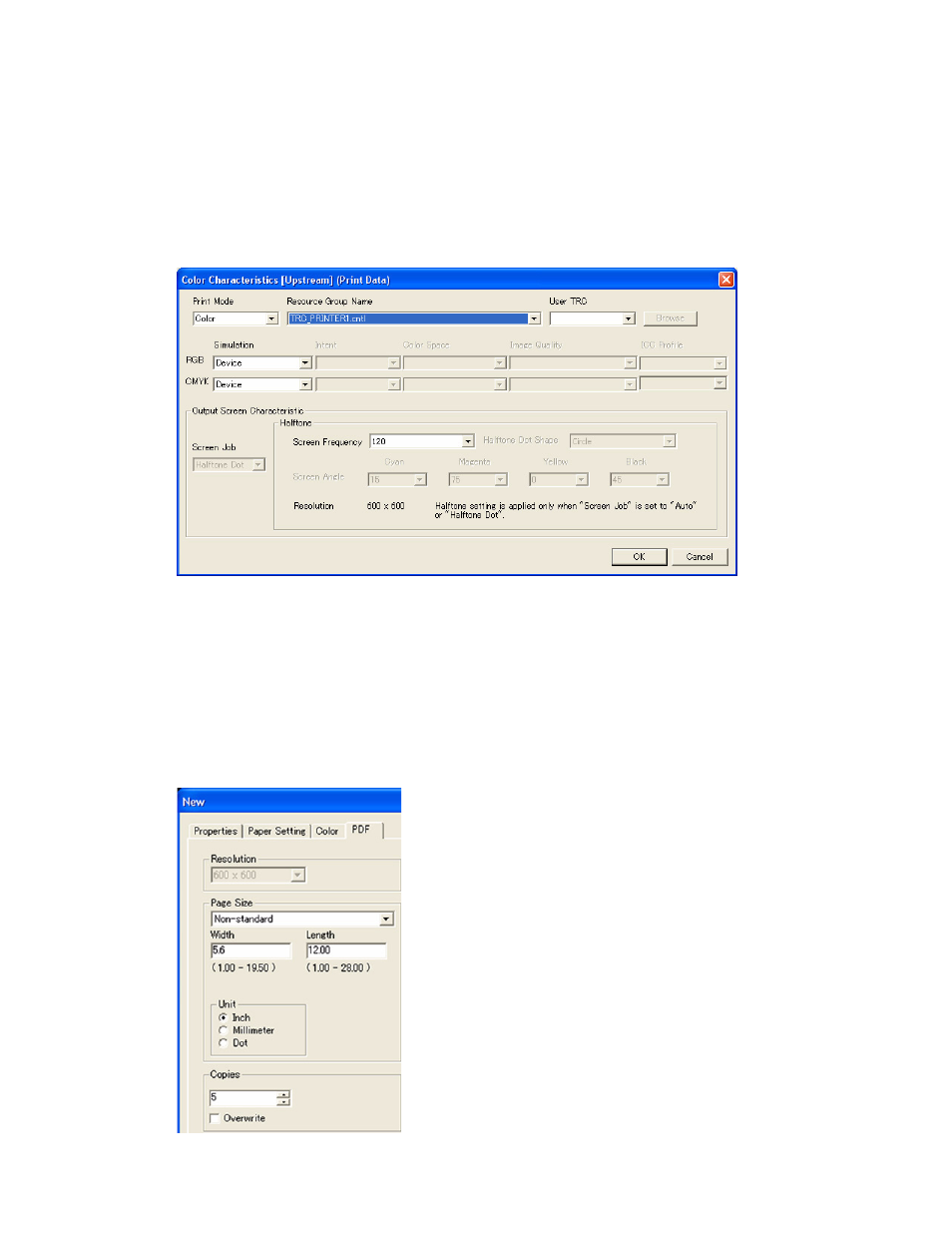

24. In the Color Characteristics (Upstream) box, in the Printer Name drop-down menu select
[PRINTER1], then select [Setting].
25. In the Resource Group Name drop-down menu, select [TRC_PRINTER1.cntl].
26. For both RGB and CMYK under the Simulation drop-down menus, ensure [Device] is
selected.
27. Select [OK].
28. Select the [PDF] tab.
29. In the Page Size drop-down menu, select [Non-standard].
Note
In the following step, while using Inches is recommended, it is not required. Millimeters are
also supported by this documentation.
30. For Unit, select [Inch].
31. In the Width field type [5.6] (142 mm). In the Length field type [12.00] (305 mm).
32. In the Copies field, type [5] and select [OK].
