Xerox 490/980 Color Continuous Feed Printing System Pre-Calibration Engine Density Adjustment
Color Management Guide 4-5

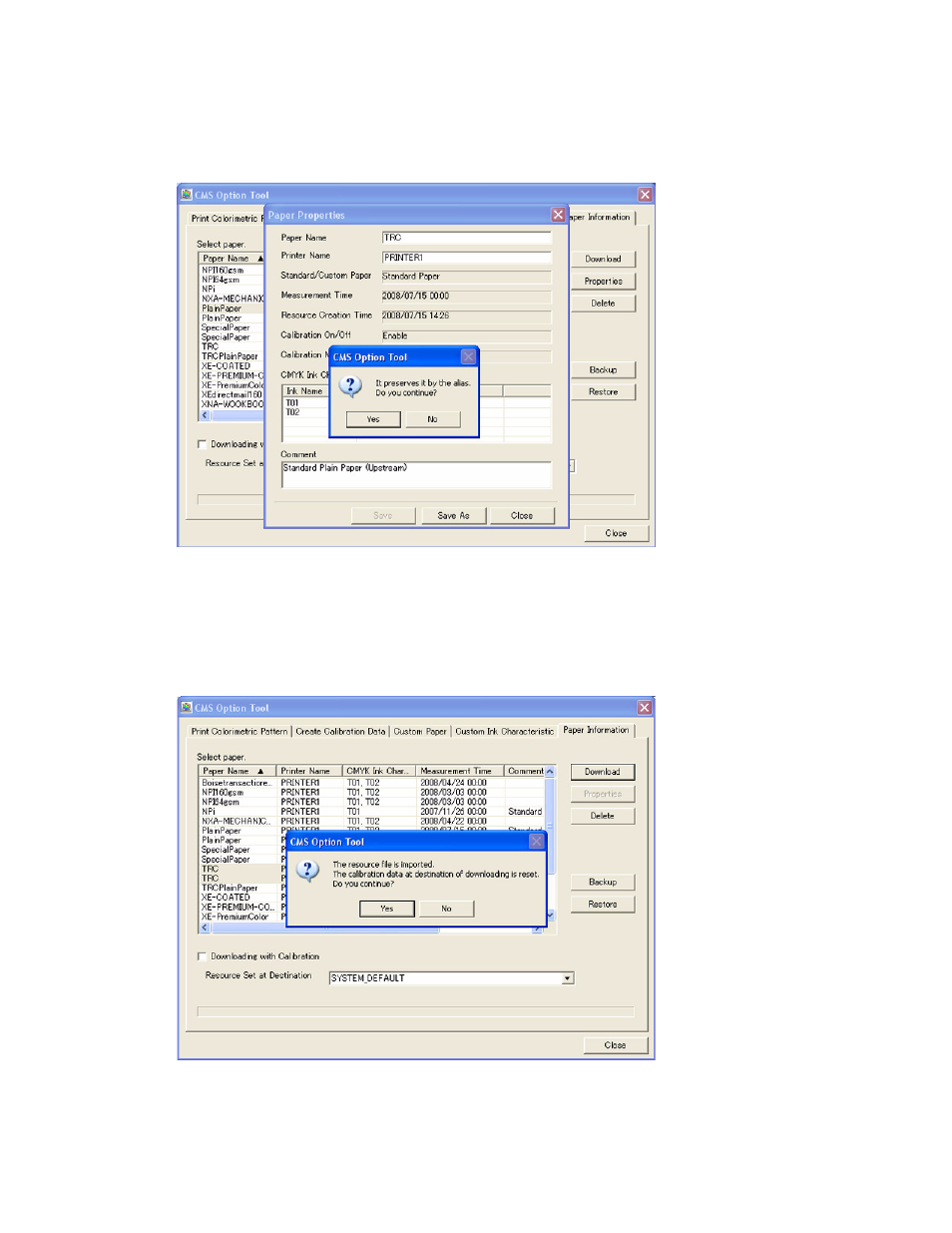

6. For the Paper Name field, type [TRC].
7. Select [Save As].
8. After the pop-up window appears, select [Yes].
9. Under the Paper Name field, select [Plain Paper] for PRINTER2 and repeat steps 4-8 of this
procedure.
10. Holding <CRTL> on the keyboard, select the Paper Name [TRC] for both PRINTER1 and
PRINTER2.
11. Select [Download].
12. After the pop-up window appears, select [Yes].
13. The message “Resource file Download process (Ended).” will appear at the lower part of the
window above the status bar.
14. Exit the CMS Option Tool by selecting [Close] located at the bottom right of the window.
