Prestige 2602H/HW Series User’s Guide
Chapter 21 Media Bandwidth Management Advanced Setup 267

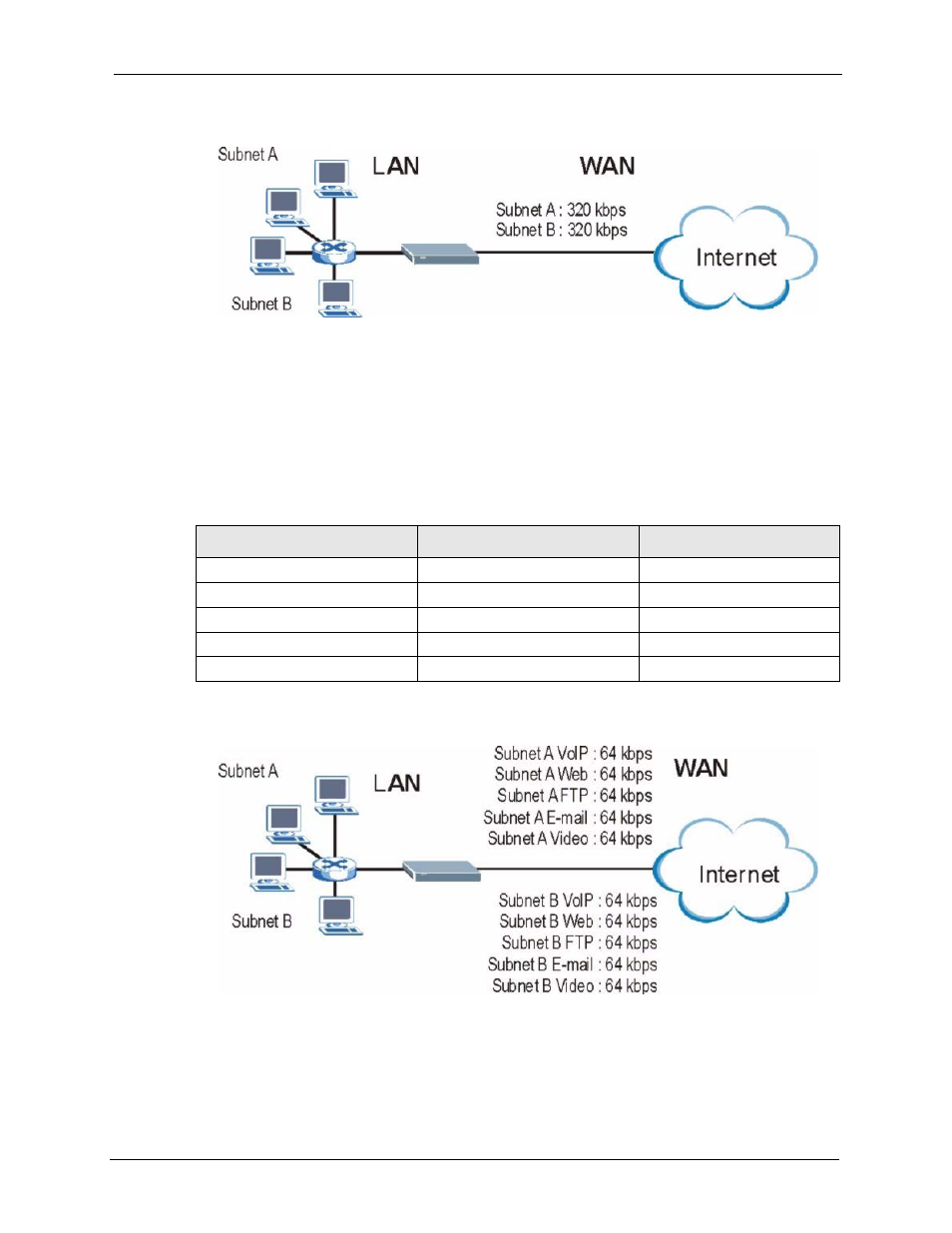

Figure 124 Subnet-based Bandwidth Management Example
21.4.3 Application and Subnet-based Bandwidth Management
Example
The following example uses bandwidth classes based on LAN subnets and applications
(specific applications in each subnet are allotted bandwidth).
Figure 125 Application and Subnet-based Bandwidth Management Example
Table 84 Application and Subnet-based Bandwidth Management Example
TRAFFIC TYPE FROM SUBNET A FROM SUBNET B
VoIP 64 kbps 64 kbps
Web 64 kbps 64 kbps
FTP 64 kbps 64 kbps
E-mail 64 kbps 64 kbps
Video 64 kbps 64 kbps
