Prestige 2602H/HW Series User’s Guide
Chapter 14 Firewall Configuration 187

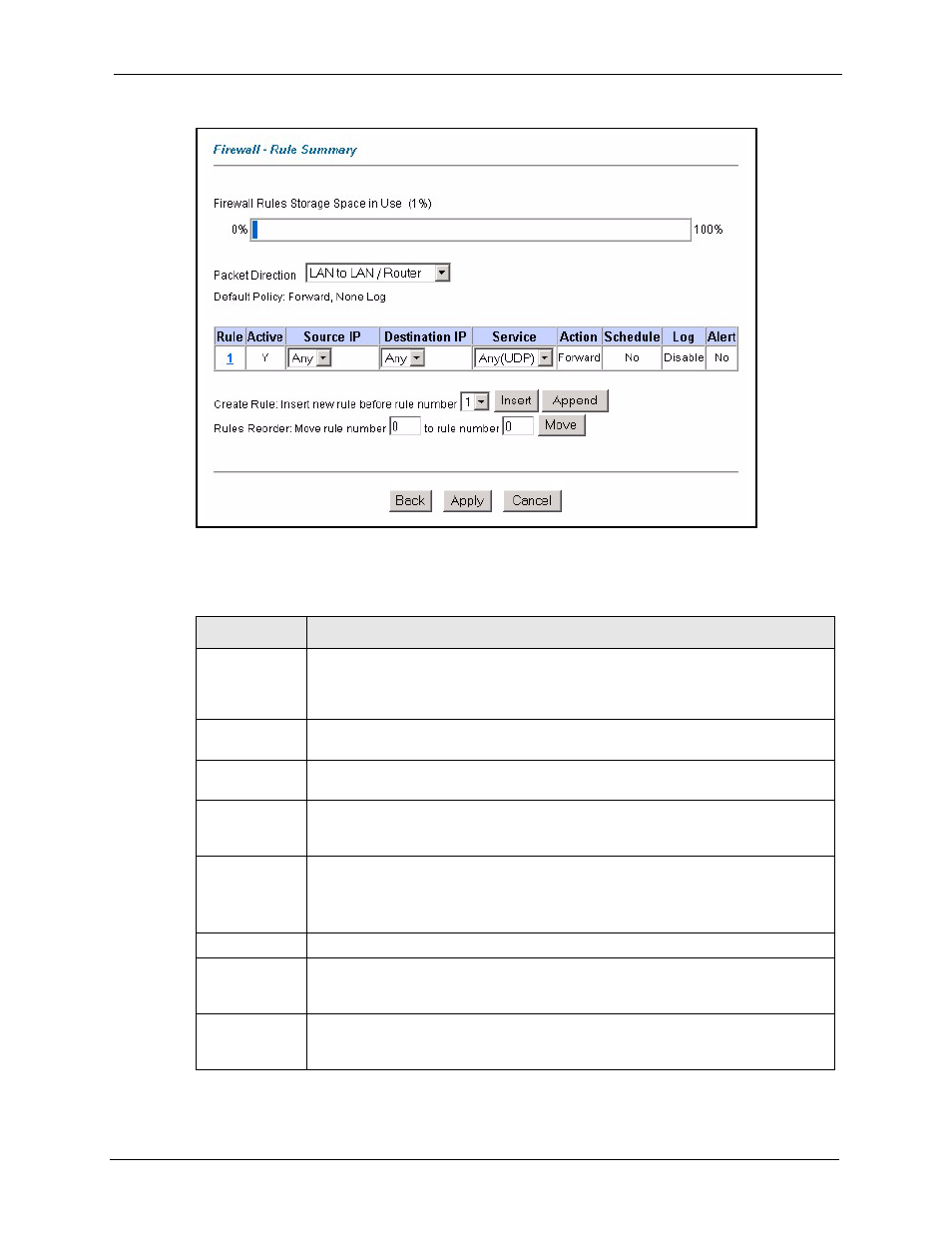

Figure 74 Firewall: Rule Summary
Table 55 Rule Summary
LABEL DESCRIPTION
Firewall Rules
Storage Space
in Use
This read-only bar shows how much of the Prestige's memory for recording firewall
rules it is currently using. The bar turns from green to red when the maximum is
being approached. When the bar is red, you should consider deleting unnecessary
firewall rules before adding more firewall rules.
Packet Direction Use the drop-down list box to select a direction of travel of packets for which you
want to configure firewall rules.
Default Policy This field displays the default action and log policy you selected in the Default Rule
screen for the packet direction shown in the field above.
The following read-only fields summarize the rules you have created that apply to
traffic traveling in the selected packet direction. The firewall rules that you configure
(summarized below) take priority over the general firewall action settings above.
Rule This is your firewall rule number. The ordering of your rules is important as rules are
applied in turn.
Click a rule’s number to go to the Firewall Edit Rule screen to configure or edit a
firewall rule.
Active This field displays whether a firewall is turned on (Y) or not (N).
Source IP This drop-down list box displays the source addresses or ranges of addresses to
which this firewall rule applies. Please note that a blank source or destination
address is equivalent to Any.
Destination IP This drop-down list box displays the destination addresses or ranges of addresses
to which this firewall rule applies. Please note that a blank source or destination
address is equivalent to Any.
