19.8 Bandwidth Management Rule Setup
You must use the Bandwidth Management Summary screen to enable bandwidth
management on an interface before you can configure rules for that interface.
Click Advanced > Bandwidth MGMT > Rule Setup to open the following screen.

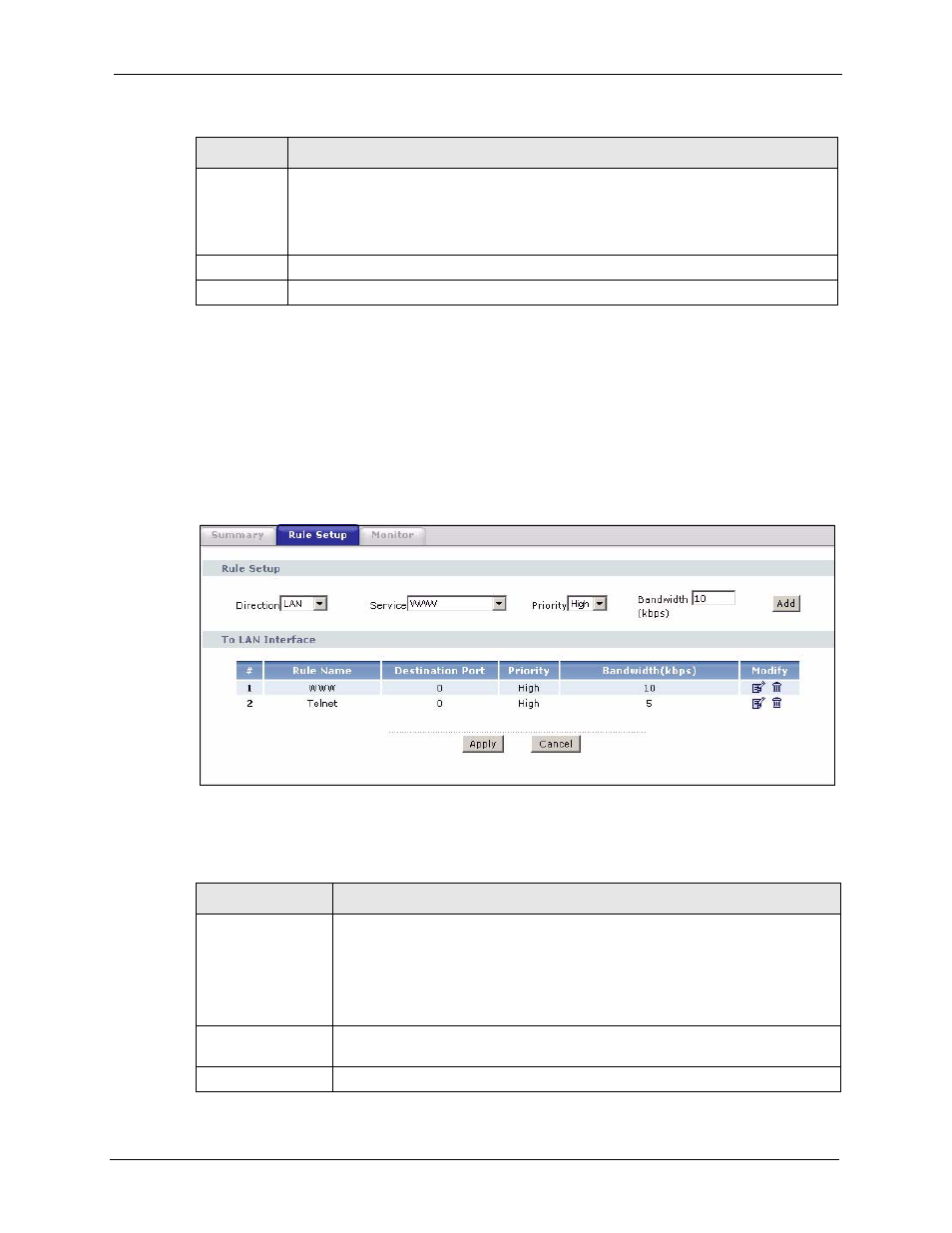

Figure 137 Bandwidth Management: Rule Setup
The following table describes the labels in this screen.
Max
Bandwidth
Usage
Select this check box to have the ZyXEL Device divide up all of the interface’s
unallocated and/or unused bandwidth among the bandwidth classes that require
bandwidth. Do not select this if you want to reserve bandwidth for traffic that does not
match a bandwidth class or you want to limit the transmission speed of this interface
(see the Speed field description).
Apply
Click Apply to save your settings back to the ZyXEL Device.
Cancel
Click Cancel to begin configuring this screen afresh.
Table 101 Media Bandwidth Management: Summary (continued)
LABEL
DESCRIPTION
Table 102 Bandwidth Management: Rule Setup
LABEL
DESCRIPTION
Direction
Select LAN to apply bandwidth management to traffic that the ZyXEL Device
forwards to the LAN.
Select WAN to apply bandwidth management to traffic that the ZyXEL Device
forwards to the WAN.
Select WLAN to apply bandwidth management to traffic that the ZyXEL Device
forwards to the WLAN.
Service
Select a service for your rule or you can select User define to go to the screen
where you can define your own.
Priority
Select a priority from the drop down list box. Choose High, Mid or Low.
