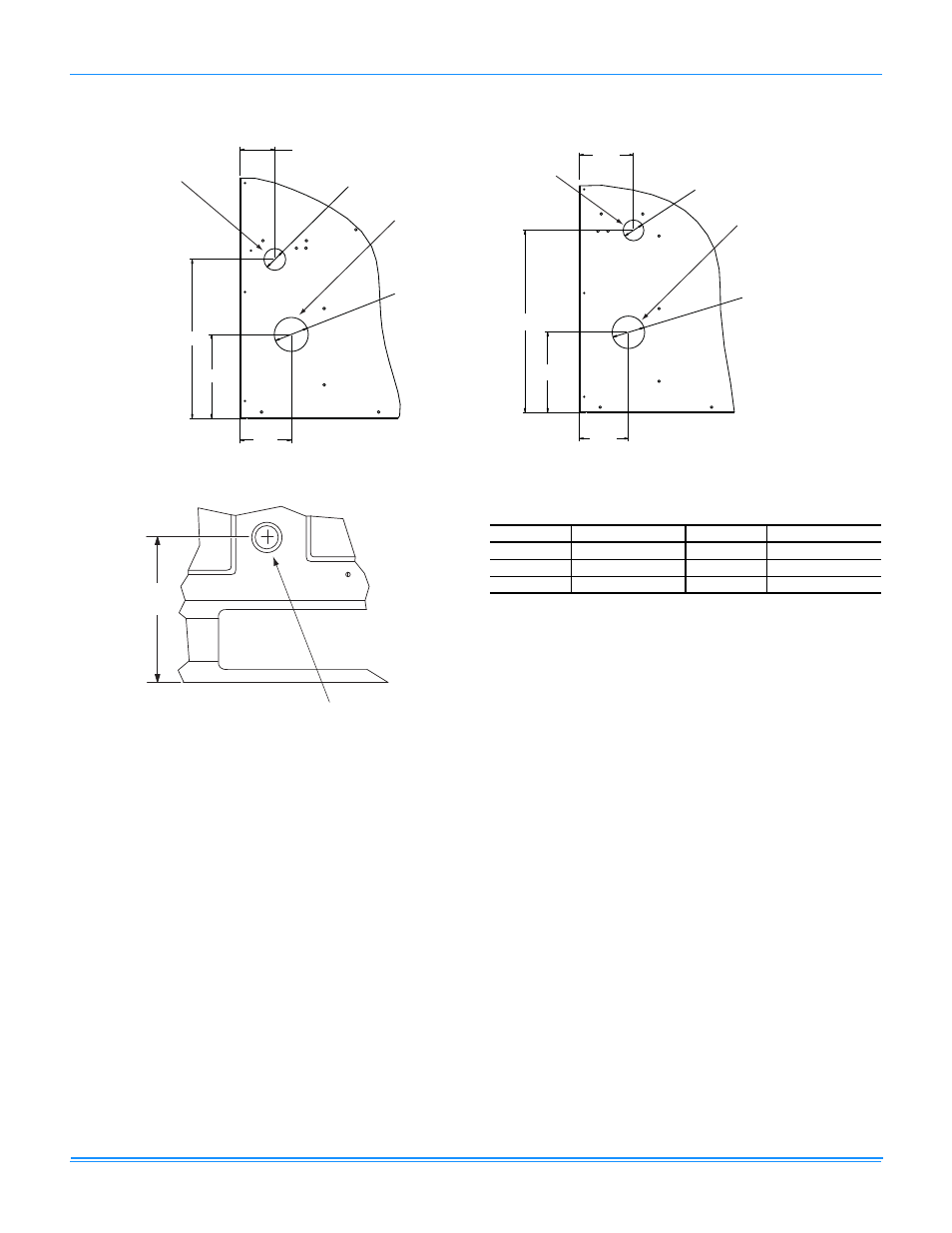

Detail A
Detail B
42” CABINET
Ш 3.126
Ш 2.000
3.184
4.727
7.705
14.594
Gas Pipe Inlet
Gas Exhaust Vent
50 3/4” CABINET
Ш 3.126
Ш 2.000
3.184
4.737
7.715
17.541
Gas Pipe Inlet
Gas Exhaust Vent
5-3/8
3/4” FPT
ZH/ZJ037-150 Unit Clearances
Direction Distance (in.) Direction Distance (in.)
Top 1
1. Units must be installed outdoors. Over hanging structure or
shrubs should not obscure condenser air discharge outlet.
72 Right 12
Front 36 Left 36
Rear 36 Bottom 2
2. Units may be installed on combustable floors made from
wood or class A, B or C roof covering materials.
0
