Zj150, Zh/zj037-150 unit physical dimensions – York PREDATOR R-410A User Manual

Page 126

background image

528150-YTG-C-1109

126

Johnson Controls Unitary Products

ZJ150

15.23

29.03

14.85

29.03

14.85

15.23

28.86

29.66

44.09

Ø 24.58 TYP. 4 PL.

FRONT

See detail B for drain location

See detail A for gas inlet

C

D

E

F

B

4 3/16

27 5/16

89

21 3/16

11 3/8

A

LEFT

59

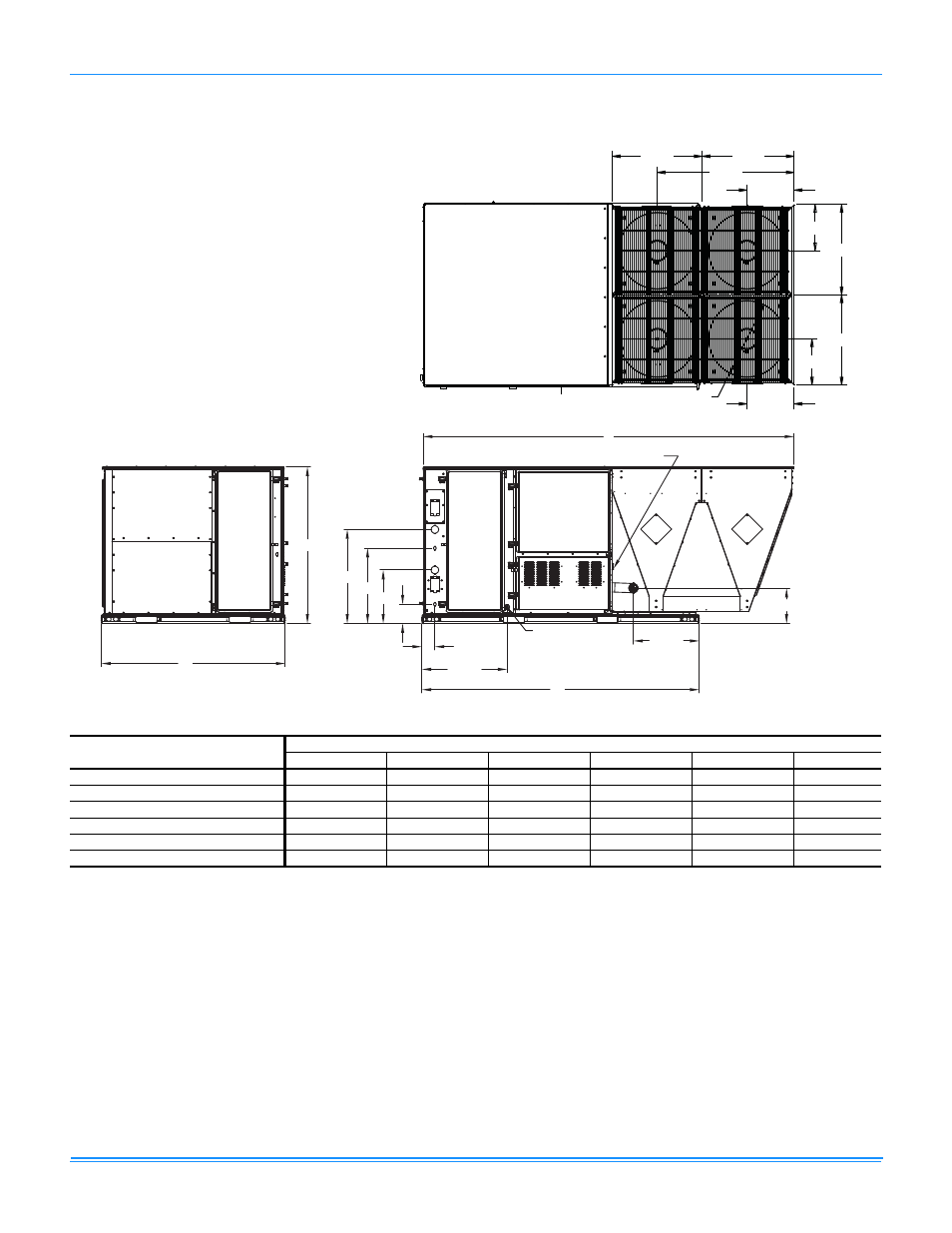

ZH/ZJ037-150 Unit Physical Dimensions

Unit Model Number

Dimension (in.)

A

B

C

D

E

F

ZH037, 049, 061, 078, 090

42

89

22 1/8

18 3/16

15 3/16

6 3/16

ZH102, 120

50 3/4

89

30 3/16

24 3/16

17 3/16

6 3/16

ZH150

50 3/4

119 1/2

30 3/16

24 3/16

17 3/16

6 3/16

ZJ037, 049, 061

42

89

22 1/8

18 3/16

15 3/16

6 3/16

ZJ078, 090, 102, 120

50 3/4

89

30 3/16

24 3/16

17 3/16

6 3/16

ZJ150

50 3/4

119 1/2

30 3/16

24 3/16

17 3/16

6 3/16
