R EPLACING THE ADF P AD A SSEMBLY
127
3. Pinch both sides of the housing inward, to release it from the scanner,
then remove it from the slot.
4. Pinch both sides of the ADF pad inward, to release it from the scanner,
then remove it from the slot.
To replace the ADF pad assembly:
1. Take the ADF pad module out of the box.
2. Pinch both arms of the ADF pad inward and align the arms of the
ADF pad with the slots on the scanner.

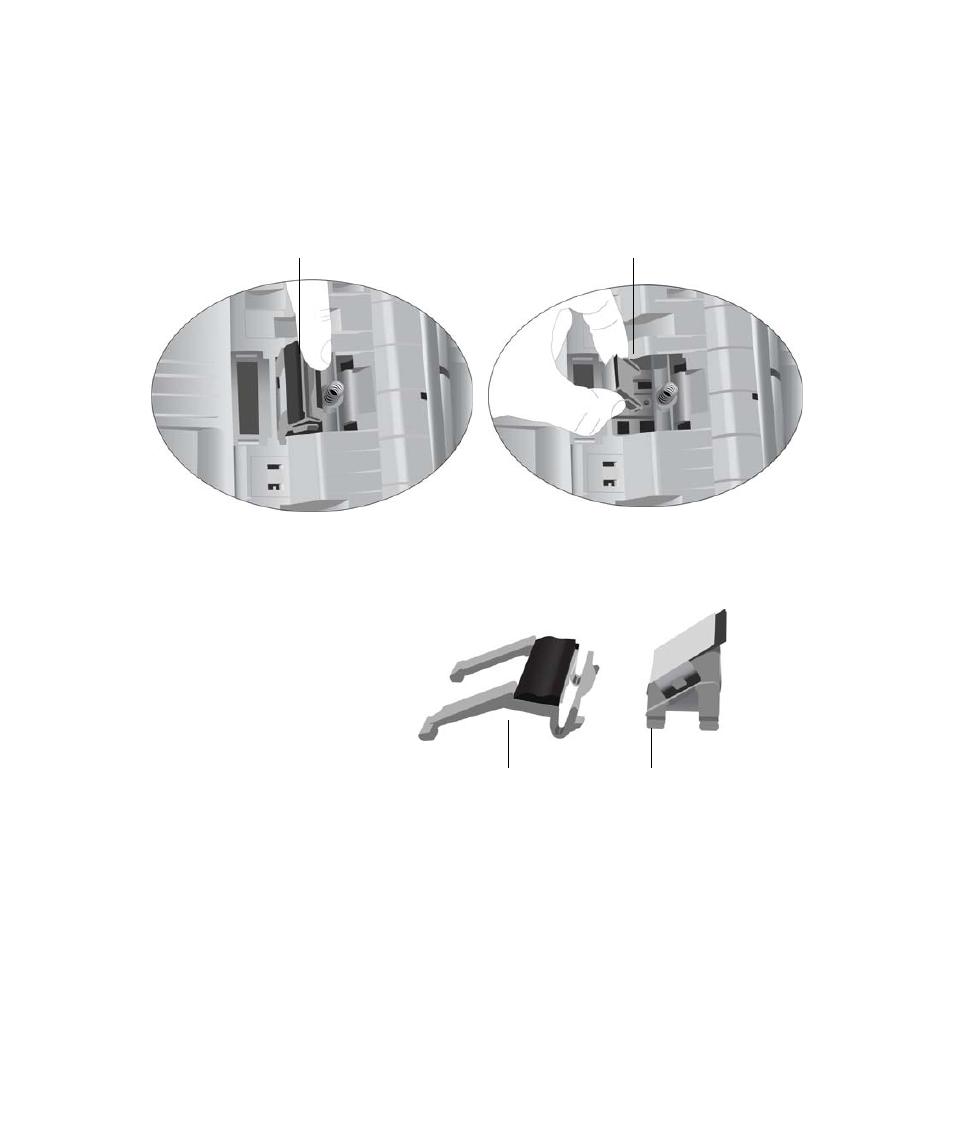

ADF Snap-in Pad Holder ADF Snap-in Pad
ADF Pad ADF Pad
Housing
