Communication
5–8
3255
4073–002
with an integral shielded cable on the external power supply. It is located at the
rear of the printer.
Cash Drawer Connector Pin Assignments

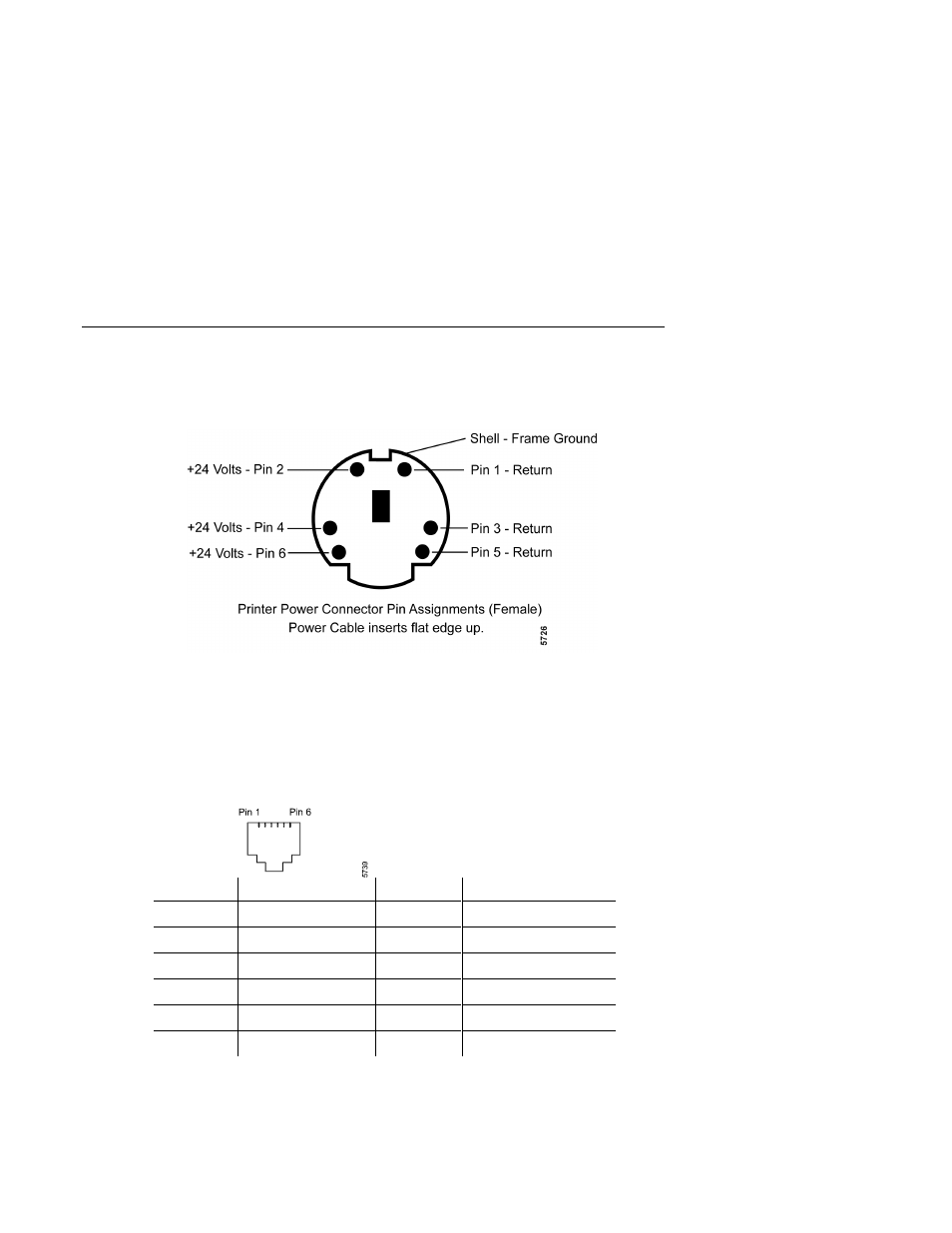

The following illustration shows the cash drawer connector and pin
assignments. The cash drawer connector is 6-pin modular jack and is located at
the rear of the printer. You may use one or two cash drawers. If you use two,
connect a split cable (y-cable) to use the same connector for both.
Pin Number
Signal
Direction
Note
1 Frame
Ground
2
Drawer Drive 1
Output
Drawer Solenoid 1-
3
Drawer Status
Input
Drawer Switch
4
+24 V +/- 5%
Output
Drawer Solenoid +
5
Drawer Drive 2
Output
Drawer Solenoid 2-
6
Logic Ground
Drawer Switch
