Introduction (continued)
Supported Browsers
Components
Supported browsers for users that remotely log into the B064-Series
KVM Switches include:
Browser Version
Internet Explorer* 6 and higher
Firefox 1.5 and higher
Mozilla 1.7 and higher
Safari 2.0 and higher
Opera 9.0 and higher
Netscape 8.1 and higher
* Internet Explorer 64-bit is not supported, only 32-bit.

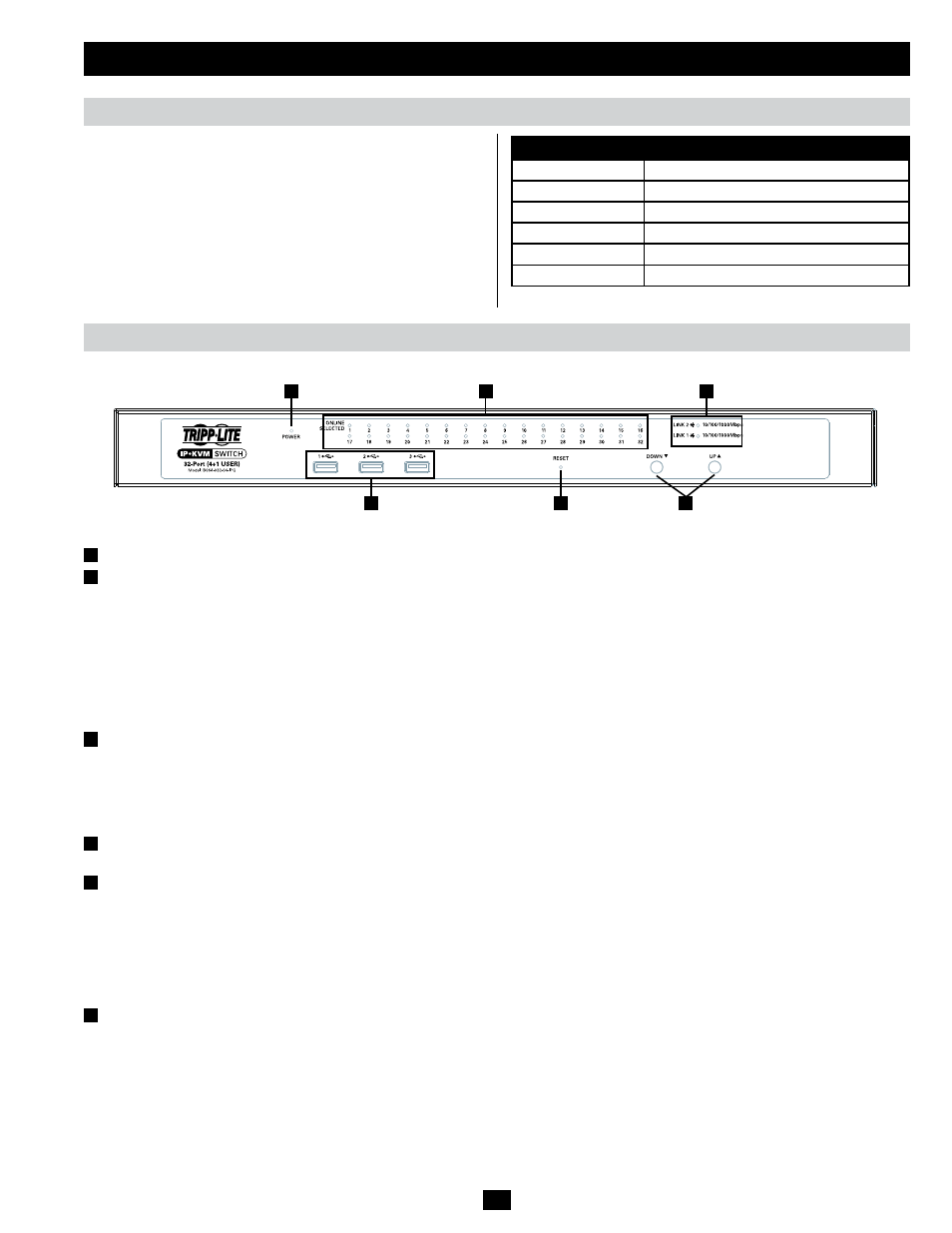

Front View
No . Component Description
1 Power LED Illuminates when the KVM switch is powered on
2 Port LEDs Port LEDs will illuminate in colors corresponding to the status of the port:
Green – Illuminate green when the corresponding port is connected and powered-on
Red – Illuminate red when the corresponding port is selected as having the KVM’s focus, but is either not
connected to a computer/server or is connected to a computer/server that is not powered-on
Orange – Illuminate orange when the corresponding port is connected, powered-on and selected as having the
KVM’s focus
Note: The Port LEDs are steady under normal conditions, but will flash at half second intervals when the
corresponding port is being accessed under Auto Scan Mode or Skip Mode.
3 LAN LEDs The Primary (Link 1) and Secondary (Link 2) LAN LEDs will illuminate in colors corresponding to the
network transfer rate:
Red – Illuminate red at speeds of 10 Mbps
Orange – Illuminate orange at speeds of 100 Mbps
Green – Illuminate green at speeds of 1000 Mbps
4 USB Ports Note: Only computers connected to the KVM by a B055-001-USB-V2 can access the KVMs Virtual Media
functionality
. Additional USB ports support external keyboard and mouse, as well as virtual media functionality.
5 Reset Switch Note: This recessed switch must be pushed with a thin object, such as the end of a paper clip or a ballpoint pen.
• Pressing and releasing the Reset Button when the KVM switch is running performs a system reset.
• Pressing and holding the Reset Button in for more than three seconds when the KVM switch is running resets
the switch configuration to the factory default settings. Note: This does not clear User Account information.
• Pressing and holding the Reset Button in while powering on the switch will restore the KVM switch to its
original firmware in the event of a firmware upgrade failure. Note: This operation should only be performed
in the event of a firmware upgrade failure that results in the device becoming inoperable.
6 Port Switching Buttons • Press the Port Down button to switch from the current port to the previous port on the installation.
• Press the Port Up button to switch from the current port to the next port on the installation.
Note: The figure shows the front panel of a B064-032-04-IPG. The B064-032-02-IPG, B064-016-02-IPG and B064-016-04-IPG contain all the
same front-panel features as the B064-032-04-IPG, except the B064-016-04-IPG and B064-016-02-IPG come with 16 ports instead of 32.
