TANDBERG ENTRYPOINT
USER GUIDE
The LCD panel makes it possible to configure
and check the IP settings as well as to reboot
the system. The front panel LCD menu items
are as follows:
The Entrypoint requires some basic
configurations before it can be used. It is
necessary to configure the IP-address and
to create the dial-in and dial-out services to
program the ISDN-PRI Line numbers.
As an alternative to the configuration via the LCD
panel you may use RS 232 to configure and the
system. This is treated on the previous page.

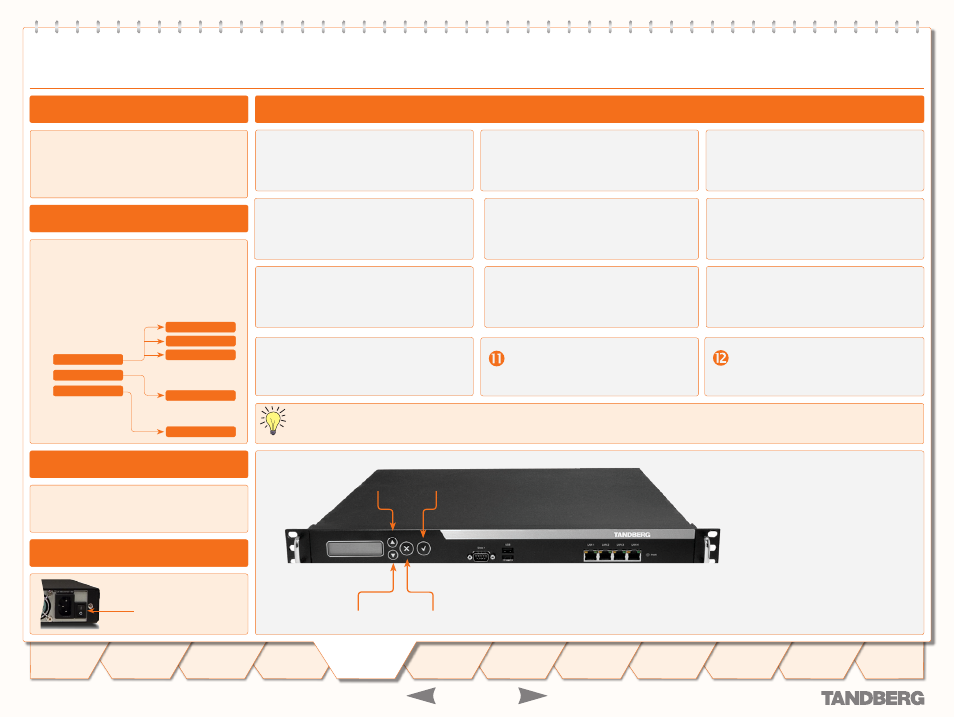

UP key
DOWN key ESC key
ENTER key
Configuring the IP Address via the Front Panel

Switch on and press any key to produce
the Main Menu . Use UP / DOWN to navigate
to the IP Settings , if needed.

Press ENTER to access the IP Settings
submenu.

Use the UP / DOWN keys to select IP
Address .

In addition to configure the IP address you
must also configure the default-gateway,
netmask and set IP assignment to static.

Press ENTER again to produce the
cursor.

Use UP / DOWN keys to navigate
between the digits of the number.

Use ENTER to enter Digit Altering Mode .

Use UP / DOWN to alter the digit value.

Press ENTER as many times as needed
to move to the next digit to be altered
and alter this digit.

When finished editing use ESC to go to
the Confirm change menu.
Use the UP / DOWN key to select yes or
no and ENTER to confirm.
Use ESC key to navigate back to the
main menu.
DHCP assigned IP-addresses are supported by the TANDBERG Entrypoint (factory default).
IP Settings
IP Information
Commands
IP Address
IP Netmask
IP Default GW
IP Address
Reboot
Main Menu
IP Settings
IP Information
Commands
Menu Hierarchy
Configuring the IP Address via the Front Panel
About Entrypoint Configuration
Configuring via the Front Panel
Power switch
Switching On the Unit
Configuration via RS 232
