2. PRINTER SETUP EO1-33030
2.10 Program Download
2- 24
2.10.4 Sensor Adjustments
(Cont.)
•
Adjustment Procedure
Reflective Sensor (Black Mark Sensor)
1. The reflective sensor is the one used to detect the black mark on the
back of certain types of print media. Place the media so that the
white part of the media (not the black mark) is positioned on the
sensor.

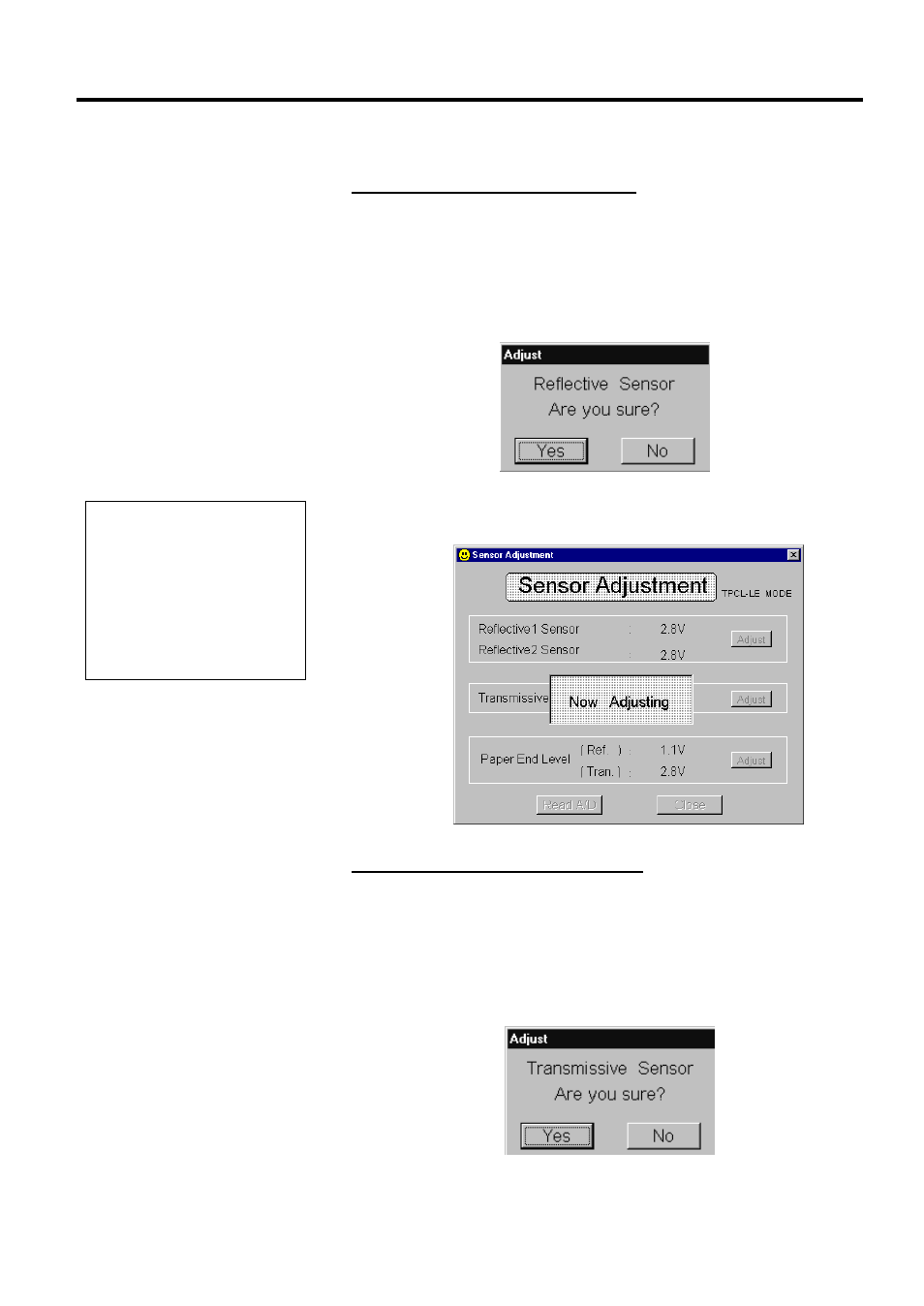

2. From the Sensor Adjustment menu shown on the previous screen,
click on the Adjust button for the reflective sensor. The screen
display shown in the figure below will appear.
3.
Click on the Yes button and the sensitivity of the reflective sensor
will automatically be set as indicated by the “Now Adjusting”
window appearing as shown in the figure below.
Transmissive Sensor (Feed Gap Sensor)
1. The transmissive sensor is the one used to detect the gap between
labels. It detects the transmission of light through the backing paper
of different opaqueness. Place the media so that the backing paper
(not the label) is positioned over the transmissive sensor.
2. From the Sensor Adjustment menu shown on the previous page,
click on the Adjust button for the transmissive sensor. The screen
display shown in the figure below will appear.
NOTE:
After completing an adjustment
to any of the sensors the
Adjust button will become
greyed out. However, it will
still be possible to make the
adjustment again even if the
Adjust button is greyed out.
