2. PRINTER SETUP EO1-33030
2.6 Opening/Closing the Media Cover
2- 5
2.6 Opening/Closing
the Media Cover
This section describes the opening and closing procedure of the Media
Cover. Follow the procedure when cleaning the print head, platen, paper
passage, or media sensor, or removing jammed paper.

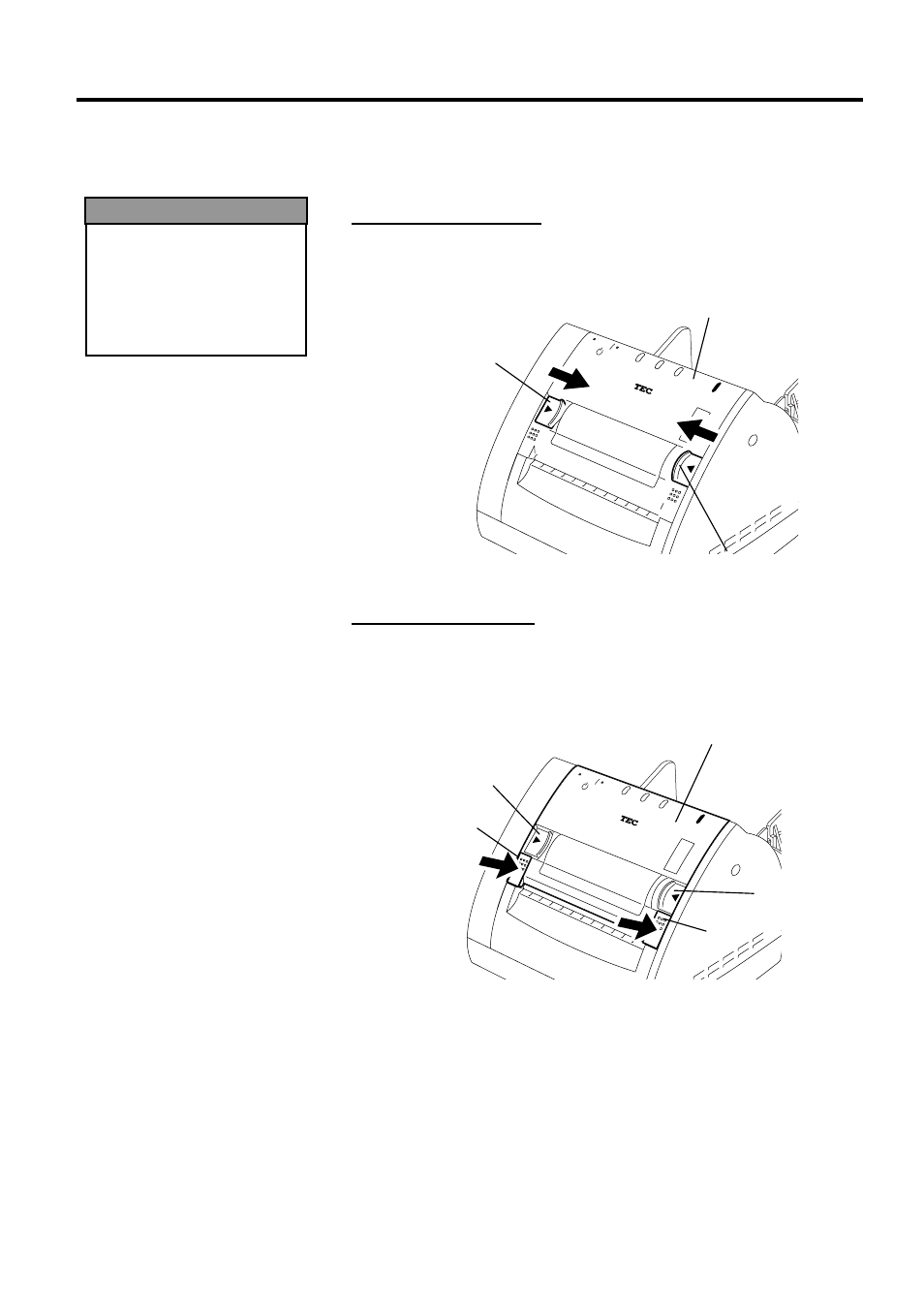

Opening the Media Cover
1. Release the Media Cover by pushing both sides of the Media Cover
Release Catches toward the center, and then open the Media Cover.
Closing the Media Cover
1.
Close the Media Cover by pressing portions (A) until they click.
2. Make sure that both Media Cover Release Catches are in position
and the Media Cover is locked.
Media Cover
Release Catch
The Media Cover should
be opened fully. Failure
to do this may cause the
Media Cover to close by
its weight, resulting in
injury.
Media Cover
Media Cover
Release Catch
Media Cover
Media Cover
Release Catch
(A)
WARNING!
(A)
Media Cover
Release Catch
