1. PRODUCT OVERVIEW EO1-33030
1.5 Appearance
1- 4

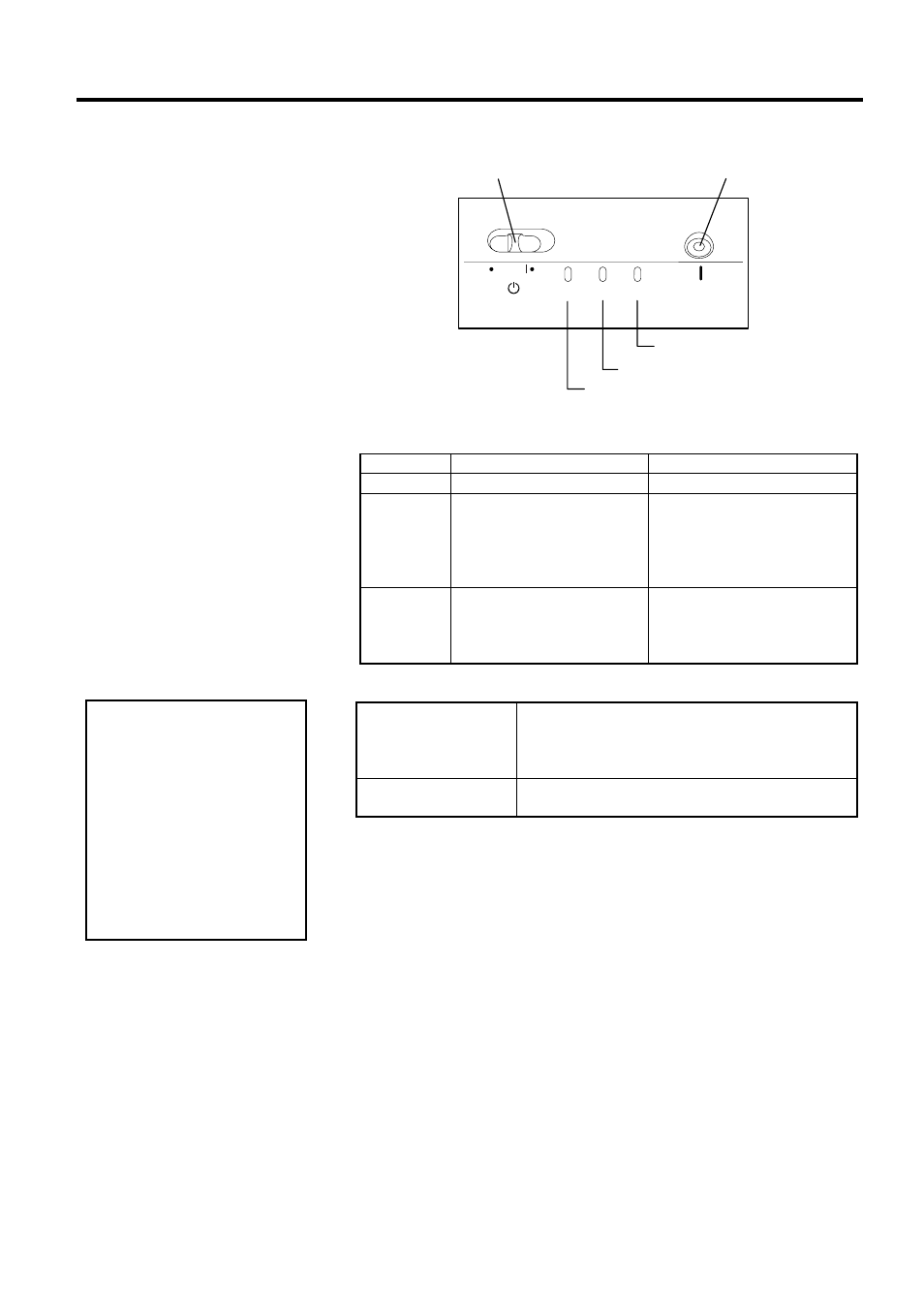

1.5.5 Operation Panel The figure below illustrates the Operation Panel and key functions.
There are three LED lights on the Operation Panel.
LED Illuminates when… Flashes when…
ON LINE The printer is turned on. -----
DATA
The printer is in operation.
(Goes off when in Idle.) Flashes fast when the printer
is communicating with the
PC.
Flashes slowly when the
print data remains.
ERROR
The print head has a
broken element. Paper feed jam, cover open,
communication error, etc.
occurs. For details, refer to
Section 4.1 LED State.
There are two switches on the Operation Panel.
STAND-BY Switch
A slide power switch. The power is turned ON
when the switch is positioned to the (
l ) side.
The power is turned OFF when the switch is
positioned to the other side.
FEED Button
Each time this button is pressed, the printer
feeds one piece of media.
ON LINE DATA ERROR FEED
Stand-by Switch
FEED Button
ERROR LED
ON LINE LED
DATA LED
CAUTION!
Even if the Stand-by
switch is turned off, the
primary power remains
ON, as this switch turns
on/off the secondary
power supply only.
When the printer is not
used for a long time,
disconnect the power cord
from the AC outlet.
