8

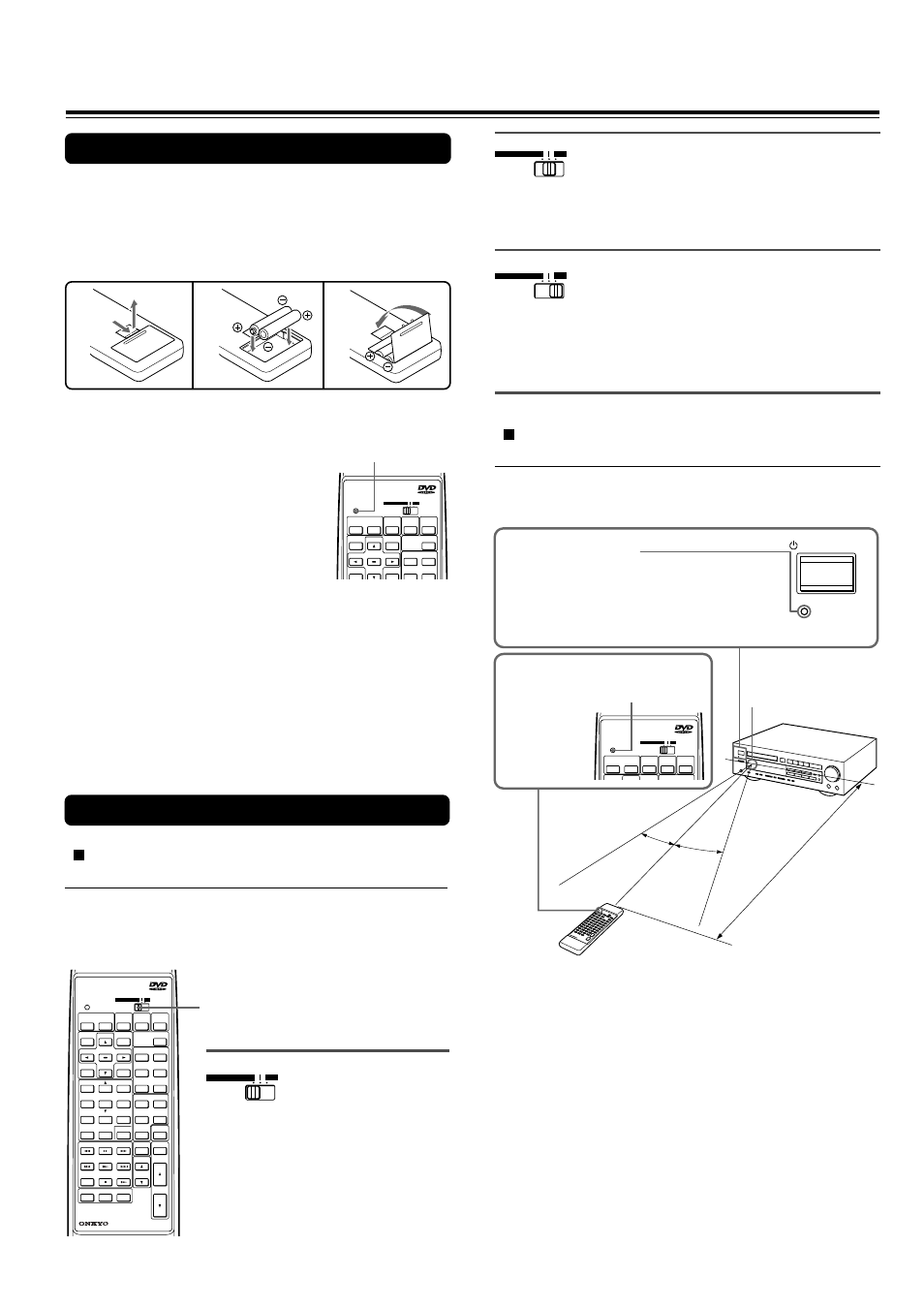

Preparing the Remote Controller
Inserting the Batteries
1 Detach the battery cover.
2 Insert the two R6 (size AA) batteries.
Be sure to match the + and – ends of the batteries with
the diagram inside the battery compartment.
3 Attach the battery cover.
Using the Remote Controller
Setting the DVD RECEIVER/LEVEL SETUP/
TV switch to the right position
Some buttons on the remote controller have two
functions. The DVD RECEIVER/LEVEL SETUP/TV
switch changes these functions as follows.
Notes
• When the batteries are getting weak,
the SENDING/LEARNED indicator on
the remote controller starts flashing. In
this case, replace the batteries with new
ones.
For the other functions of this indicator,
see “Pointing the remote controller in
the right direction” on the right, and
page 60.
• Do not mix new batteries with old batteries or different kinds
of batteries.
• To avoid corrosion, remove the batteries if the remote
controller is not to be used for a long time.
• Remove dead batteries immediately to avoid damage from
corrosion. If the remote controller does not operate smoothly,
replace both the batteries at the same time.
• The life of the batteries supplied is about six months but this
will vary depending on usage.
Pointing the remote controller in the right
direction
Point the remote controller toward the remote control
sensor.
Notes
• Place the unit away from strong light such as direct sunlight
or inverted fluorescent light which can prevent proper
operation of the remote controller.
• Using another remote controller of the same type in the
same room or using the unit near equipment which uses
infrared rays may cause operational interference.
• Do not put any object such as a book on the remote
controller. The buttons of the remote controller may be
pressed by mistake and drain the batteries.
• Make sure the audio rack doors do not have colored glass.
Placing the unit behind such doors may prevent proper
remote controller operation.
• If there is any obstacle between the remote controller and
the remote control sensor, the remote controller will not
operate.
DVD RECEIVER TV
LEVEL SETUP
DVD RECEIVER TV
LEVEL SETUP
DVD RECEIVER TV
LEVEL SETUP
Set the switch to LEVEL SETUP when adjusting each
speaker’s relative volume balance.
See pages 19 and 32.
Set the switch to TV when you wish to control your TV.
Before you start using this function, you need to copy
the signal patterns of the TV’s remote control buttons to
the DVD Receiver’s remote controller. See page 60.
1 2 3
SENDING/
LEARNED indicator
STANDBY indicator
(as remote control reception indicator)
The STANDBY indicator lights up when the DVD
Receiver receives a signal from the remote
controller. For the other functions of this indicator,
see page 17.
This indicator is lit
while any button
on the remote
controller is
pressed.
SENDING/
LEARNED
indicator
30˚
30˚
About 16 feet (5 m)
Remote control sensor
SENDING/
LEARNED DVD RECEIVER TV
LEVEL SETUP
TITLE MENU SURROUND MODE
DVD TV ENTER
RETURN SETUP VIDEO 1 TAPE
INPUT SELECTOR
DIMMER SLEEP DISPLAY ON STANDBY
POWER
DVD RECEIVER/LEVEL SETUP/TV
switch
Normally set the switch to DVD
RECEIVER.
Most of the operations can be used
when the switch is set to this position.
STANDBY/ ON
STANDBY
SENDING/
LEARNED
DVD RECEIVER TV
LEVEL SETUP
TITLE MENU SURROUND MODE
DIMMER SLEEP DISPLAY ON STANDBY
POWER
SENDING/
LEARNED DVD RECEIVER TV
LEVEL SETUP
TITLE MENU SURROUND MODE
DVD TV ENTER
RETURN
AUDIO
SEARCH
ANGLE ZOOM
CLEAR
TUNER
SETUP VIDEO 1 TAPE
VIDEO 2
INPUT SELECTOR
OPEN/ CLOSE
DIMMER SLEEP DISPLAY ON STANDBY
POWER
SUBTITLE
CH SEL
LEVEL TEST TONE
2 3 1
5 6 4
8 9 7
0 +10
MUTING
RANDOM
REPEAT A-B MEMORY VOLUME
PRESET
PAUSE FF
PLAY DOWN
STOP SLOW
UP
FR
CHANNEL TV/ VCR
POWER
REMOTE CONTROLLER RC-399M
