Index to Parts and Controls (continued)
AM FM
75
R
CENTER
SPEAKER
R
L
L
R L
L
SURROUND
SPEAKERS
FRONT SPEAKERS
(PLAY)
(REC)
OUT
MONITOR
OUT
I N
VIDEO
1
VIDEO 2
OUT
OUT
I N
I N
TV I N MONITOR
OUT
VIDEO 1
R
PRE OUT
TAPE / MD
CENTER SUBWOOFER
DIGITAL OUTPUT
COAXIAL VIDEO 2 Y C B C R OPTICAL VIDEO 1
DIGITAL INPUT COMPONENT VIDEO OUTPUT S VIDEO
OPTICAL
I N
R L VIDEO
ANTENNA
A 1 5 6 9 0 7 8 2 34
D E F G H I J B C

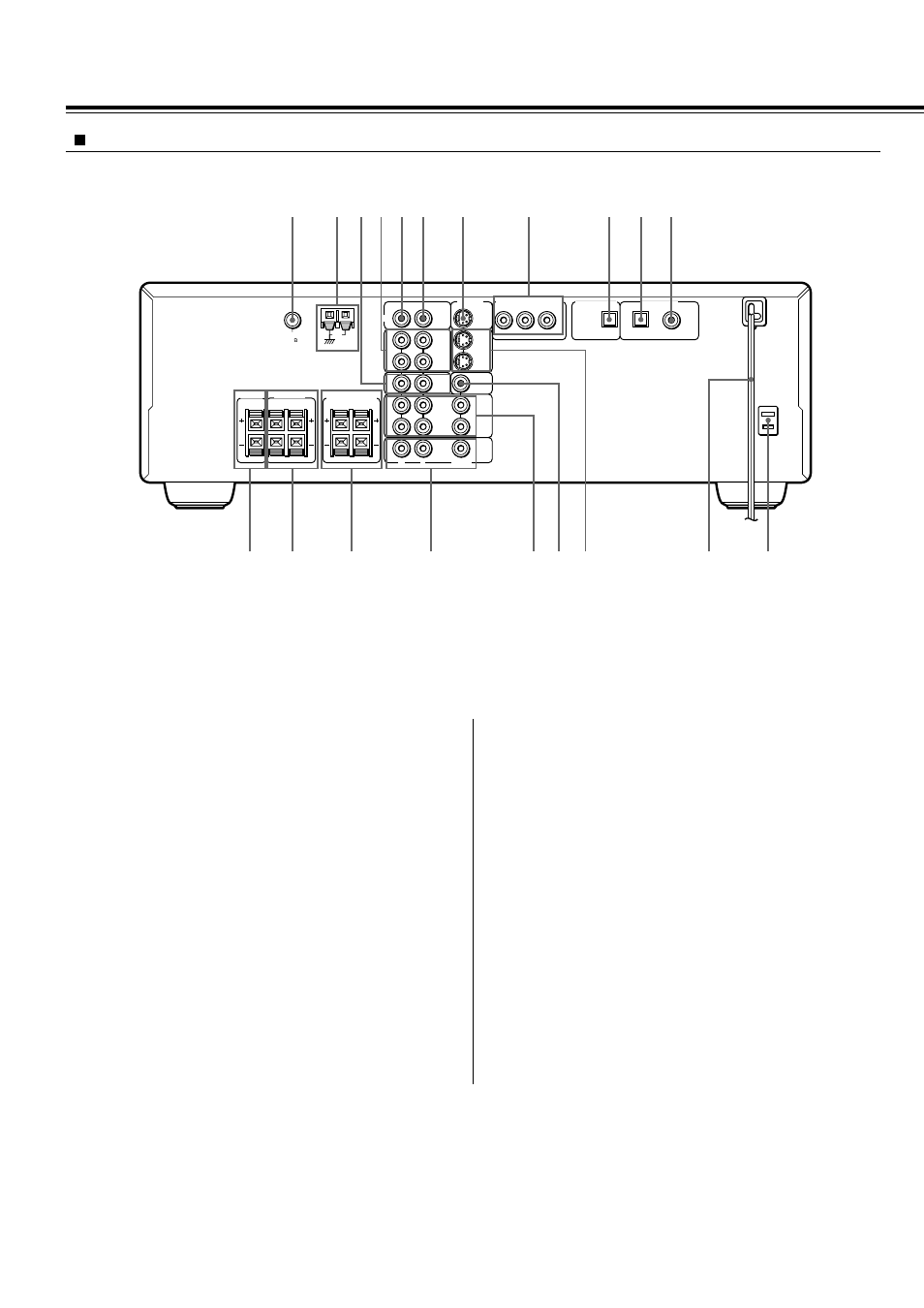

Rear Panel
1 FM ANTENNA connector [14]
2 AM ANTENNA connectors [14]
3 TV IN jacks [10]
4 TAPE/MD
IN (PLAY)/OUT (REC) jacks [11]
5 PRE OUT CENTER jack [10]
6 PRE OUT SUBWOOFER jack [12]
7 S-VIDEO MONITOR OUT jack [10]
8 COMPONENT VIDEO OUTPUT Y/C B /C R jacks [10]
9 DIGITAL OUTPUT OPTICAL jack [11]
0 VIDEO 1
DIGITAL INPUT OPTICAL jack [11]
A VIDEO 2
DIGITAL INPUT COAXIAL jack [11]
B CENTER SPEAKER connectors [12]
C SURROUND SPEAKERS connectors [12]
D FRONT SPEAKERS connectors [12]
E VIDEO 2
IN jacks [11]
F VIDEO 1
OUT/IN jacks [11]
G MONITOR OUT jack [10]
H VIDEO 1
(S video) OUT/IN jacks [11]
I Power cord [17]
J AC outlet [16]
