Onkyo DR-90 - Manual (Page 15)

15 15
Getting Star
ted

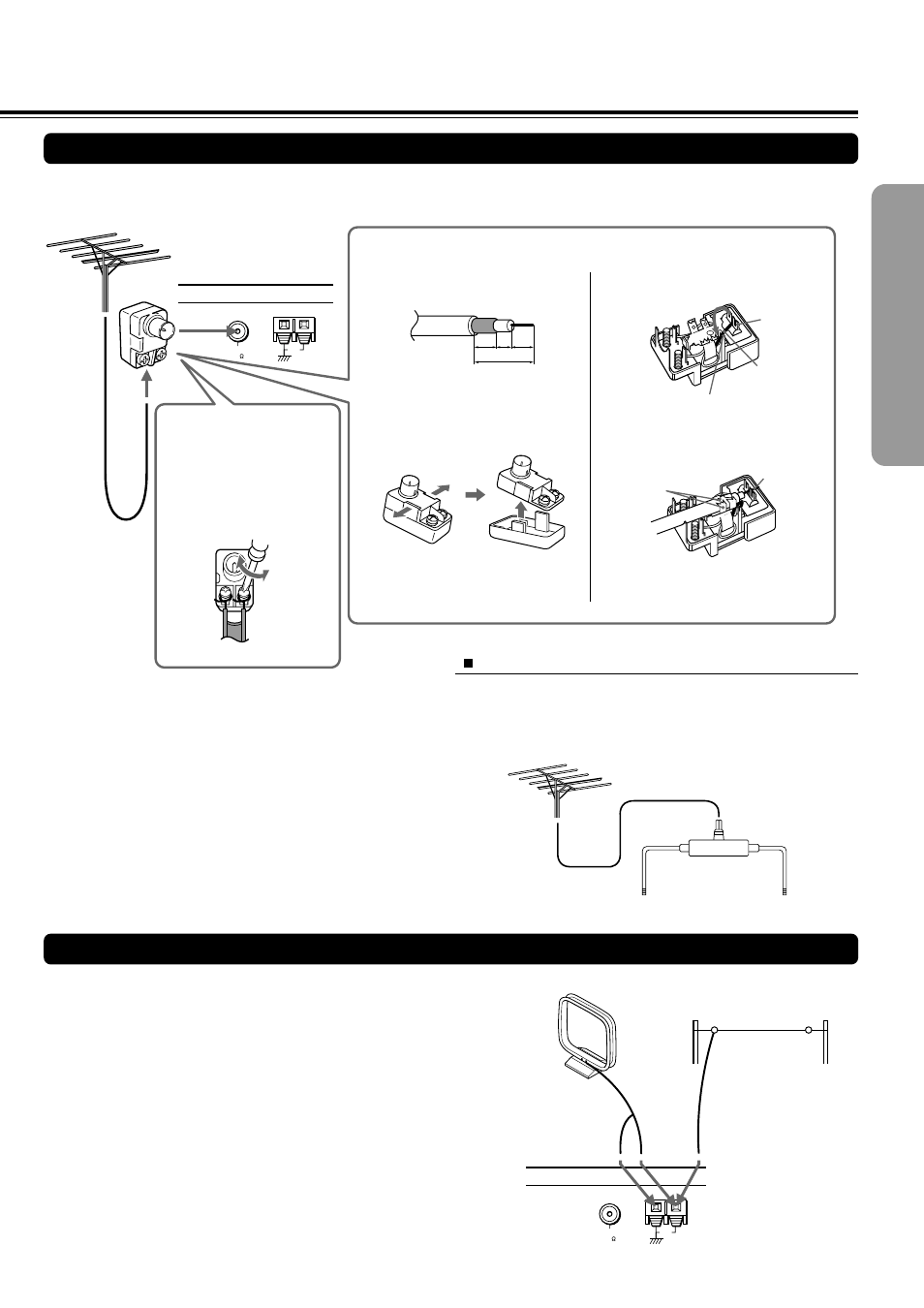

Connecting FM Outdoor Antenna
If the FM reception is not very clear with the supplied antenna, connect the outdoor FM outdoor antenna instead of FM indoor
antenna.
FM outdoor antenna
Connecting 300 ohm
ribbon wire to a 75/300
ohm antenna adapter
Loosen the screws and wrap
the wire around these
screws. Then tighten the
screws with a screwdriver.
Notes
• Keep the antenna away from noise sources (neon signs, busy roads,
etc.).
• It is dangerous to put the antenna close to power lines. Keep it well
away from power lines, transformers, etc.
• To avoid the risk of lightning and electrical shock, grounding is
necessary. Follow item 19 of the "Important Safeguards" on page 2
when you install the outdoor antenna.
Connecting coaxial cable to a 75/300 ohm antenna adapter
3 Remove the transformer wire A
from slit B and insert it into slit C.
4 Insert the end of the cable.
5 Clamp it in place with pliers.
6 Reinstall the cover.
4
5
Directional Iinkage
Do not use the same antenna for both FM and TV (or VCR)
reception since the FM and TV (or VCR) signals can interfere
with each other. If you must use a common FM/TV (or VCR)
antenna, use a directional linkage type splitter.
Connecting an AM Outdoor Antenna
The outdoor antenna will be more effective if it is stretched
horizontally above a window or outside.
Leave the supplied AM indoor antenna connected.
Note
To avoid the risk of lightning and electrical shock, grounding is necessary.
Follow item 19 of the "Important Safeguards" on page 2 when you install
the outdoor antenna.
Tighten
Loosen
1 Strip the end of the coaxial cable.
2 With your fingernail or a small
screwdriver, press the stoppers
outward and remove the cover.
Slit B
Slit C
Wire A
Directional linkage
type splitter
To DVD Receiver To TV (or VCR)
Outdoor antenna
AM FM
75
ANTENNA
AM FM
75
ANTENNA
AM indoor antenna
8 / 5 in.
1 / 8
in.
1 / 4
in.
1 / 4
in.
