31

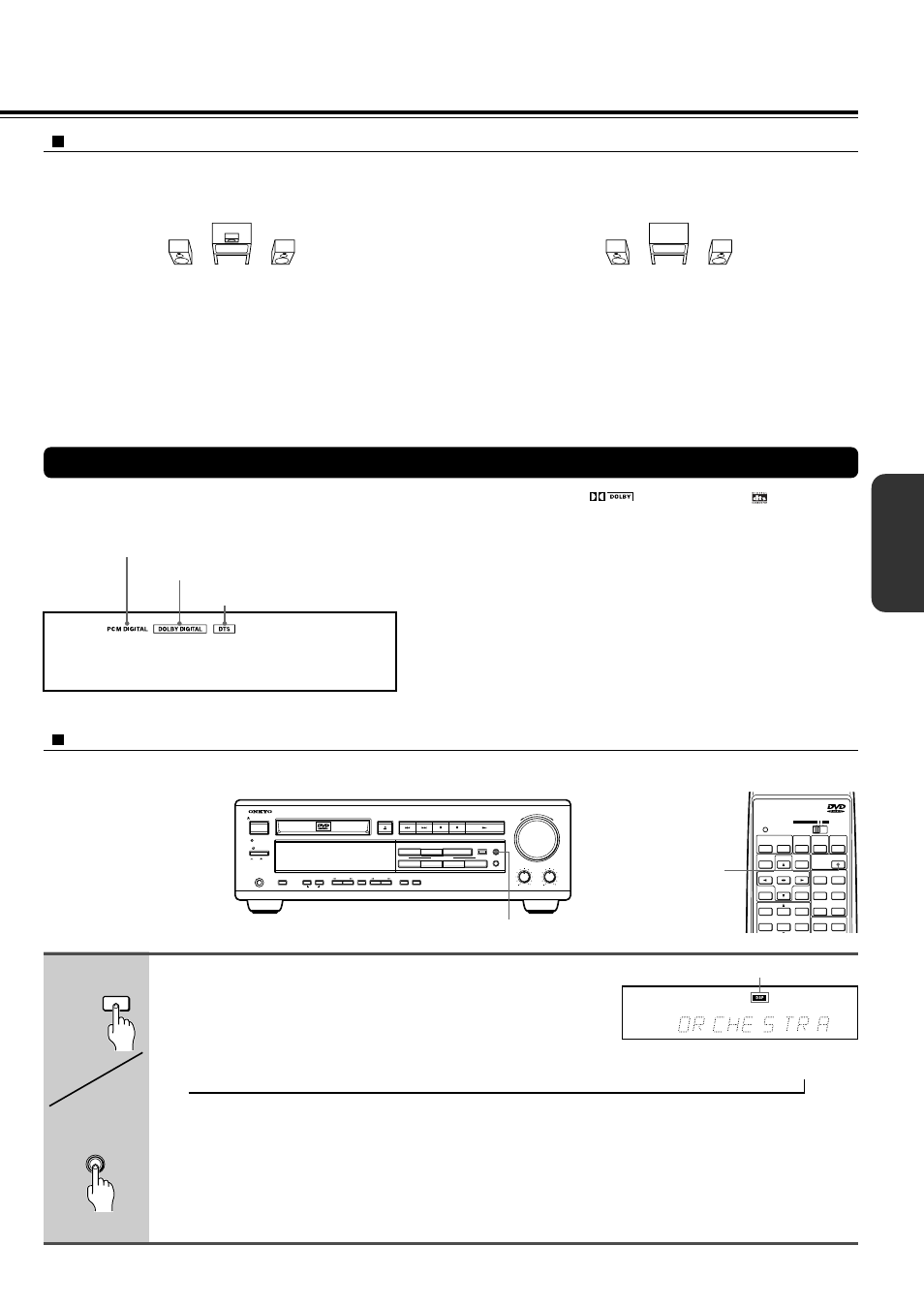

Basic Operation
(Continued on next page.)
Right front speaker Left front speaker
Center Speaker
When only the left, center, and right front speakers
are connected
The following modes are available:
DOLBY 3 STEREO
The surround channel sound is output from the left and right
front speakers.
STEREO
This is the normal stereo sound. The surround mode is
canceled.
Left front speaker Right front speaker
When only the left and right front speakers are
connected
Only STEREO is available. This is a normal stereo sound.
Available sound systems with limited speaker configurations
Changing the output sound signal format
of the DVD video/VIDEO CD/audio CD
You can change the format of the sound signal
being output via the speakers and output jacks
using the menu (see page 40).
This means, for example, even if DOLBY
DIGITAL Surround sound is played by the DVD
Receiver, you can output sound to the
speakers in the 48 kHz/16 bit format, which
enables you to use the DSP sound effects
below instead of DOLBY DIGITAL Surround.
D O W N U P
DISPLAY TUNING SPEAKER SETUP CH LEVEL ENTER PHONES
OFF ON
STANDBY/ ON
MODE
FM MUTE PRESET MEMORY
DOWN UP STOP PAUSE PLAY OPEN/CLOSE
TREBLE BASS
PRESET / MODE ADJ
MASTER VOLUME
POWER Re - EQ
SURROUND MODE
LATE NIGHT INPUT SELECTOR
STANDBY
F M A M T V TAPE/MD
VIDEO 1 VIDEO 2 DVD
SENDING/
LEARNED
DVD RECEIVER TV
LEVEL SETUP
TITLE MENU SURROUND MODE
DVD TV ENTER
RETURN
AUDIO
TUNER
SETUP VIDEO 1 TAPE
VIDEO 2
INPUT SELECTOR
DIMMER SLEEP DISPLAY ON STANDBY
POWER
SUBTITLE
CH SEL
LEVEL TEST TONE
2 3 1
5 6 4
DSP indicator
Selecting the Sound Effect
The DVD Receiver will automatically detect the sound system when DOLBY DIGITAL (
D I G I T A L
) Surround, DTS ( ) Surround, or
PCM DIGITAL (2 channel digital stereo) is played back. The sound system appears in the DVD Receiver's display.
Lights up when PCM DIGITAL (2 channel digital stereo) sound is reproduced.
Lights up when DOLBY DIGITAL Surround sound is reproduced.
Lights up when DTS Surround sound is reproduced.
Using Onkyo's original sound effects – DSP (Digital Signal Processor) selection
While playing back sources other than DOLBY DIGITAL and DTS Surround sounds, you can select the desired DSP mode.
Press SURROUND MODE on the remote controller or DVD
Receiver repeatedly until the desired DSP mode appears
in the DVD Receiver's display.
The DSP indicator lights up when one of the DSP modes is selected.
Each press of the button changes the DSP mode as follows:
STEREO
→
DOLBY PRO LOGIC*
→
ORCHESTRA
→
UNPLUGGED
→
STUDIO-MIX
→
TV LOGIC
→
5CH STEREO
↑
* When only the left, center, and right front speakers are connected, or if the configurations of the other speakers are set to
"NONE," "3 STEREO" (DOLBY 3 STEREO) appears instead of "DOLBY PRO LOGIC" as above described.
When only the left and right front speakers are connected, or if the configurations of the other speakers are set to
"NONE," this selection will be skipped as above described.
Notes
• When DOLBY DIGITAL Surround sound is reproduced, you can select only "DOLBY DIGITAL" or "STEREO."
• When DTS Surround sound is reproduced, you can select only "DTS" or "STEREO."
SURROUND MODE
SURROUND
MODE
DVD Receiver
Remote controller
SURROUND MODE
SURROUND
MODE
