10
Y C B C R
AM FM
75
R
CENTER
SPEAKER
R
L
L
R L
L
SURROUND
SPEAKERS FRONT SPEAKERS
VIDEO 2
OUT
I N
VIDEO 1
R
DIGITAL OUTPUT
COAXIAL VIDEO 2 OPTICAL VIDEO 1
DIGITAL INPUT
OPTICAL
I N
R L VIDEO
ANTENNA
(PLAY)
(REC) OUT
I N
VIDEO
1
OUT
I N
TV I N
TAPE / MD
SUBWOOFER
PRE OUT
S VIDEO
MONITOR
OUT
COMPONENT VIDEO OUTPUT
MONITOR
OUT CENTER
Connecting to a TV With
Color Difference Inputs
If the TV or monitor is equipped with the color
difference inputs, select the connection on the
right. Connecting to these inputs allows you to
enjoy higher quality picture playback
compared to the above connection.
Notes
• Actual labels for color difference inputs may
vary depending on the TV manufacturer (ex.
Y/R-Y/B-Y or Component video).
• In some TVs or monitors, the color levels of
the playback picture may be reduced slightly
or the tint may change. In such a case,
adjust the TV or monitor for optimum
performance.

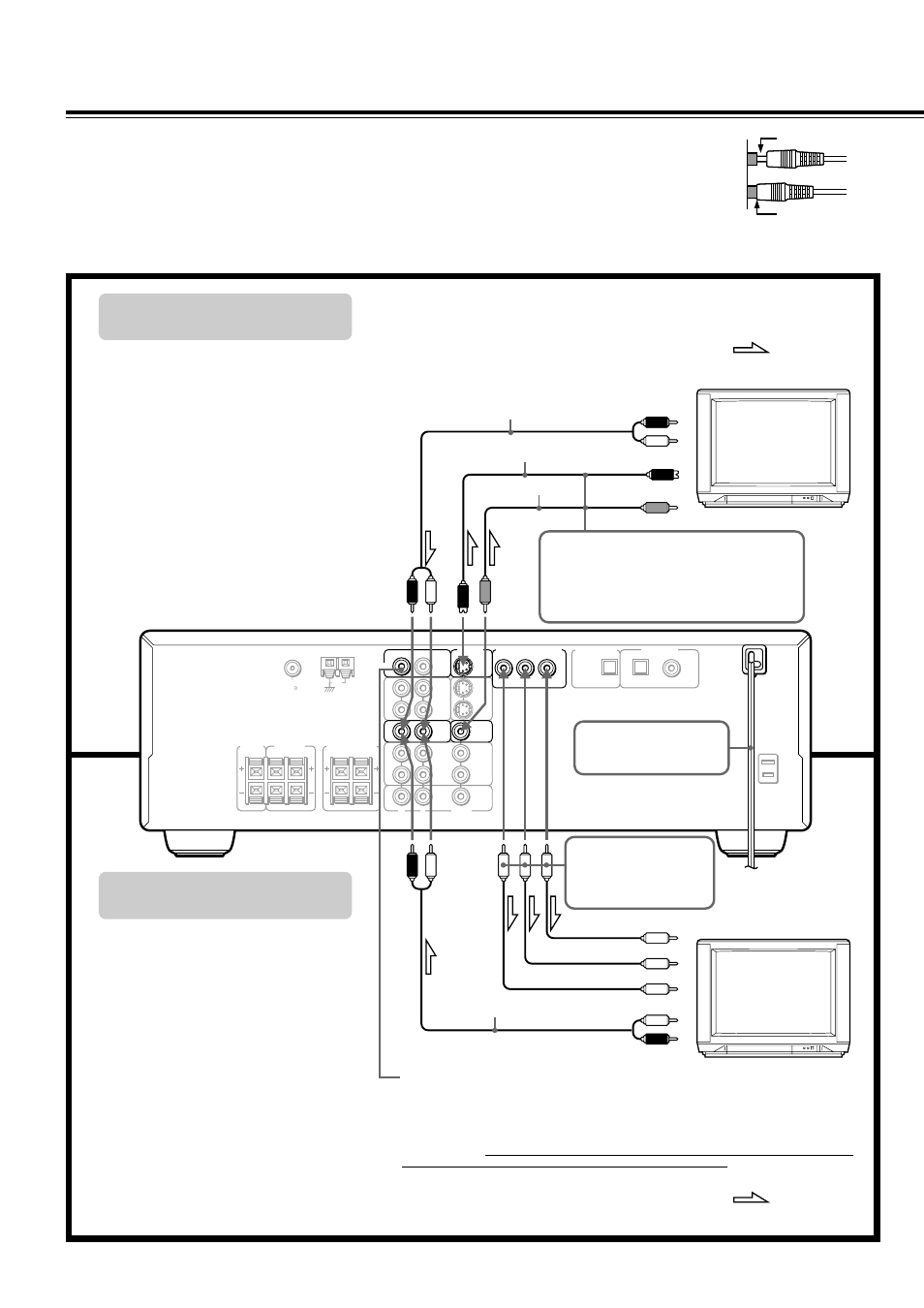

Connecting to a TV
Before connecting
• Refer also to the instruction manual of the TV.
• When you connect the DVD Receiver to the TV, be sure to turn off the
power and unplug both the units from the wall outlets before making
any connections.
• Connect the DVD Receiver to the TV directly. If you connect the DVD
Receiver to a VCR, TV/VCR combination or video selector, the
playback picture may be distorted as DVD videos are copy protected.
(White) (Y
ello
w)
(Yellow)
To video input
To S video input
L (White)
R (Red)
S video connection cable
Stereo audio connection cable
To audio outputs
(Red) (White)
L (White)
R (Red)
To Y video input
To C B video input
To C R video input
To audio outputs
TV / Monitor
Stereo audio connection cable
Video connection cable
: Signal flow
• Connect the plugs securely.
• Note that one audio/video connection cable and one S video
connection cable are supplied.
Incomplete
Insert completely
Connecting to a TV Without
Color Difference Inputs
If the TV or monitor is equipped with an
S video input, make the S video
connection in addition to the normal
video connection. The S video
connection will provide higher quality
picture playback.
TV / Monitor
: Signal flow
(Red)
Do not connect the power cord
at this time.
Only pictures from a DVD
video or VIDEO CD played
with the DVD Receiver will
be output to the TV.
Both the S video and video connections are
necessary, otherwise the picture from equipment
to be connected on the next page may not be
output to the TV.
If there is no center speaker and your TV has audio inputs, you may be able to use your TV’s
speaker(s) as the center speaker(s). If you connect the TV to this jack, you need to set up the TV
speaker(s) as the center speaker(s) following steps in “Speaker Setup” on page 18.
Caution
You may need to maximize the volume of the TV speaker(s) when you carry out steps in
“Speaker Setup.” Be sure to turn down the volume of the TV speaker(s) before changing the TV
source input and using the TV speaker(s) as a normal TV speaker(s).
