Omnitron Systems Technology iConverter Network Management Module - Manual (Page 6)

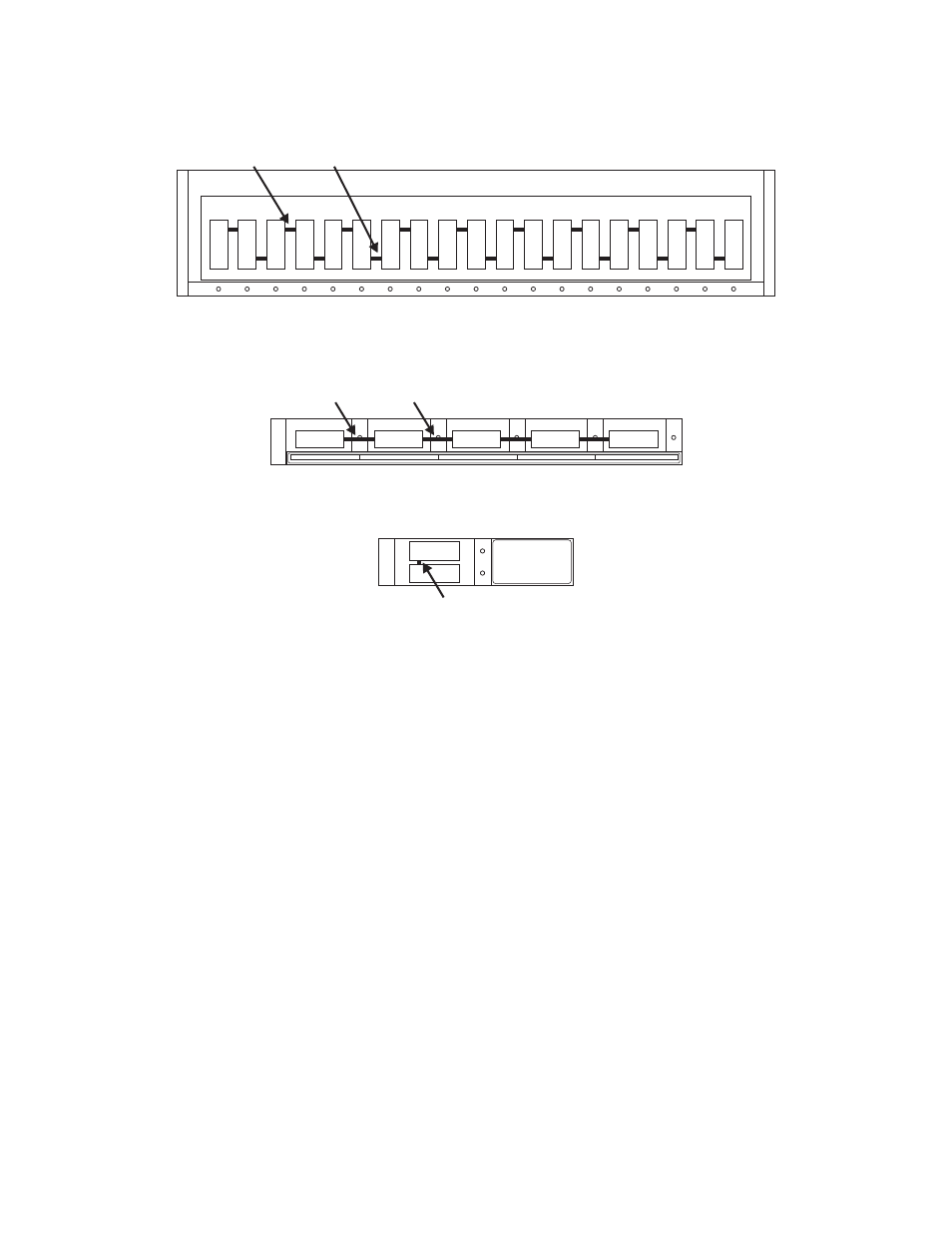

The iConverter 19-Module, 5-Module and 2-Module Chassis backplanes provide ethernet data connectivity
between adjacent slots. The A and B backplane ports connect the slots as illustrated.
A A A A A A A A A A A A A A A A A A A
B B B B B B B B B B B B B B B B B B B
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
“A” Data bus “B” Data bus
19-Module Chassis
A B
1 2 3 4 5
A B A B A B A B
1 2 4 5 3
“A” Data bus “B” Data bus
5-Module Chassis
A B
Managed Power Chassis
by Omnitron Systems Technology, Inc.
iConverter ™
“A” Data bus
A B
2-Module Chassis
Page 6
