24

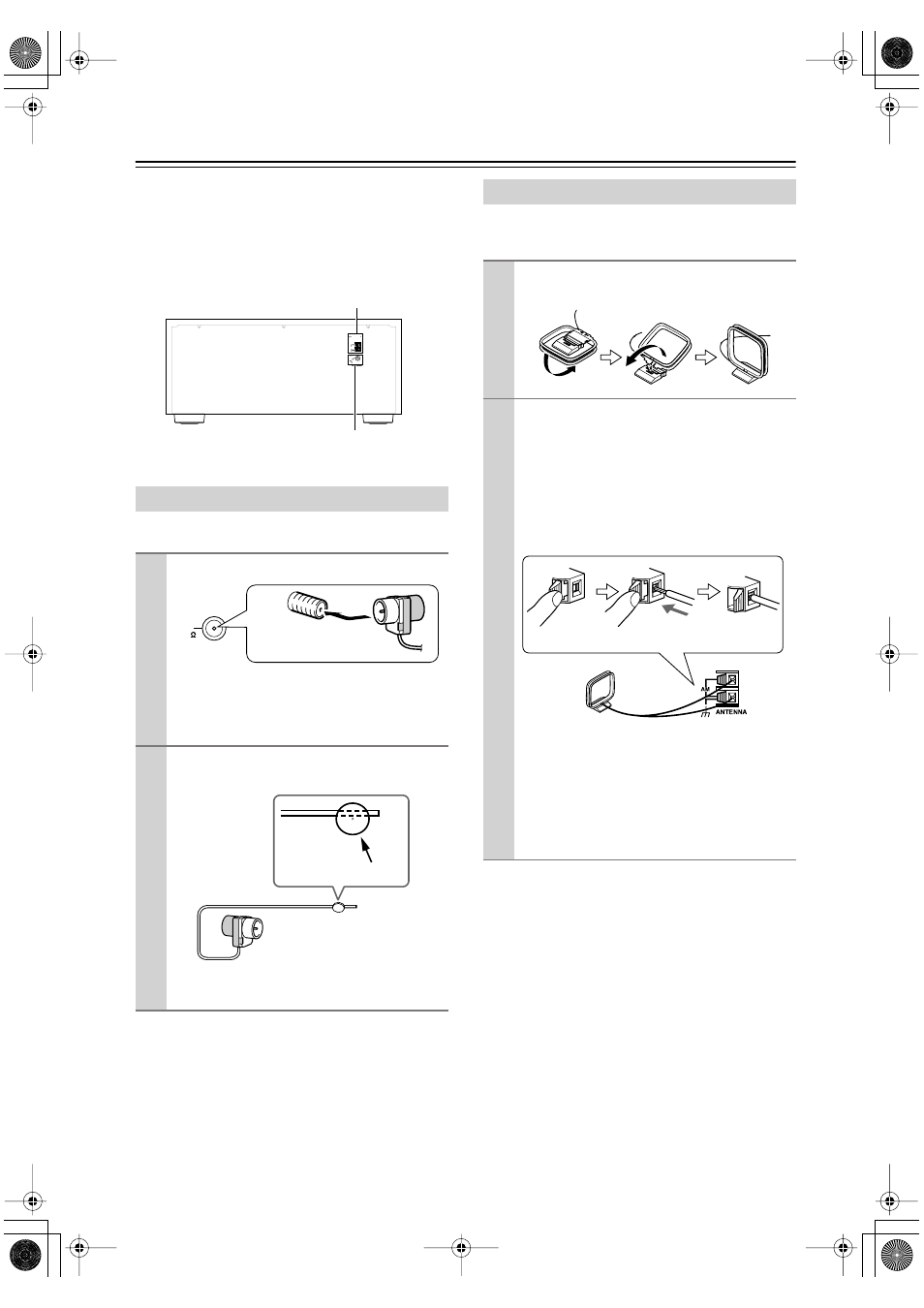

Connecting Antennas
This section explains how to connect the supplied indoor
FM antenna and AM loop antenna, and how to connect
commercially available outdoor FM and AM antennas.
The AV controller won’t pick up any radio signals
without any antenna connected, so you must connect the
antenna to use the tuner.
The supplied indoor FM antenna is for indoor use only.
If you cannot achieve good reception with the supplied
indoor FM antenna, try a commercially available out-
door FM antenna instead (see page 25).
The supplied indoor AM loop antenna is for indoor use
only.
If you cannot achieve good reception with the supplied
indoor AM loop antenna, try using it with a commer-
cially available outdoor AM antenna (see page 25).
Connecting the Indoor FM Antenna
1 Attach the FM antenna, as shown.
Once your AV controller is ready for use, you’ll
need to tune into an FM radio station and adjust
the position of the FM antenna to achieve the best
possible reception.
2 Use thumbtacks or something similar to
fix the FM antenna into position.
Caution: Be careful that you don’t injure yourself
when using thumbtacks.
AM
ANTENNA FM
75
HD RADIO
AM antenna push terminals
FM antenna jack
FM
75 Insert the plug fully
into the jack.
Thumbtacks, etc.
Connecting the AM Loop Antenna
1 Assemble the AM loop antenna, inserting
the tabs into the base, as shown.
2 Connect both wires of the AM loop
antenna to the AM push terminals, as
shown.
(The antenna’s wires are not polarity sensitive, so
they can be connected either way around).
Make sure that the wires are attached securely and
that the push terminals are gripping the bare
wires, not the insulation.
Once your AV controller is ready for use, you’ll
need to tune into an AM radio station and adjust
the position of the AM antenna to achieve the best
possible reception.
Keep the antenna as far away as possible from
your AV controller, TV, speaker cables, and power
cords.
Push Insert wire Release
