MANTELS

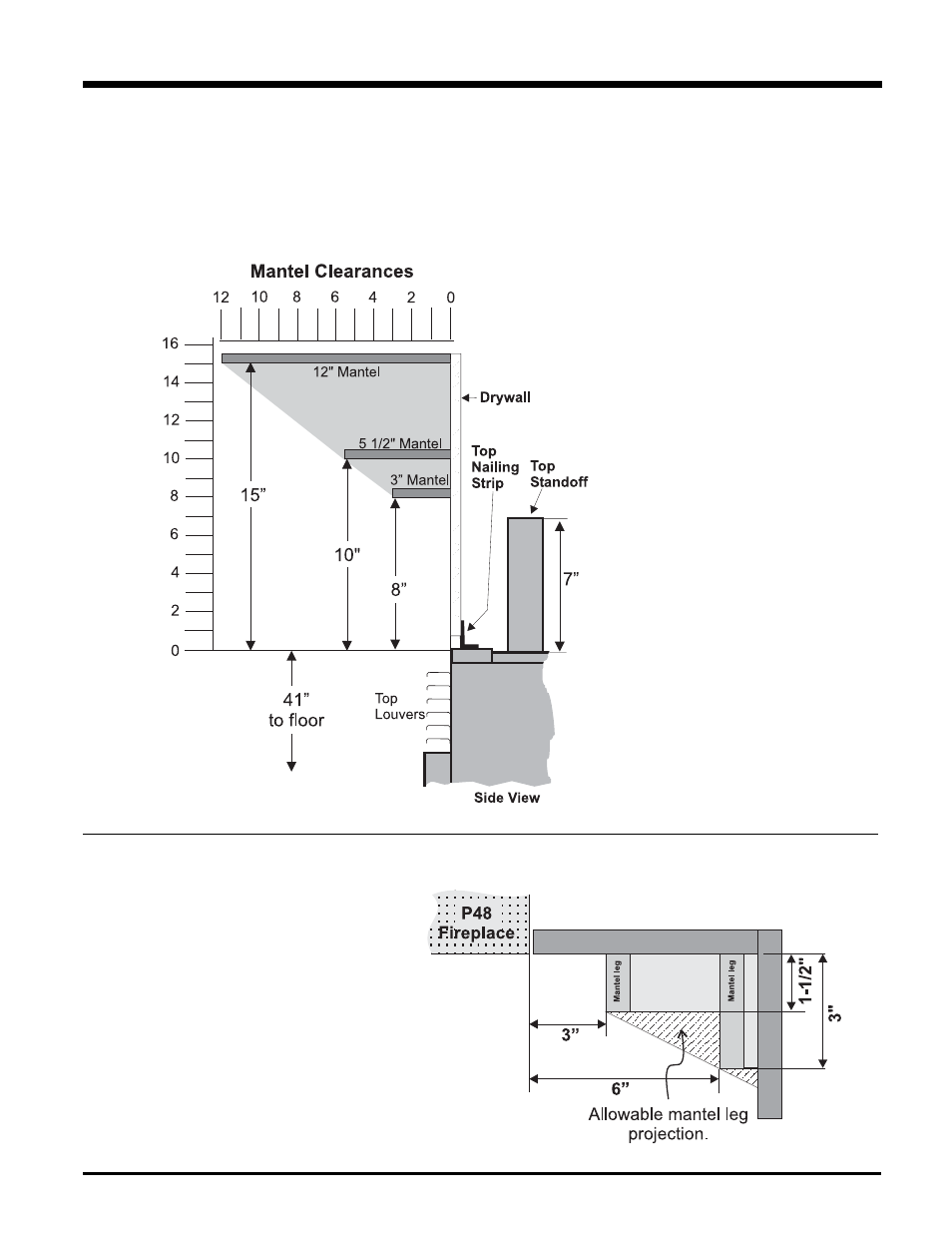

Because of the extreme heat this fi replace emits, the mantel clearances are critical. Combustible mantel clearances from louver are shown
in the diagram below.

Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible

board.

This drawing is to scale at 1:6 (one inch = 6
inches)

Mantel can be installed anywhere in shaded area
using the above scale for units with the Flush
Front and with the optional Bay Front.

Note: Ensure the paint that is used

on the mantel and the facing is
"heat resistant" or the paint may
discolour.

Maximum
1-1/2" projection at 3"
minimum clearance.

MANTEL LEG CLEARANCES

Combustible mantel leg clearances as per diagram:
