Regency ® P48-2 Zero Clearance Direct Vent Gas Fireplace 27

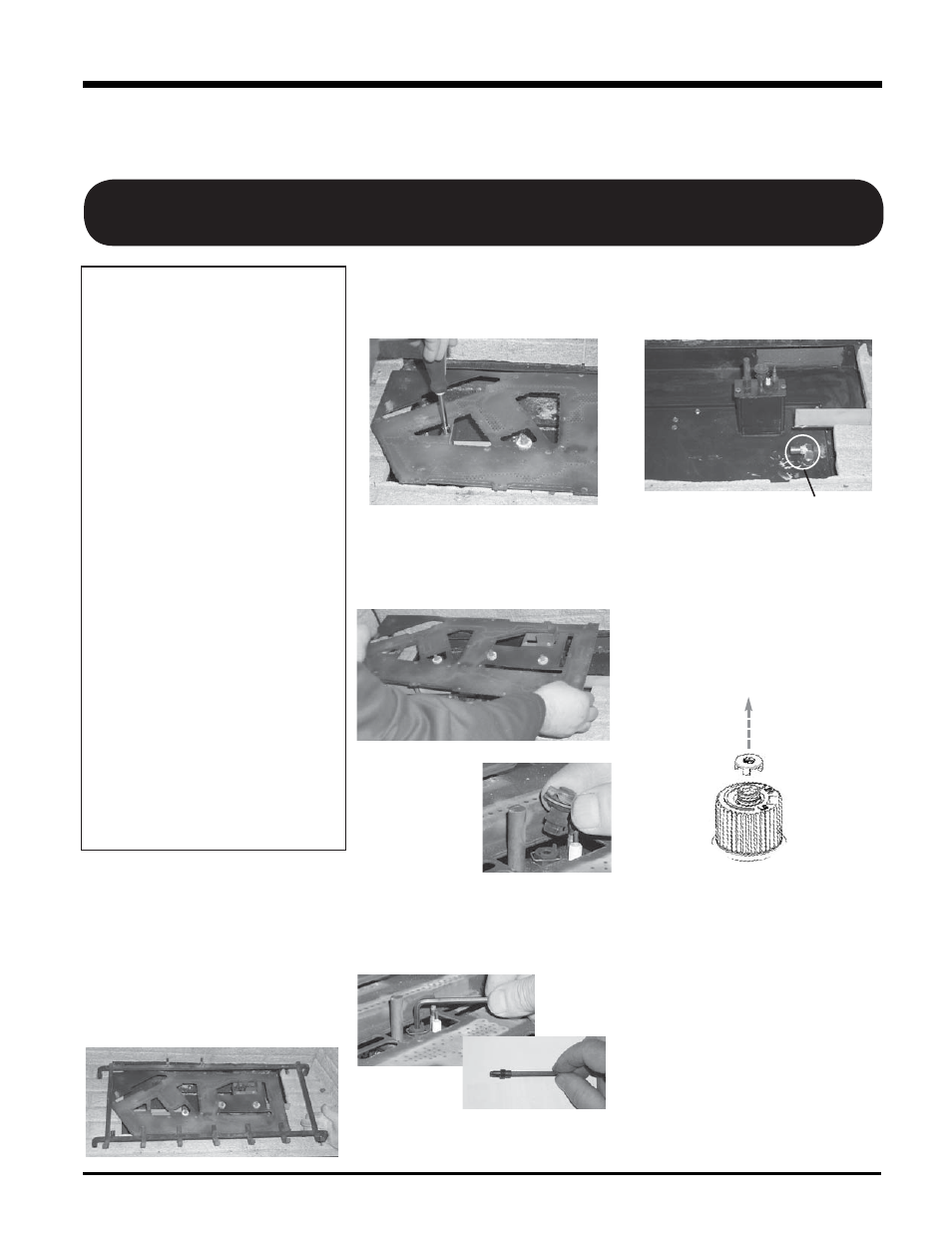

INSTALLATION
5) Pull off the pilot
cap to expose
the pilot orifi ce.
6) Unscrew the pilot orifi ce with the allen
key and replace with the LP pilot orifi ce
in the kit and replace pilot cap.
7) Remove burner orifi ce with a 1/2"
wrench and discard. Use another
wrench to hold on to the elbow behind
the orifi ce.
Each Kit contains one LPG
Conversion Kit and one DC
Sparker Kit.
LPG Conversion Kit Contains:
Qty. Part #
Description
1 904-434 Burner Orifi ce #47
1 918-590 Decal "Converted to
Propane"
1 908-529 5/32" Allen Key
1 910-037 LP Injector (Pilot Orifi ce)
1 918-478 Instruction Sheet
DC Sparker Kit Contains:
Qty. Part #
Description
1 820-475 Bracket DC Sparker
1 820-476 Bracket DC Sparker
1 904-153 Washer #8 External Star
1 904-330 Nut 8-32 Hex
2 904-531 Bushing Split Plastic
0.500 in.
1 904-543 Screw 8-32 x 3/4 Pan
Head
2 904-553 Screw #8 x 1/2 Type "B",
Black Oxide
1 910-073 Spark Generator
Battery Holder
1 910-074 Spark Generator
Switch C/W Wire
1 910-078 Battery Size AA
Energizer En91
1 910-199 Clip Wire Holder
1 910-903 Wire Fan To Power Cord
Ground 30 in.
1 918-478 Instruction Sheet
904-781 Velcro Hook, Black
904-782 Velcro Hook, Black
Diagram 1:
Remove the left screw and then slide the
burner assembly away from the orifi ce and
lift out.
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER
IF IN DOUBT DO NOT DO THIS CONVERSION !!
8) Reinstall new burner orifi ce LP stamped
#47 and tighten.
9) Turn control knob to the “OFF” position.
10) Remove the black protection cap by
hand from the high-low knob (Fig.1).
Fig. 1
1) Remove the louvers and trim kit. Re-
move the front door.
2) Remove the logs, embers.
3) Remove the grate by lifting straight up.
4) Remove the burner assembly by remov-
ing the 1 Phillips head screw and then
slide the burner assembly away from the
orifi ce and lift out.
Installation of LPG
Conversion Kit:
Burner Orifi ce
CONVERSION KIT FROM NG TO LPG PART #372-969
for P48-2 SIT 820 NOVA Gas Valve
