Regency ® P48-2 Zero Clearance Direct Vent Gas Fireplace 31
INSTALLATION

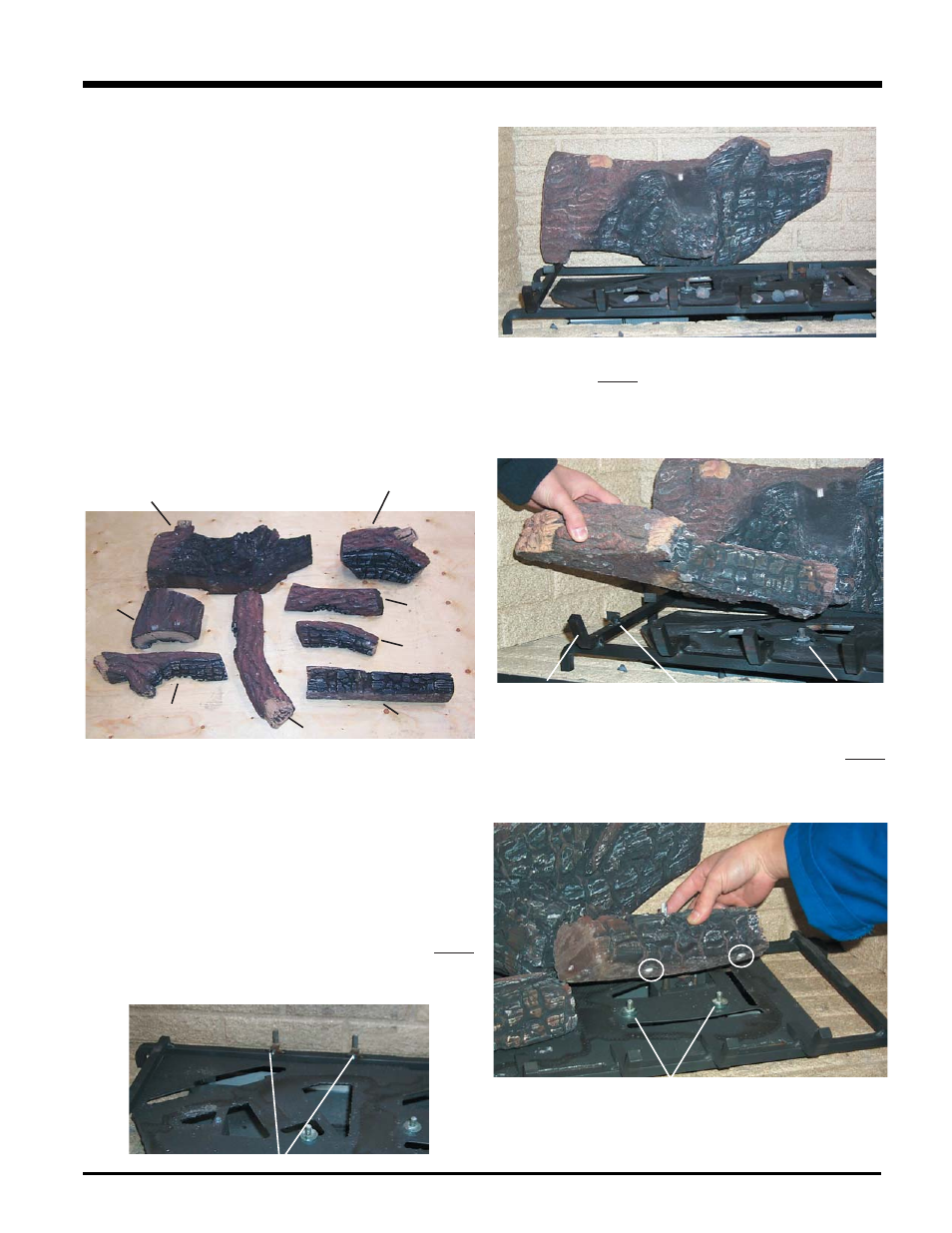

LOG SET INSTALLATION
Read the instructions below carefully and refer to the dia-
grams. If logs are broken do not use the unit until they are
replaced. Broken logs can interfere with the pilot opera-
tion.
The gas log kit (Part # 370-930) contains the following pieces:
a) 02-83
Center Cross Log
b) 02-84 Right Side Cross Log
c) 02-85 Front Left Side Log
d) 02-86 Front Right Side Log
e) 02-87 Left Side End Log
f) 02-88 Rear Log
g) 02-89 Middle Right Side Log
h) 02-90 Right Side End Log
i) 902-154 Embers (Lava)
j) 902-179 Vermiculite
k) 946-669 Platinum Embers
(supplied with packaged manual)
1) Carefully remove the logs from the box and unwrap
them. The logs are fragile, handle with care - do not
force into position.
3) Line up the two holes on the underside of Log 02-88
with the 2 pins at the rear of the grate and position
into place.
4) Place Log 02-85 on the front left side of the burner.
Position the right end of the log into the pin on the
burner and rest the left end of the log between the 1st
grate post and the front tab.
02-84
02-83
02-85
02-86
02-87
02-90
02-89
The "02" reference numbers (i.e. 02-83)
are molded into the rear of each log.
Pins
02-88
02-85
Pin
1st Grate Post
02-85
02-88
02-86
Pins
Tab
5) Line up the two holes on the underside of Log 02-86
with the 2 pins on the right side of the burner and posi-
tion into place.
02-88
02-88
2) Sprinkle the vermiculite all over the top of the base
brick panel.
If you will be installing the optional brick panels, install them
prior to installing the logs.
