Regency

®

P48-2 Zero Clearance Direct Vent Gas Fireplace

35

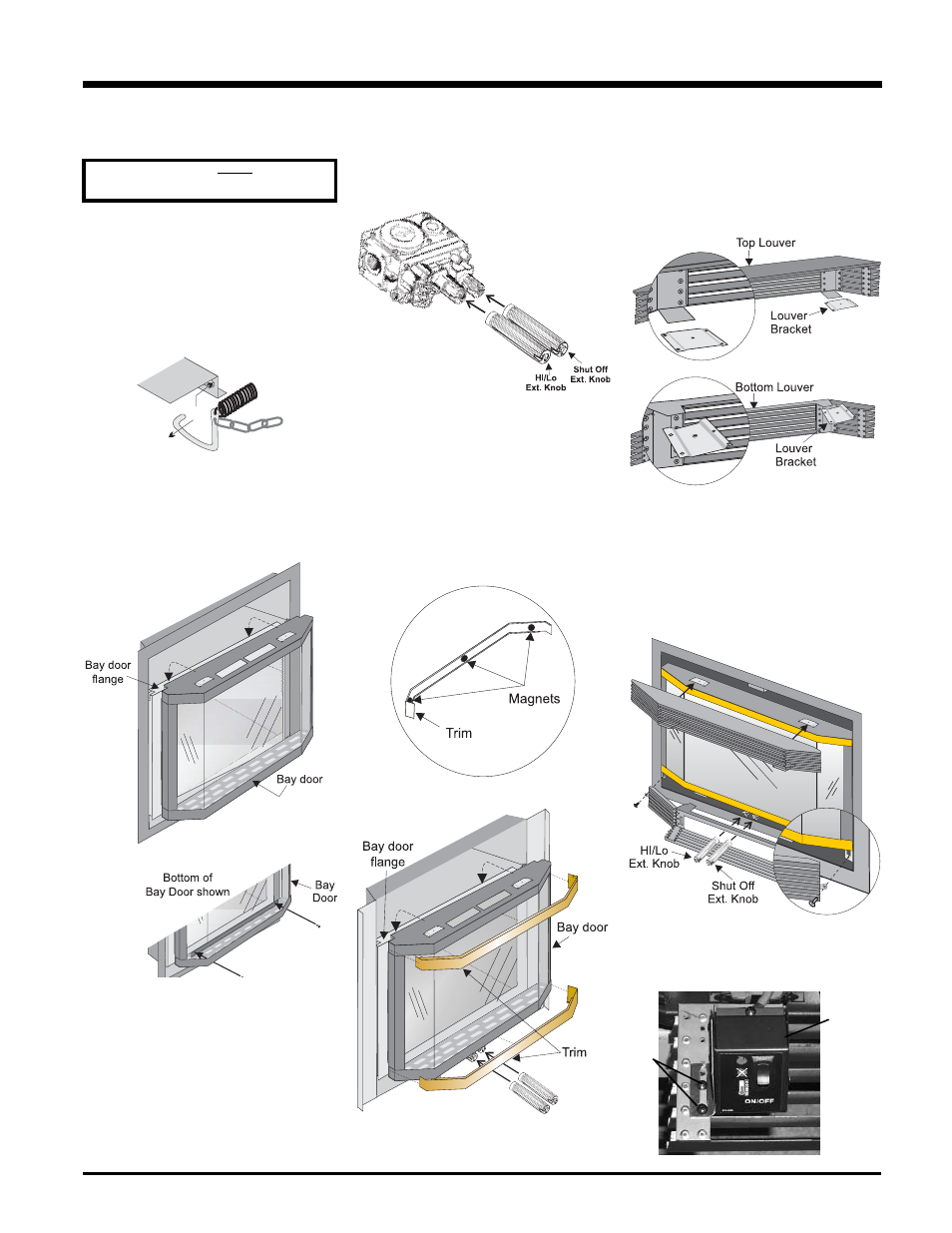

INSTALLATION

BAY LOUVERS

1) Install top louver by sliding the two bracket

clips into the brackets located on top of the
bay door. See below. The fi tted louver leaves
a small gap between faceplate bottom and
louver top.

Diagram 4

Diagram 3

OPTIONAL BAY TRIM

Attach the supplied magnets each to the back
of the top and bottom trim pieces, and attach
trim to the top and bottom of Bay door. See
diagrams 3 and 4.

Note: Top and bottom louvers and

brackets are different.

2) Install bottom louver by sliding the two

bracket clips into the brackets located
underneath the bay door. Install bottom
louver by sliding the two bracket clips into the
brackets located underneath the bay door
and secure with 1 screw on each end.

OPTIONAL BAY DOOR

The Bay louvers MUST be used

with the Bay glass option.

The optional Bay door is an overlay on the
fl ush front.
The standard fl ush door and glass
must remain on the unit.


1) Unhook the 2 spring loaded hooks from the

bottom of the fl ush door.

2) Hook the top of the bay door over the fl ush

door fl ange and swing the bottom against
the bottom fl ange of the fl ush door.

3) Secure to the fl ush door bottom bracket with

2 screws provided.

4) Reconnect the 2 spring hooks securing the

fl ush door.

5) Slide the valve extension knobs onto the

valve knobs.

Note: If any maintenance etc. must be

done in the fi rebox, fi rst remove the
Bay louvers and door.

Screws

on louver

bracket

Burner

ON/OFF

control box

3) Open the bottom louver. Pull the Burner

ON/OFF control box from inside the bottom
of the fi replace. Using the 2 screws on the
louver, secure the control box in place.
