INSTALLATION

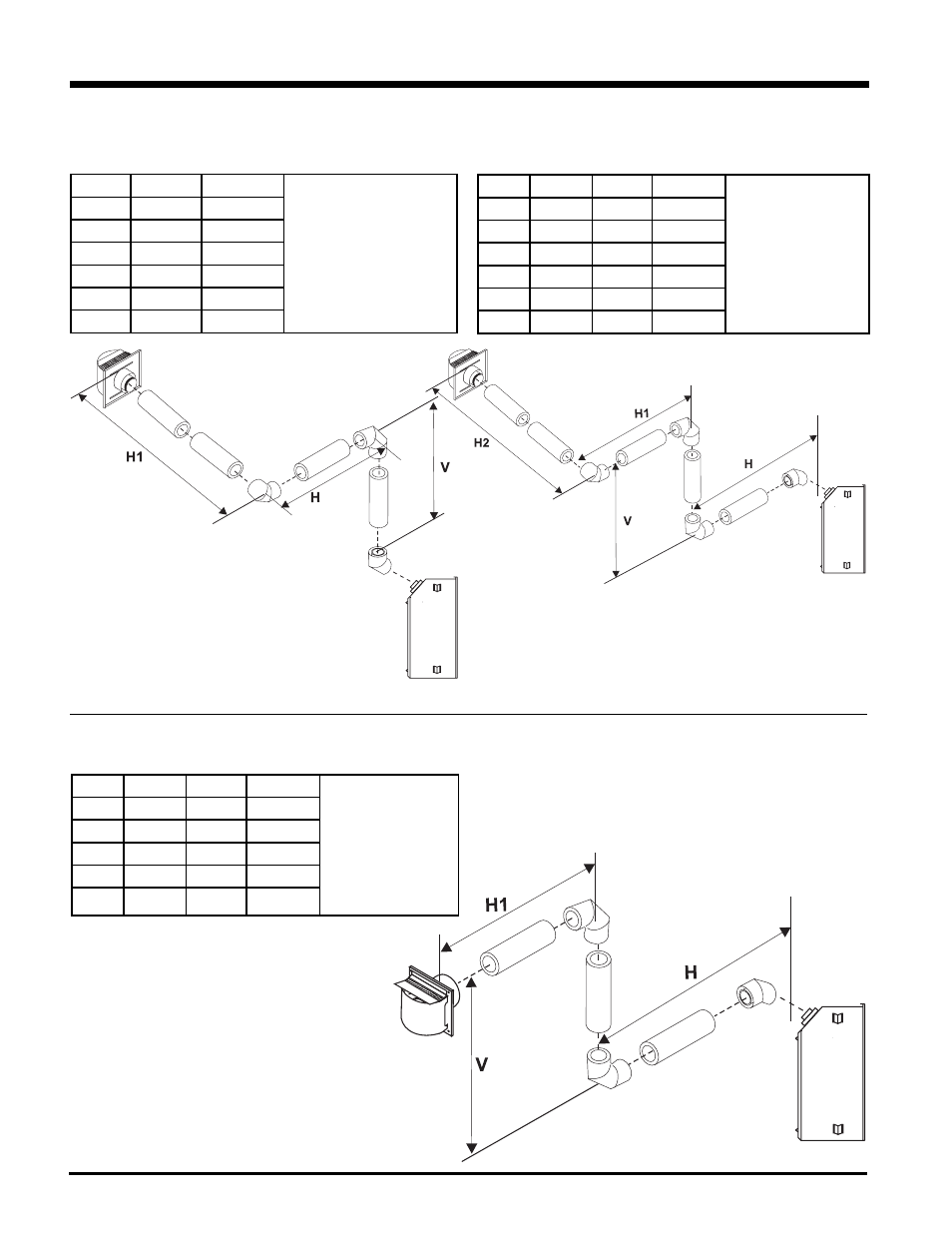

Horizontal Venting with Two (2) 90
o
Elbows
Horizontal Venting with Two (2) 90
o
Elbows
Horizontal Venting with Three (3) 90
o
Elbows
One 90
o
elbow = Two 45
o
elbows.
One 90
o
elbow = Two 45
o
elbows.
One 90
o
elbow = Two 45
o
elbows.
Option
V
H + H1
With these options, maximum
total pipe length is 30 feet
with minimum of 6 feet total
vertical and maximum 8 feet
total horizontal.
Please note minimum 1
foot between 90
o
elbows is
required.
A)
1' Min.
3' Max.
B)
2' Min.
4' Max.
C)
3' Min.
5' Max.
D)
4' Min.
6' Max.
E)
5' Min.
7' Max.
F)
6' Min.
8' Max.
Option
H
V
H+H1+H2
With these options, max.
total pipe length is 30 feet
with min. of 11 feet total
vertical and max. 9 feet
total horizontal.
Please note min. 1 foot
between 90
o
elbows is
required.
A)
1' Max.
1' Min.
3' Max.
B)
2' Max.
3' Min.
5' Max.
C)
3' Max.
5' Min.
6' Max.
D)
4' Max.
7' Min.
7' Max.
E)
5' Max.
9' Min.
8' Max.
F)
6' Max.
11' Min.
9' Max.
Option
H
V
H + H1
With these options,
max. total pipe length is
30 feet with min. of 8 feet
total vertical and max. 8
feet total horizontal.
Please note min. 1 foot
between 90
o
elbows is
required.
A)
1' Max.
1' Min.
3' Max.
B)
2' Max.
2' Min.
5' Max.
C)
3' Max.
4' Min.
6' Max.
D)
4' Max.
6' Min.
7' Max.
E)
5' Max.
8' Min.
8' Max.
