VENTING ARRANGEMENTS
HORIZONTAL TERMINATION

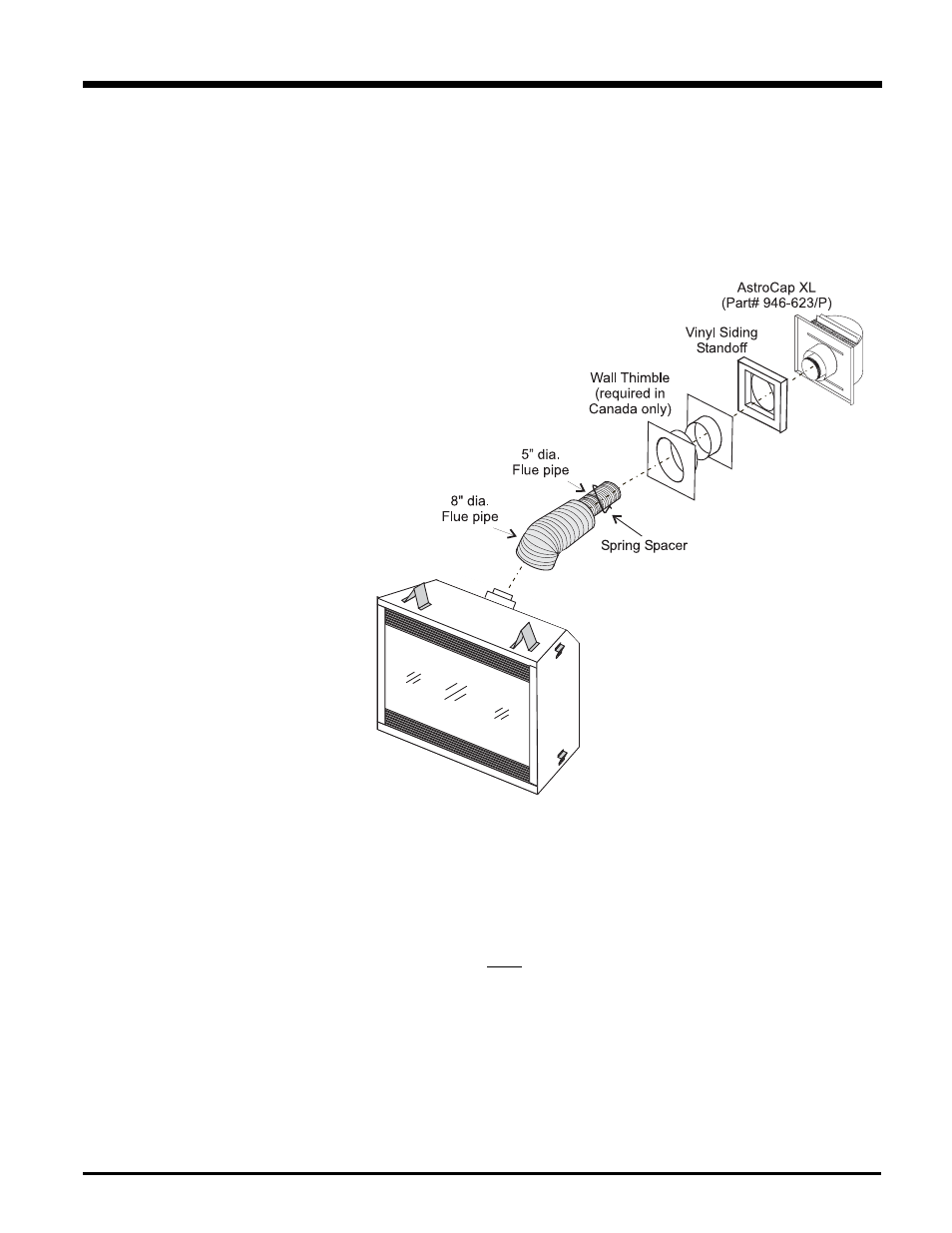

Regency ® Direct Vent System (Flex)
These venting systems, in combination with the P48-2 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by
Warnock Hersey. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in "Exterior Vent
Termination Locations" section.
Regency ® Direct Vent (Flex) System
Termination Kit (Part# 946-618) includes all
the parts needed to install the P48-2 with a
maximum run of 4 feet.
1) 8" dia. fl exible liner (6 ft. length)
2) 5" dia. fl exible liner (6 ft. length)
3) spring spacers (4)
4) thimble
(2)
5) AstroCap XL termination cap (1)
6) screws
(12)
7) tube of Mill Pac (1)
8) plated
screws (8)
9) screws #8 x 1-1/2" Drill Point,
Stainless
Steel (4)
10) vinyl siding standoff
If longer runs are needed, the Regency ® Direct
Vent system (Flex) Part# 946-616 includes all
the parts needed to install the P48-2 with a
maximum 10' run.
1) 8" dia. fl exible liner (10 ft. length)
2) 5" dia. fl exible liner (10 ft. length)
3) spring spacers (7)
4) thimble
(2)
5) AstroCap XL termination cap (1)
6) screws
(12)
7) tube of Mill Pac (1)
8) plated
screws (8)
9) screws #8 x 1-1/2" Drill Point,
Stainless
Steel (4)
10) vinyl siding standoff
Notes:
1) Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regency ® may be used for Flex installations.
3) If you are installing the P48-2 into a Regency ® Mantel Kit, use the minimum horizontal vent height (centre-line of 43"). Remember to
include the mantel base in your calculations and to maintain the 2-1/2" clearance to the underside of the mantel top.
