Regency ® P48-2 Zero Clearance Direct Vent Gas Fireplace 38

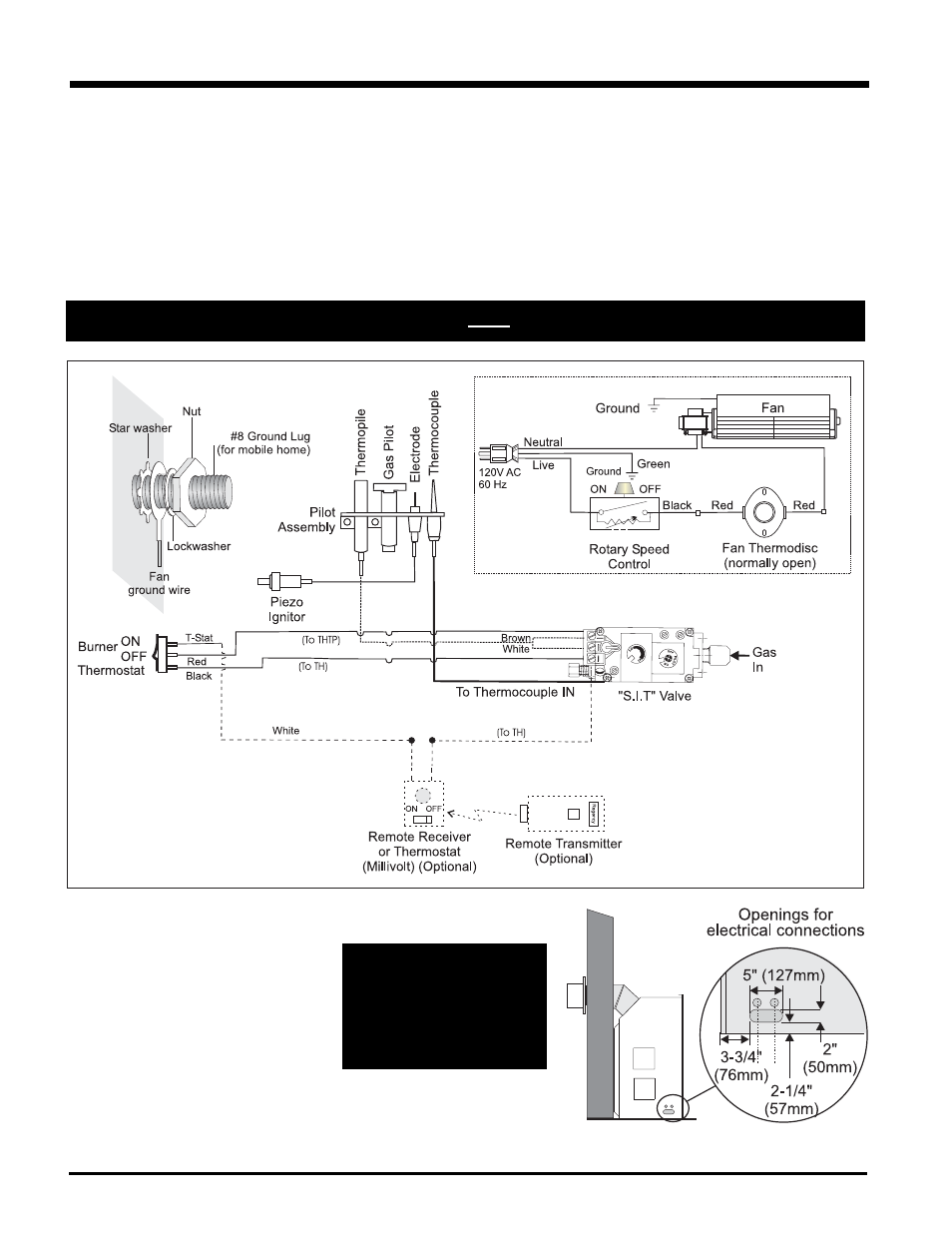

WIRING DIAGRAMS
CAUTION: Label all wires
prior to disconnection
when servicing controls.
Wiring errors can cause
improper and dangerous
operation.
No electrical power supply is required for the
gas control to operate. 120 Volt AC power is
needed for the fan switch and blower. The fan
can be hard wired if desired. A terminal block is
provided on the left hand side of the unit. A three
wire power cord can also be used and plugged
into a suitable receptacle. (Do not cut the ground terminal off under
any circumstances.) NOTE: Even if the fan is not purchased with
the unit, it is still a good idea to hardwire the
terminal block in case the fan is installed at a
later date.
** However DO NOT leave this connection
live until the fan is installed.**
Caution: Ensure that the wires do
not touch any hot surfaces and are
away from sharp edges.
INSTALLATION
For NATURAL GAS Units and Units NOT Equipped with DC Spark Boxes
