Regency ® P48-2 Zero Clearance Direct Vent Gas Fireplace 20
INSTALLATION

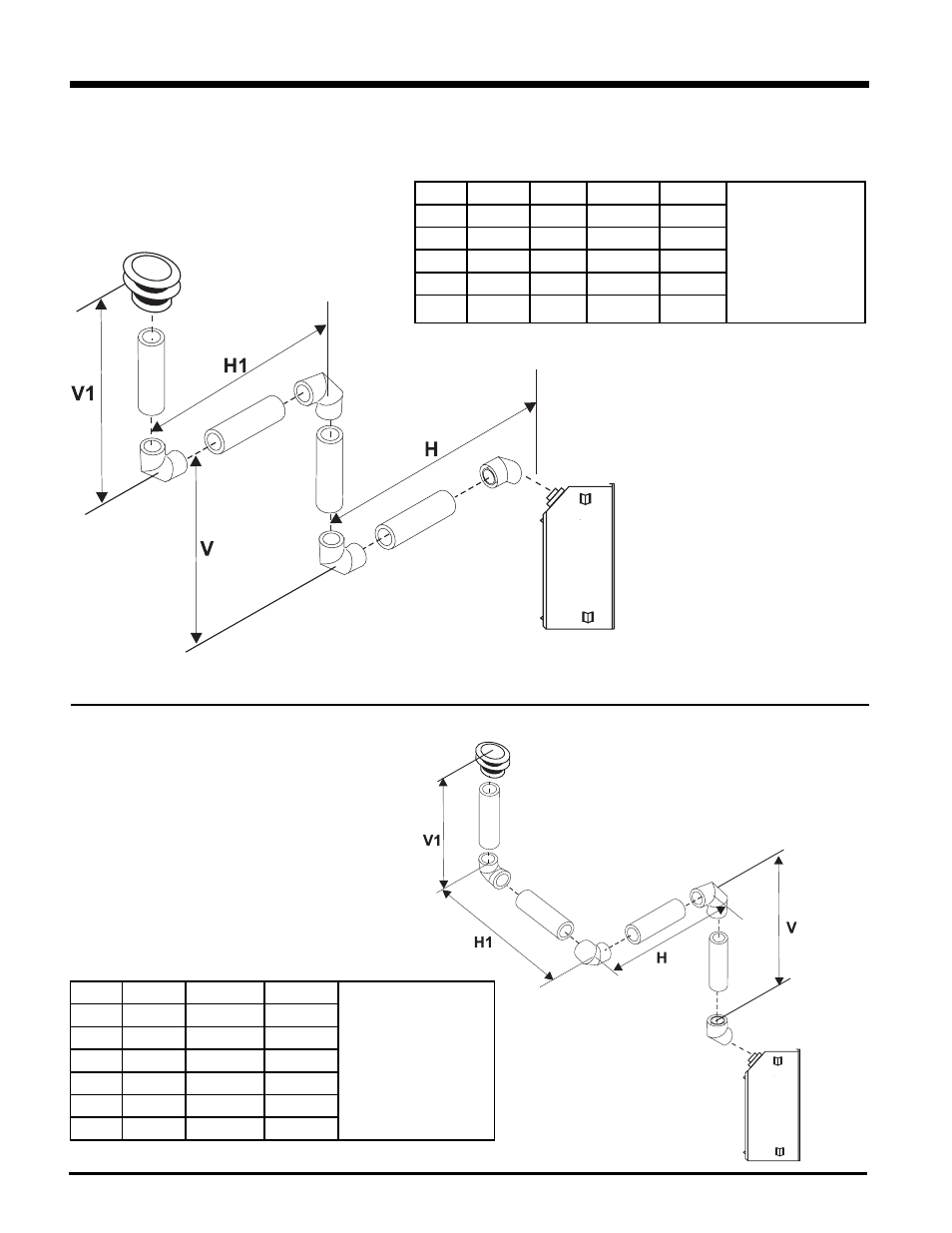

Vertical Venting with Three (3) 90 o Elbows
Vertical Venting with Three (3) 90 o Elbows
One 90 o elbow = Two 45 o elbows.
Option H V H + H1 V + V1 With these options,
max. total pipe length
is 30 feet with min. of
11 feet total vertical
and max. 7 feet total
horizontal.
Please note min. 1 foot
between 90
o elbows is
required.
A) 1' Max. 1' Min. 3' Max. 3' Min.
B) 2' Max. 2' Min. 4' Max. 5' Min.
C) 3' Max. 3' Min. 5' Max. 7' Min.
D) 4' Max. 4' Min. 6' Max. 9' Min.
E) 5' Max. 5' Min. 7' Max. 11' Min.
One 90 o elbow = Two 45 o elbows.
Option V H + H1 V + V1 With these options, max.
total pipe length is 30 feet
with min. of 10 feet total
vertical and max. 8 feet
total horizontal.
Please note min. 1 foot
between 90
o elbows is
required.
A) 2' Min. 3' Max. 4' Min.
B) 3' Min. 4' Max. 6' Min.
C) 4' Min. 5' Max. 7' Min.
D) 5' Min. 6' Max. 8' Min.
E) 6' Min. 7' Max. 9' Min.
F) 7' Min. 8' Max. 10' Min.
