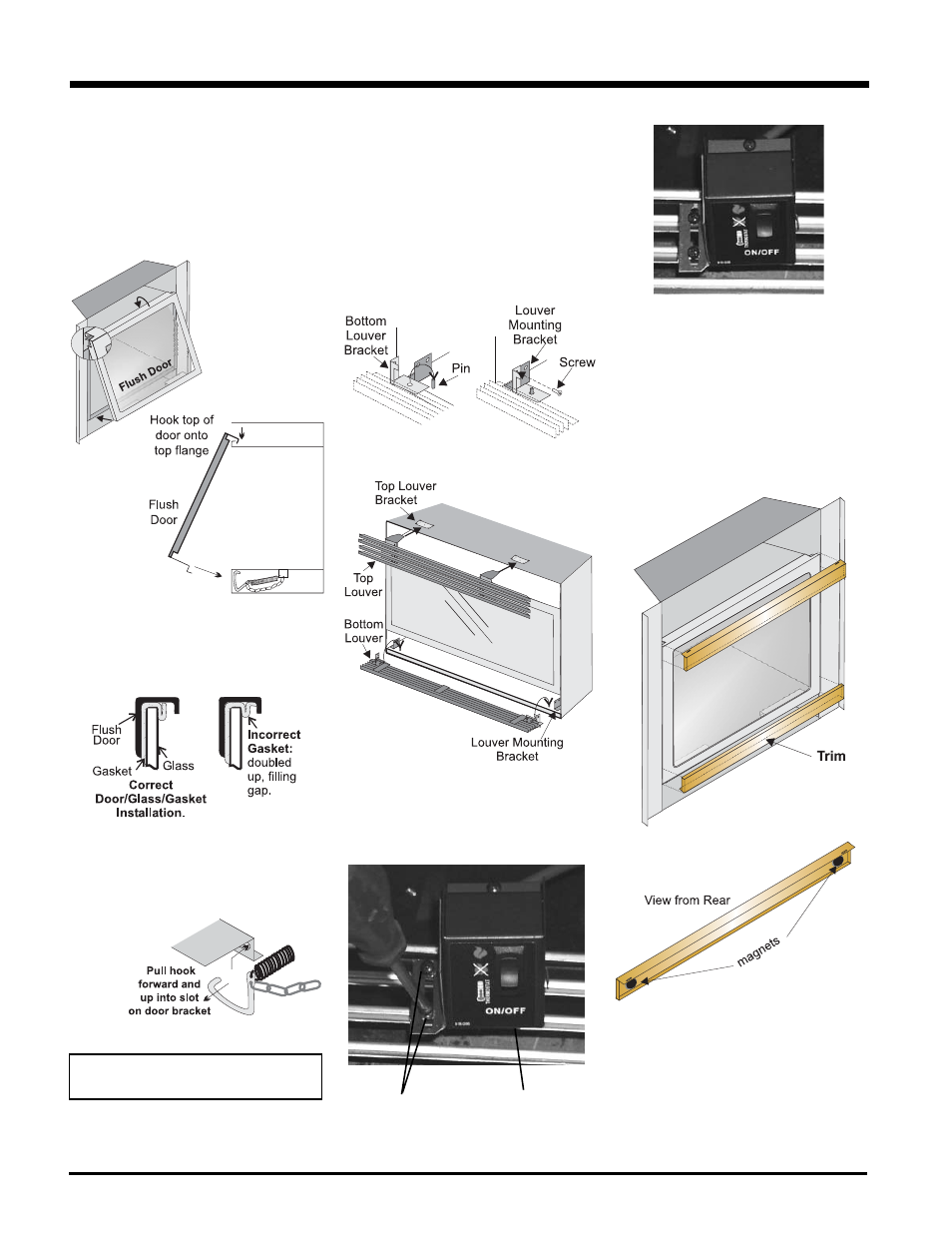

Regency ® P48-2 Zero Clearance Direct Vent Gas Fireplace 34
Diagram 1
Diagram 3
STANDARD
FLUSH DOOR
The standard fl ush door comes with a black
frame. To install the frame, simply hook the top
door fl ange onto the top of the unit and swing
the door towards the unit, diagram 1.
Diagram 2
NOTE: Springs must always be OVER
not under the gas line.
Be careful that the glass gasket does not roll up;
there must be a gap between the gasket and the
door lip to ensure that the door sits securely on
the unit. Diagram 2.
Use the hook to pull the spring out until you
can put the hook into the slot on the bottom
door bracket. Repeat for 2nd and 3rd spring.
See diagram 3.
To remove the fl ush door, reverse the above
steps.
Diagram 1 Diagram 2
FLUSH LOUVERS
1) Install the top louver by sliding the two
bracket clips into the brackets located
underneath the top of the fi rebox.
2) Install the bottom louver by folding the louver
down and then sliding the Bottom Louver
bracket down onto the 2 pins on the base
of the unit (diagram 1). Secure with 1 screw
as per diagram 2.
Note: Top and
bottom louvers
are different.
3) Open the bottom louver. Pull the Burner
ON/OFF control box from inside the bottom
of the fi replace. Using the 2 screws on the
louver, secure the control box in place.
Burner ON/OFF control box attached to
bottom fl ush louver.
Screws on
louver bracket
Burner ON/OFF
control box
OPTIONAL FLUSH TRIM
Attach the round magnets to the back of the
top trim piece and to the bottom trim piece,
then attach trim to the top and bottom of Flush
door.
INSTALLATION
