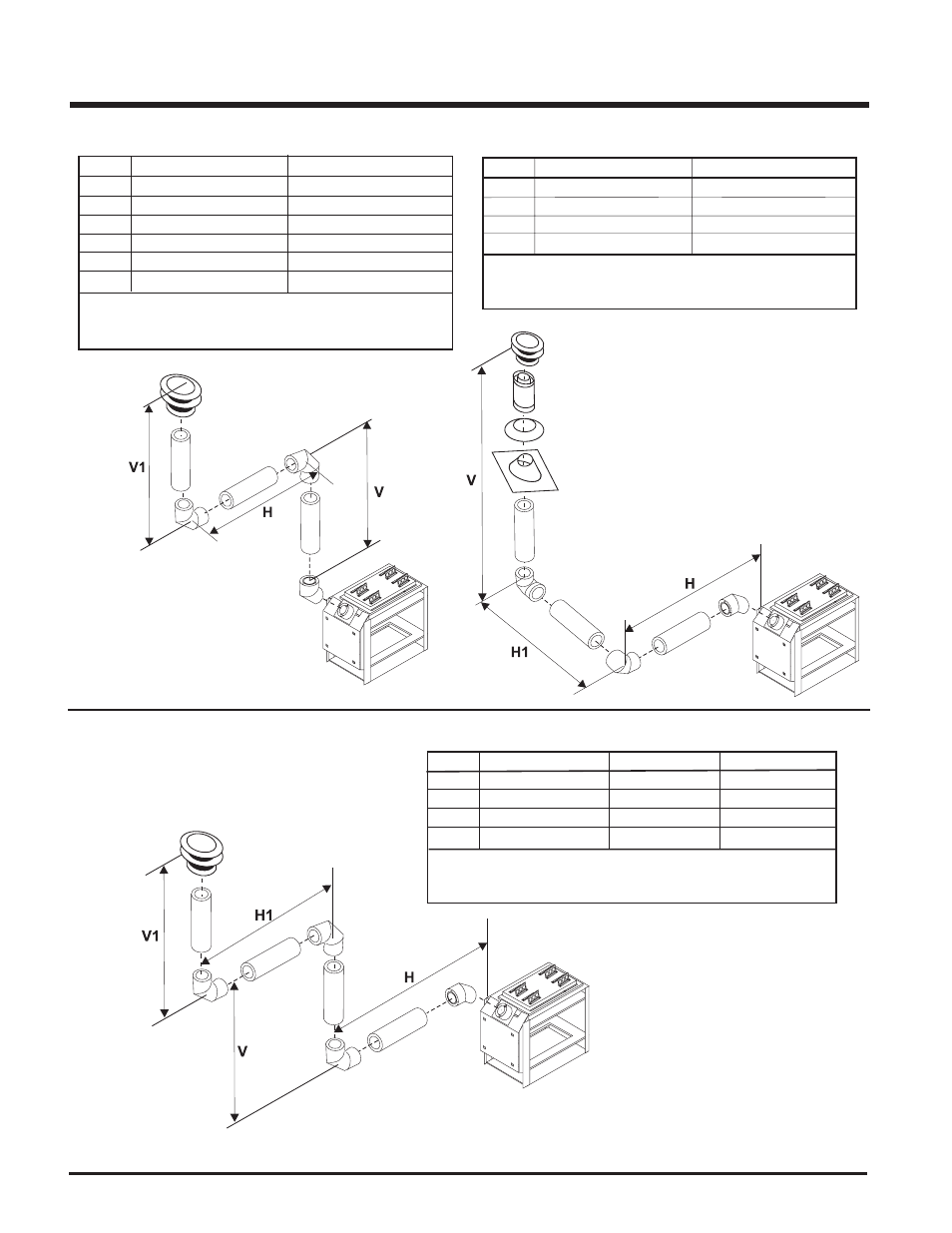

background image

Regency P121/P121LC/P121RC/P131 Zero Clearance Room Sealed Gas Fireplace

18

INSTALLATION

Vertical Flueing with Two (2) 90

o

Elbows

Option

V

H

A)

1' (305mm) Minimum

4' (1.22m) Maximum

B)

2' (610mm) Minimum

6' (1.86m) Maximum

C)

3' (914mm) Minimum

9' (2.7m) Maximum

D)

4' (1.22m) Minimum

12' (3.6m) Maximum

E)

5' (1.5m) Minimum

15' (4.5m) Maximum

F)

6' (1.86m) Minimum

17' (5.1m) Maximum

Vertical Flueing with Two (2) 90

o

Elbows

Vertical Flueing with Three (3) 90

o

Elbows

Diagram 9

Diagram 10

Diagram 11

Option

V + V1

H

H + H1

A)

2' (610mm) Min. 1' (305mm) Max. 2' (610mm) Max.

B)

3' (914mm) Min. 4' (1.22m) Max. 5' (1.5m) Max.

C)

4' (1.22mm) Min. 6' (1.86m) Max. 8' (2.4m) Max.

D)

5' (1.5m) Min.

8' (2.4m) Max.

12' (3.6m) Max.

With the above options, maximum total pipe length if 37 feet with

minimum of 6 feet total vertical and maximum 17 feet total horizontal.

Please note minimum 1 foot between 90

o

elbows is required.

Option

V

H + H1

A)

1' (305mm) Minimum

2' (610mm) Maximum

B)

2' (610mm) Minimum

4' (1.22m) Maximum

C)

3' (914mm) Minimum

6' (1.86m) Maximum

D)

4' (1.22m) Minimum

8' (2.4m) Maximum

With the above options, maximum total pipe length if 37 feet with

minimum of 4 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90

o

elbows is required.

With the above options, maximum total pipe length if 37 feet with

minimum of 5 feet total vertical and maximum 12 feet total horizontal.

Please note minimum 1 foot between 90

o

elbows is required.
