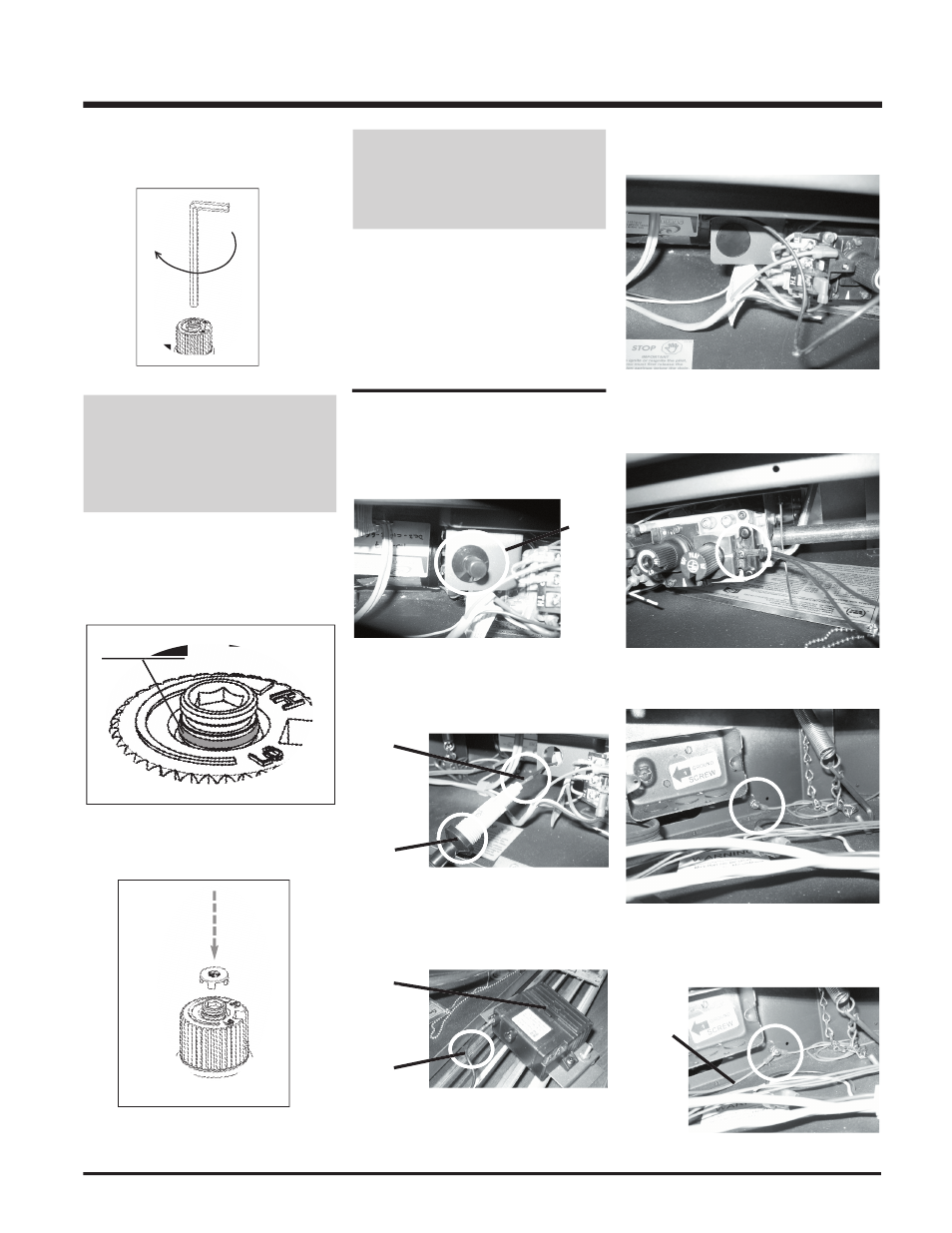

UltraGlow ® G36D Zero Clearance Direct Vent Gas Fireplace 25
INSTALLATION
20) Replace yellow "Natural Gas" label with
red "Propane" label.
WARNING!
Do not overtighten the screw
Recommended to
grip the wrench by
the short side.
16) Verify that if the conversion is from V V
NG to LPG, the screw must be re-
assembled with the red o-ring visible
(Fig. 5).
17) Re-assemble the black protection cap
(Fig. 6).
WARNING!
Also check that the pilot
and main burner injectors are
appropriate for the gas type.
LPG Configuration
Red o-ring visible
Fig.5
Fig. 6
18) Reverse steps 5) to 2).
19) Attach the label "This unit has been
converted to LPG" near or on top of the
serial # decal.
Installation of the DC Sparker:
15) Using the Allen wrench as shown in
Fig.4, rotate the screw clockwise until
snug, do not overtighten.
Fig.4
21) Locate the Piezo Ignitor situated at the
side of valve.
22) Remove the Piezo Ignitor by unscrewing
the nut at the back of the mounting
bracket.
23) Disconnect the ignitor wire from the
Piezo Ignitor and connect it to the D.C.
Sparker.
Piezo
Ignitor
Ignitor
Wire
Piezo
Ignitor
Ignitor
Wire
DC
Sparker Sparker
24) Install the 3/4" nylon plug to cover up the
hole on the mounting bracket.
25) Connect the DC spark generator wires
to the SIT Valve V V with the screw, which is
provided in the kit.
26) Locate the ground lug at the receptical
box, left of the unit.
27) Connect one end of the supplied green
ground wire to the lug with the nut and
washer from the kit.
Ground
wire from
kit
