(5) Connecting 100-pin 0.5-mm-pitch Foot Pattern (Part 1)
Figure 3.16 shows how to connect the emulation pod probe to the 100-pin 0.5-mm-pitch foot pattern
on the target system with the 100LCC-QSD (not included), and here following is its procedure. For
details on the 100LCC-QSD, refer to its user's manual.
(1) Attach the 100LCC-QSD to the target system.
For details on how to attach the 100LCC-QSD to the target system, see the user's manual of
the 100LCC-QSD.
(2) Attach the M30800T-PTC to the FLX160-PRB.
(3) Attach the M30800T-PTC to the 100LCC-QSD.

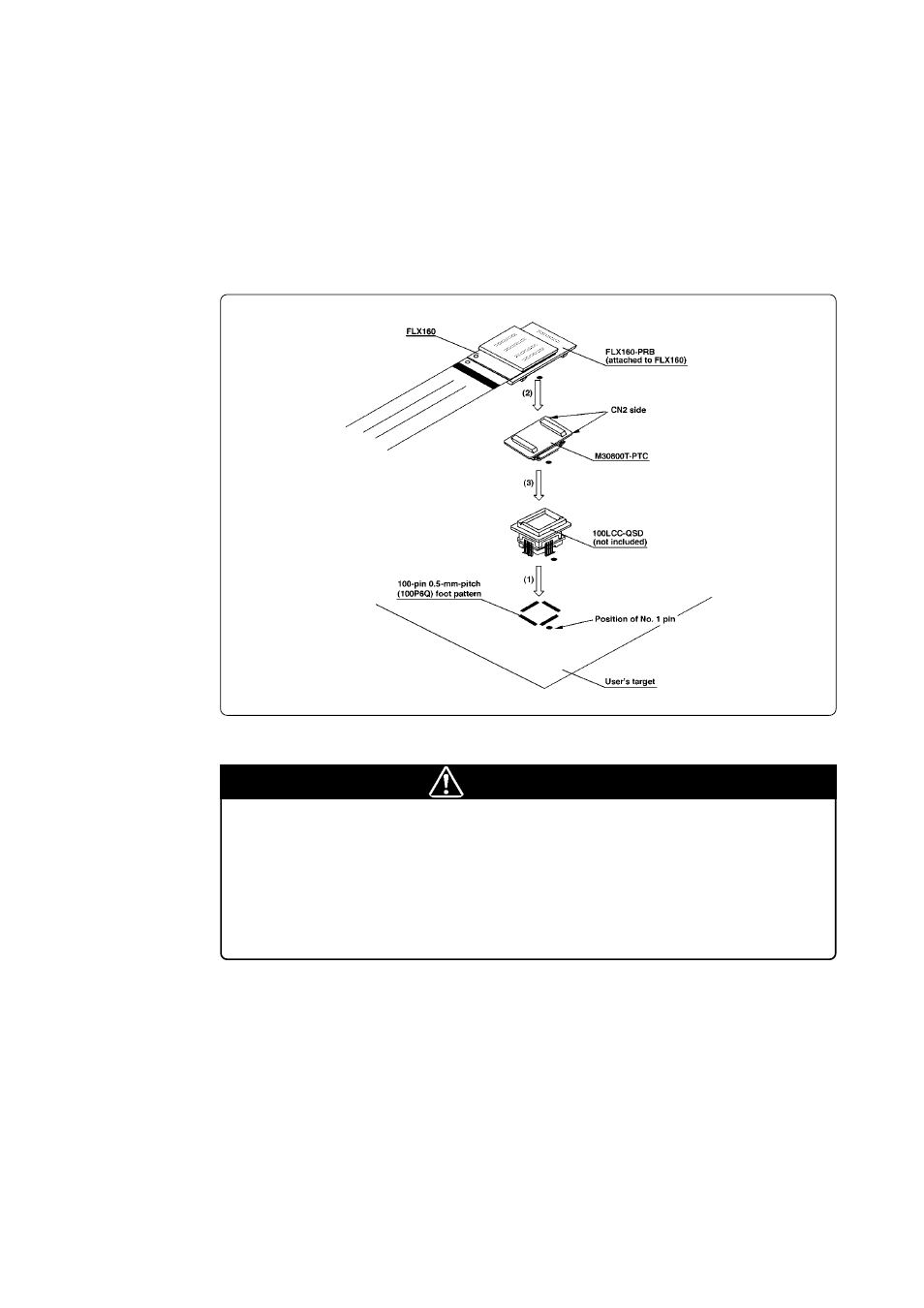

Figure 3.16 Connecting emulation pod probe and 100-pin 0.5-mm-pitch foot pattern (part 1)
CAUTION
Notes on Connecting the Target System:
• Take care not to attach the converter board in a wrong direction. It may cause a fatal
damage to the emulation pod.
• The small connectors of M30800T-PTC are guaranteed for only 50 insertion/
removal iterations.
