(2) Inside of Emulation Pod

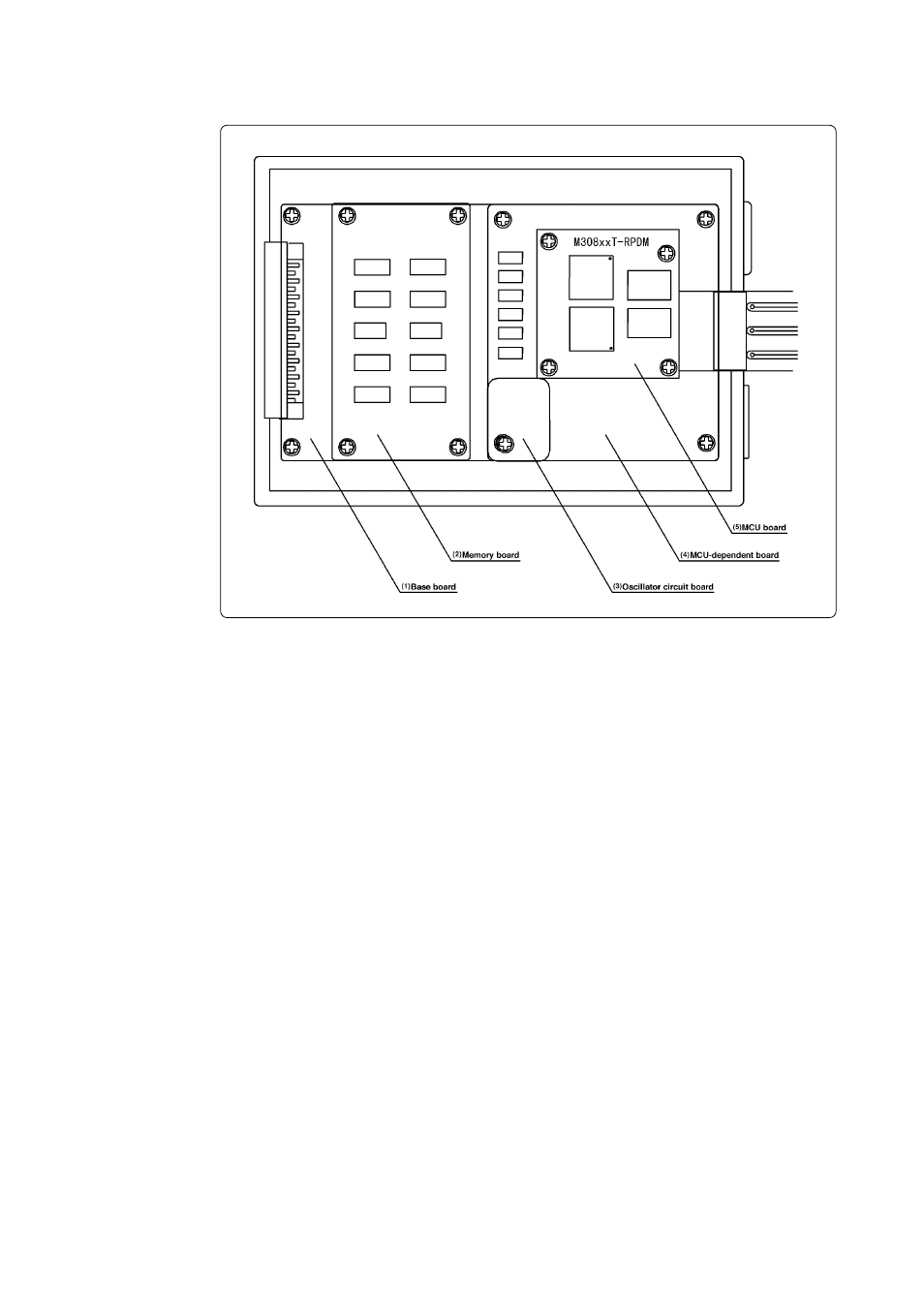

Figure 2.2 Internal view of emulation pod
(1) Base board
Base board for the M16C/80 Group MCUs which controls the interface with the PC4701 and the
evaluation MCU.
(2) Memory board
Board on which the 1.5MB emulation memory is mounted.
(3) Oscillation circuit board
Board on which the internal oscillation circuit of the emulation pod is mounted. Operating
frequency can be changed by replacing this board with other available oscillation circuit boards.
(4) MCU-dependent board
Board grouping parts (number of pins or added functions) which vary according to MCU model.
(5) MCU board
Board on which the MCU and the emulation memory for the MCU's internal ROM are mounted.
It is planned to enable customers to use future M16C/80 Group models (Max. 20 MHz applicable
frequency) by changing the MCU-dependent board and MCU board.
