(1) Connecting 100-pin LCC Socket
When connecting the emulation pod probe to the 100-pin LCC socket (Yamaichi Electronics Co.,
Ltd.: IC51-1004-051 etc.) on the target system, following the procedure below.
(1) Attach the CN2 side of the FLX160-PRB to the CN2 side of the M30800T-PTC.
(2) Attach the M30800T-PTC to the 100-pin LCC socket.

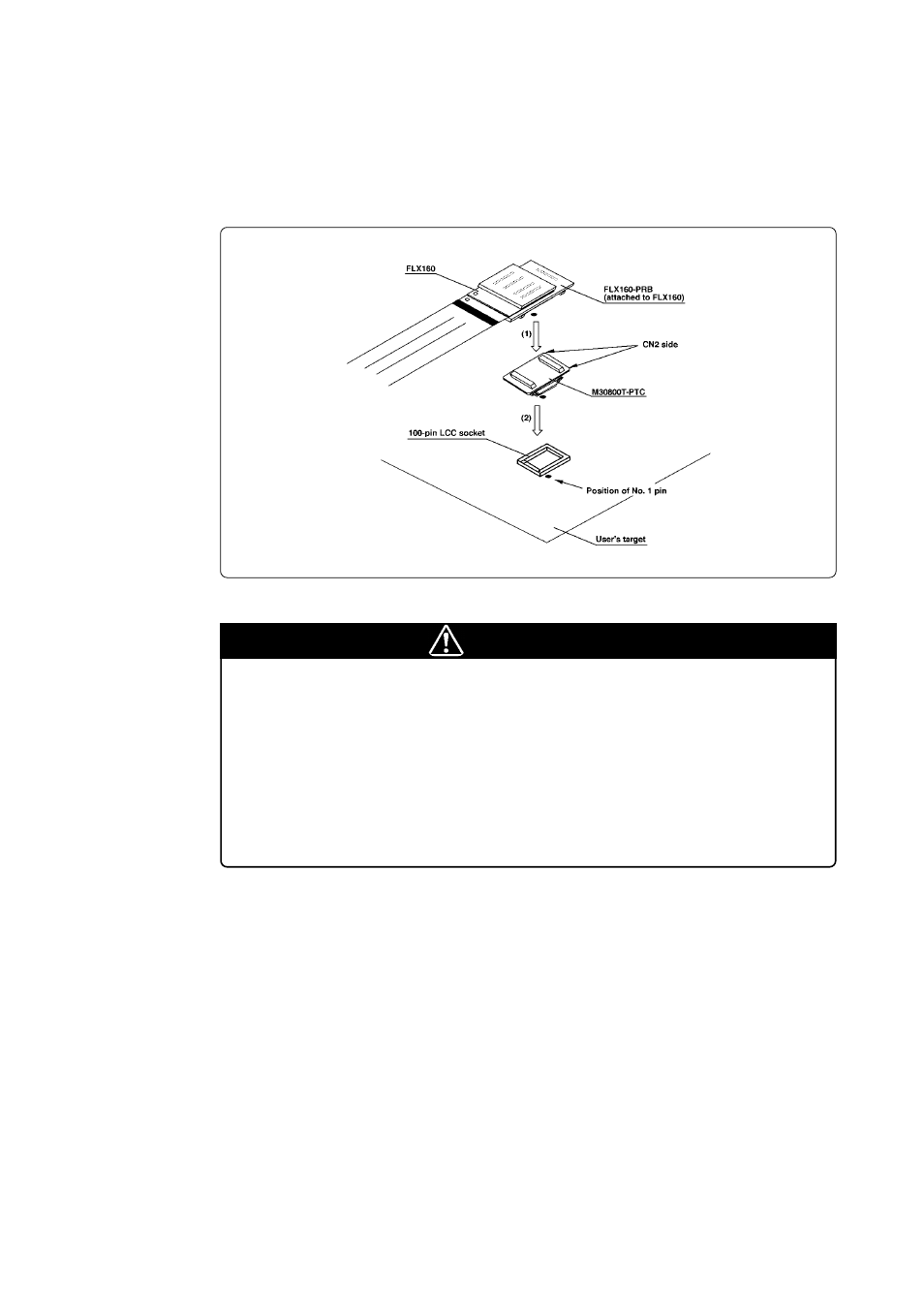

Figure 3.12 Connecting emulation pod and 100-pin LCC socket
CAUTION
Notes on Connecting the Target System:
• Take care not to attach the converter board in a wrong direction. It may cause a fatal
damage to the emulation pod.
• The small connectors of M30800T-PTC are guaranteed for only 50 insertion/
removal iterations.
• For purchasing the IC51-1004-051 or for technical information, contact Yamaichi
Electronics Co., Ltd.
