(2) Changing the Internal Oscillator Circuit of Emulation Pod
An oscillator circuit board (OSC-3) for 20 MHz is mounted on this product. To use the emulation pod
at a frequency other than 20 MHz, build the desired oscillator circuit on the included OSC-2 oscillator
circuit board (bare board) and replace the board installed in the emulation pod when shipped from
the factory.

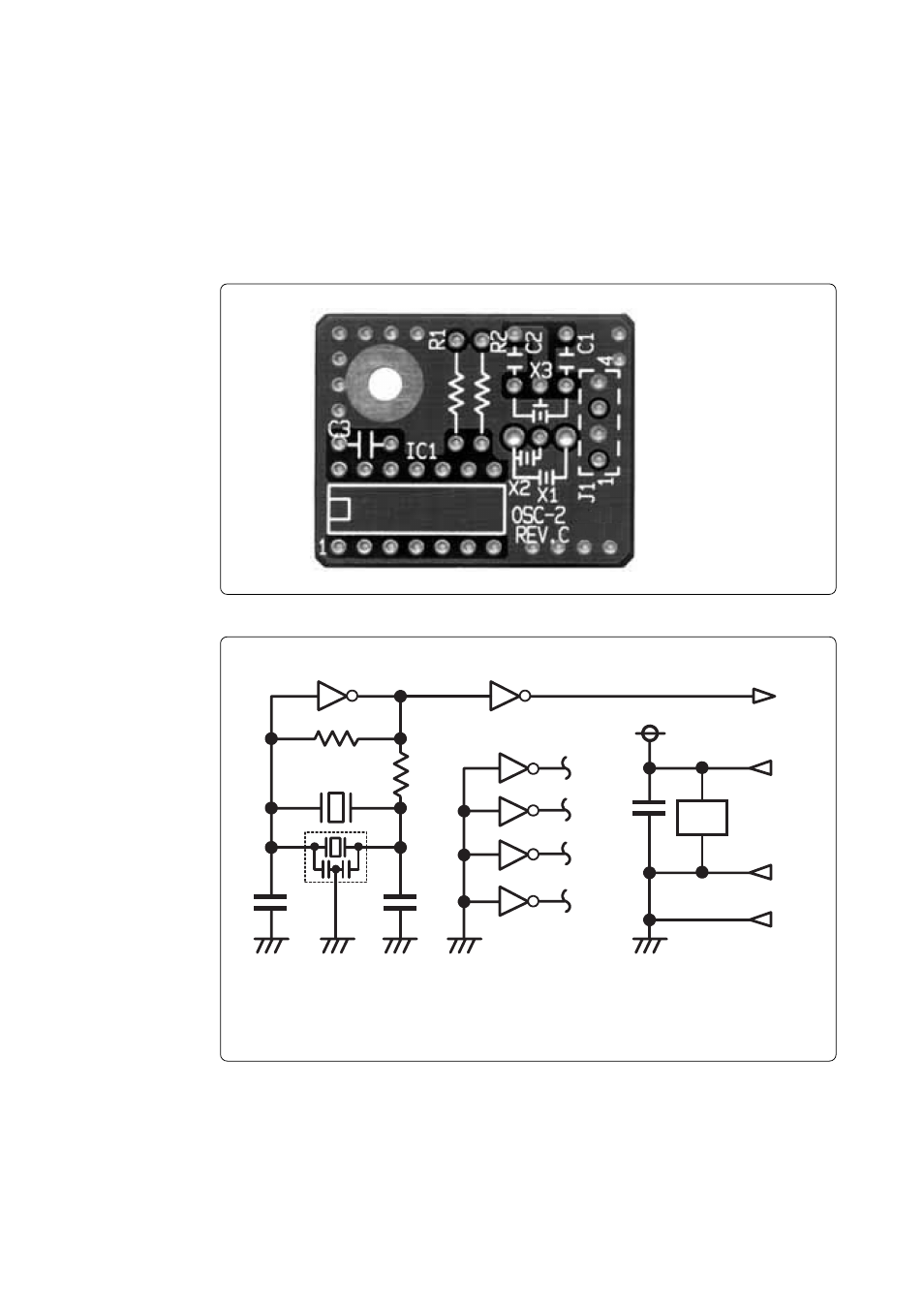

Figure 3.5 shows a view of the OSC-2 oscillator circuit board (bare board) and where connector pins
are located. Figure 3.6 shows the circuitry of the OSC-2 oscillator circuit board (bare board). Use the
number of oscillator circuits recommended by the oscillator manufacturer.
Figure 3.5 External view of oscillator board (OSC-2) and connector pin assignment
J1-4: GND
J1-3: Oscillator output
J1-2: GND
J1-1: Vcc
Figure 3.6 Circuit of oscillator board (OSC-2)
IC 1
R 1
C2 C 1
X 1 ,X 2
C LK
V cc
G N D
R 2
J1-3
10 11 8 9
2 1
4 3
6 5
12 13
C 3
IC 1
J1-1
J1-2
J1-4
G N D
IC 1
* *
X 3
*
IC 1
14
7
* X1: 5.08-mm-pitch 2-pin oscillator IC1: Inverter (Unbuffer)
* X2: 2.54-mm-pitch 2-pin oscillator
* X3: 2.54-mm-pitch 3-pin oscillator
