3.5 Connecting the PC4701 and Emulation Pod

To connect the emulation pod to the PC4701, use the FLX120-RPD 120-pin flexible cable included
in this product package. Connect the PC4701 side connector of FLX120-RPD to the cable connector
of the PC4701, then secure with screws.

(1) Connecting the Cable to the PC4701

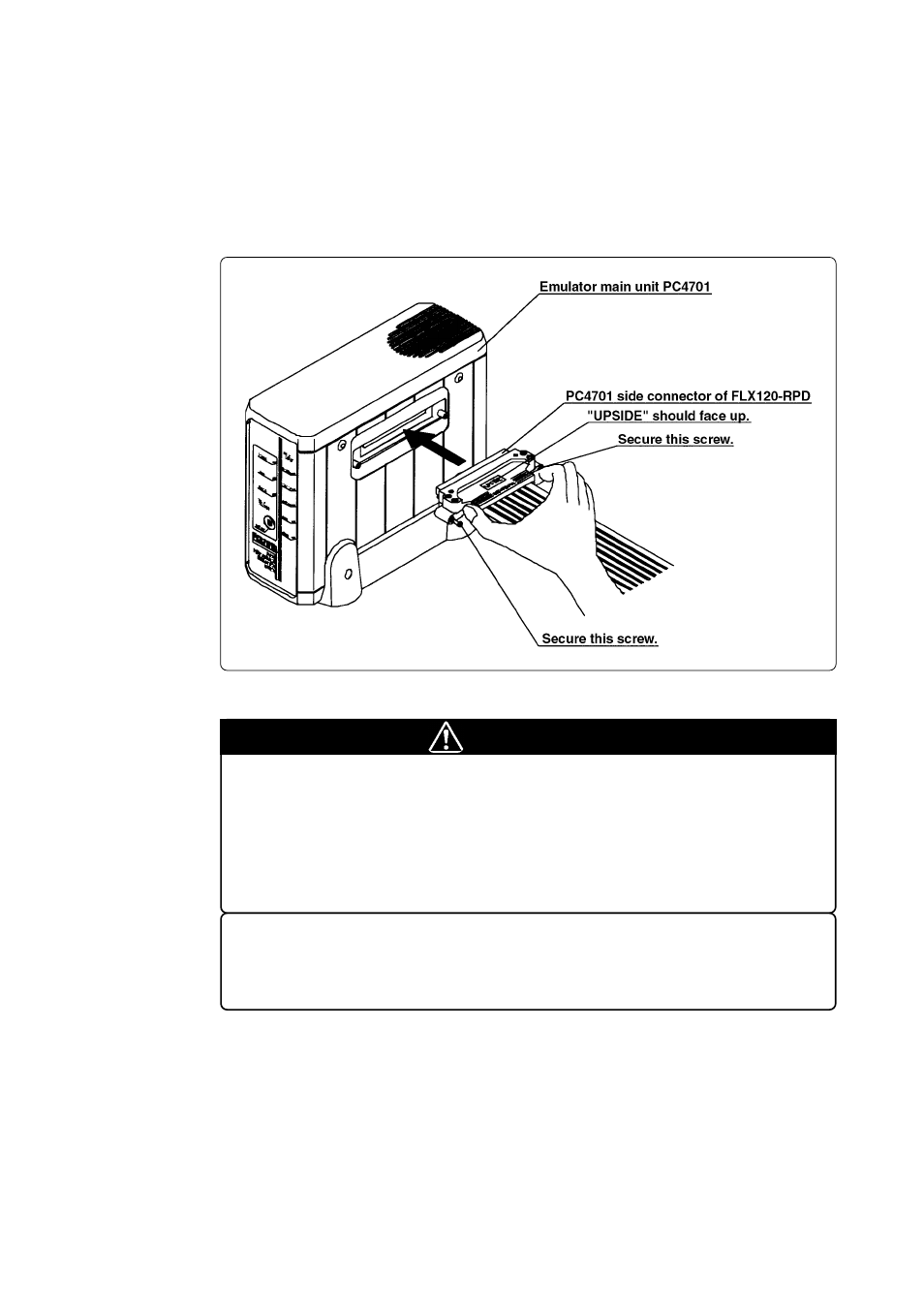

Figure 3.9 shows how to connect the PC4701 and FLX120-RPD.

Figure 3.9 Connecting PC4701 and FLX120-RPD

CAUTION

Note on Connecting the Cable:

• Always shut OFF power before connecting the cable. The power ON state could

destroy internal circuits.

• To connect the FLX120-RPD, be sure to hold the both sides of the PC4701 side

connector horizontally with the "UPSIDE" facing up.

Note on Securing the Screws:

• After connecting the emulator main unit to the cable, be sure to secure the screws.
