Overview

1.1 Overview

Rev.1.00 Oct 09, 2008

1-2

REJ11J0021-0100

1

1.1 Overview

The SH7137 CPU board (Part number: M3A-HS37) is designed for evaluating the feature and performance of the SH7137 group

of Renesas Technology original MCU, as well as developing and evaluating the application software for the MCUs. SH7137 data

bus, address bus and on-chip peripheral pins are all connected to the expansion connectors on the M3A-HS37 to allow for the

timing analysis with peripherals that use measurement instruments and connections of MCU I/O pins according to its application.

Renesas Technology E10A-USB on-chip emulator can be connected to the M3A-HS37.

1.2

U

System Configuration

2H

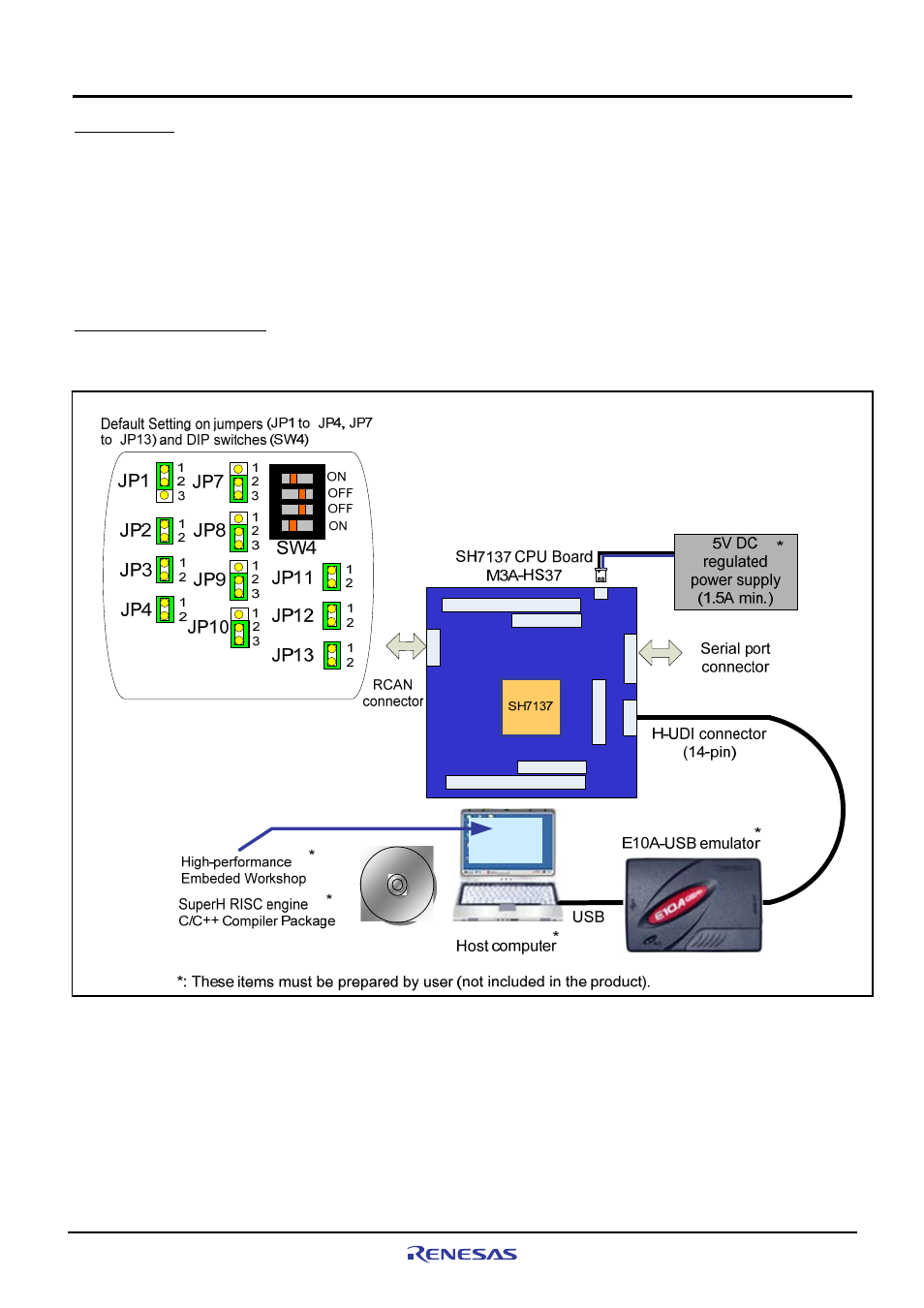

Figure 1.2.1 shows a system configuration using the M3A-HS37.

12

3

ON

4

Figure 1.2.1 M3A-HS37 System Configuration
