7 rcan interface – Renesas M3A-HS37 User Manual
Page 27
Functional Specifications
2.7 RCAN Interface
Rev.1.00 Oct 09, 2008
2-11
REJ11J0021-0100
2
2.7 RCAN Interface
The M3A-HS37 is provided with an RCAN connector (D-Sub 9-pin).

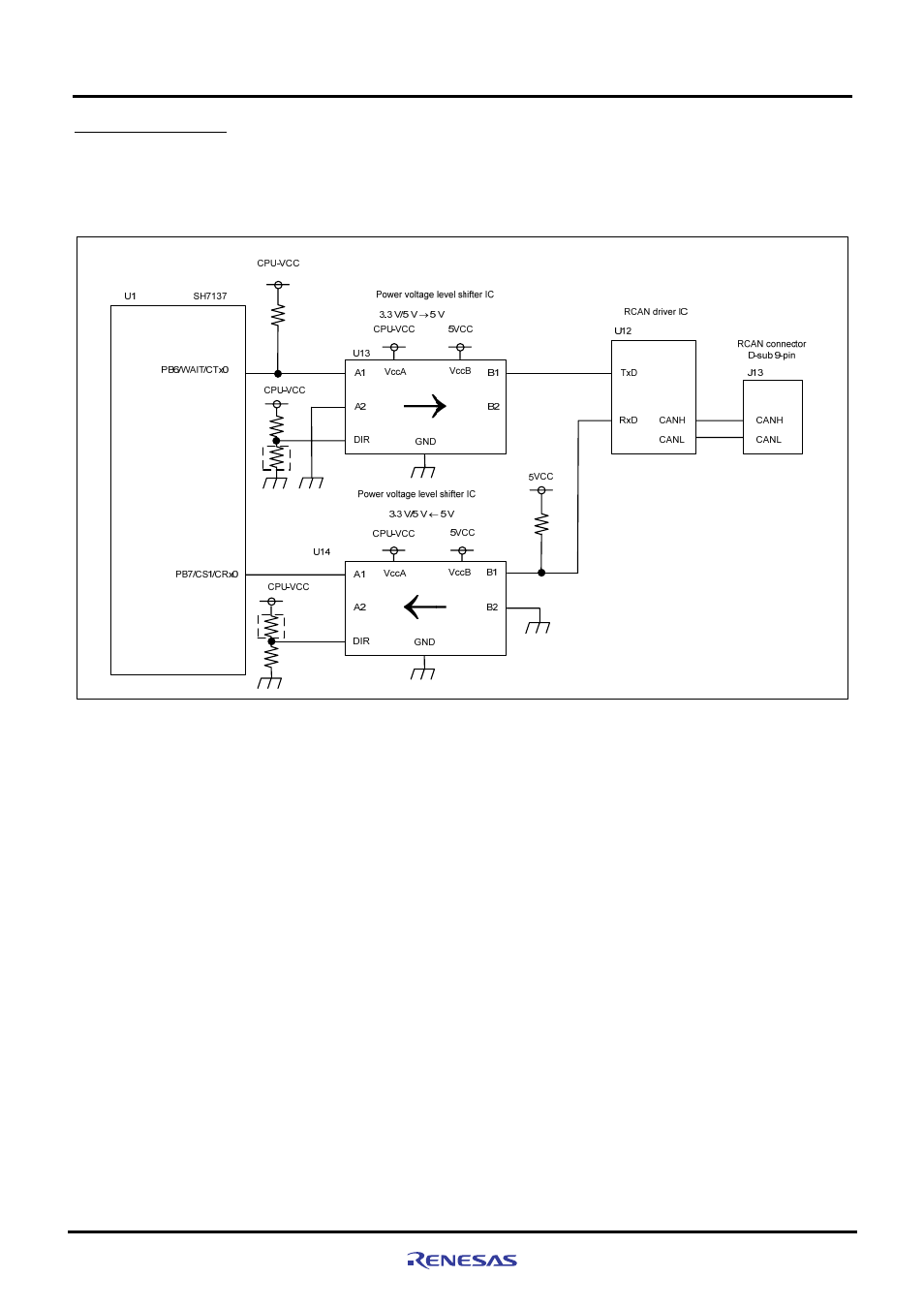

Figure 2.7.1 shows the RCAN interface block diagram.
Figure 2.7.1 RCAN Interface Block Diagram
