Overview

1.7

U

M3A-HS37 Memory Map

Rev.1.00 Oct 09, 2008

1-8

REJ11J0021-0100

1

1.7

U

M3A-HS37 Memory Map

8H

Figure 1.7.1 and

9H

Figure 1.7.2 show the memory map examples of SH7137 on the M3A-HS37.

H'0000 0000

Reserved

H'0000 0000

H'0004 0000

Peripheral I/O

H'FFFF 8000

H'FFFF 7FFF

On-chip RAM (16 KB)

H'FFFF C000

H'FFFF BFFF

H'FFFF FFFF

On-chip RAM (16 KB)

H'FFFF FFFF

H'0003 FFFF

On-chip ROM (256 KB)

H'FFFF C000

H'FFFF BFFF

H'FFFF 8000

H'FFFF 7FFF

Peripheral I/O

H'0004 0000

H'0003 FFFF

SH7137 logical space

MCU Mode 3

(Single chip mode)

On-chip ROM (256 KB)

M3A-HS37

Memory Map

Reserved

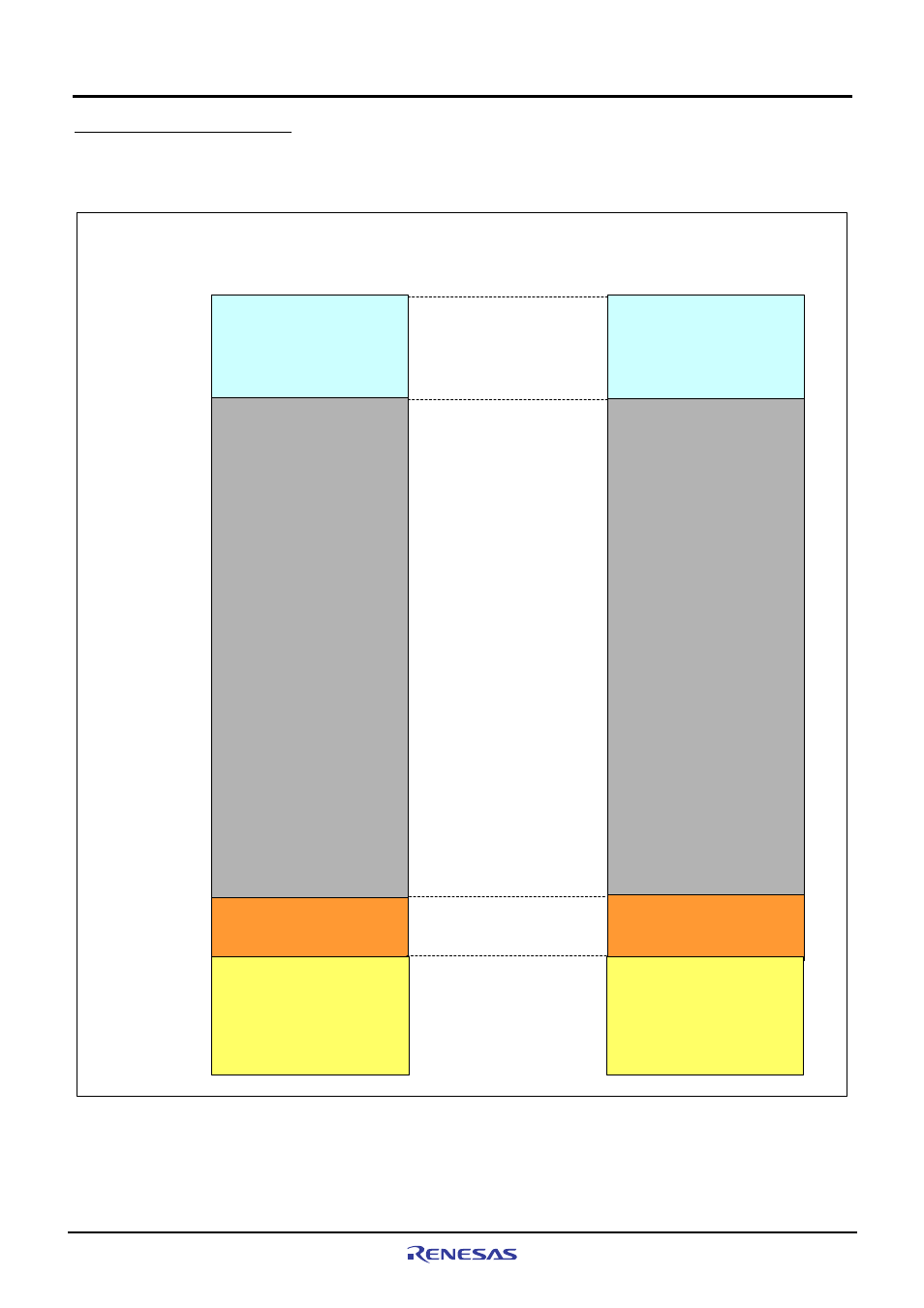

Figure 1.7.1 SH7137 Memory Map (MCU mode 3)
