Operational Specifications

3.1.1 H-UDI Connector (J2)

Rev.1.00 Oct 09, 2008

3-3

REJ11J0021-0100

3

3.1.1 H-UDI Connector (J2)

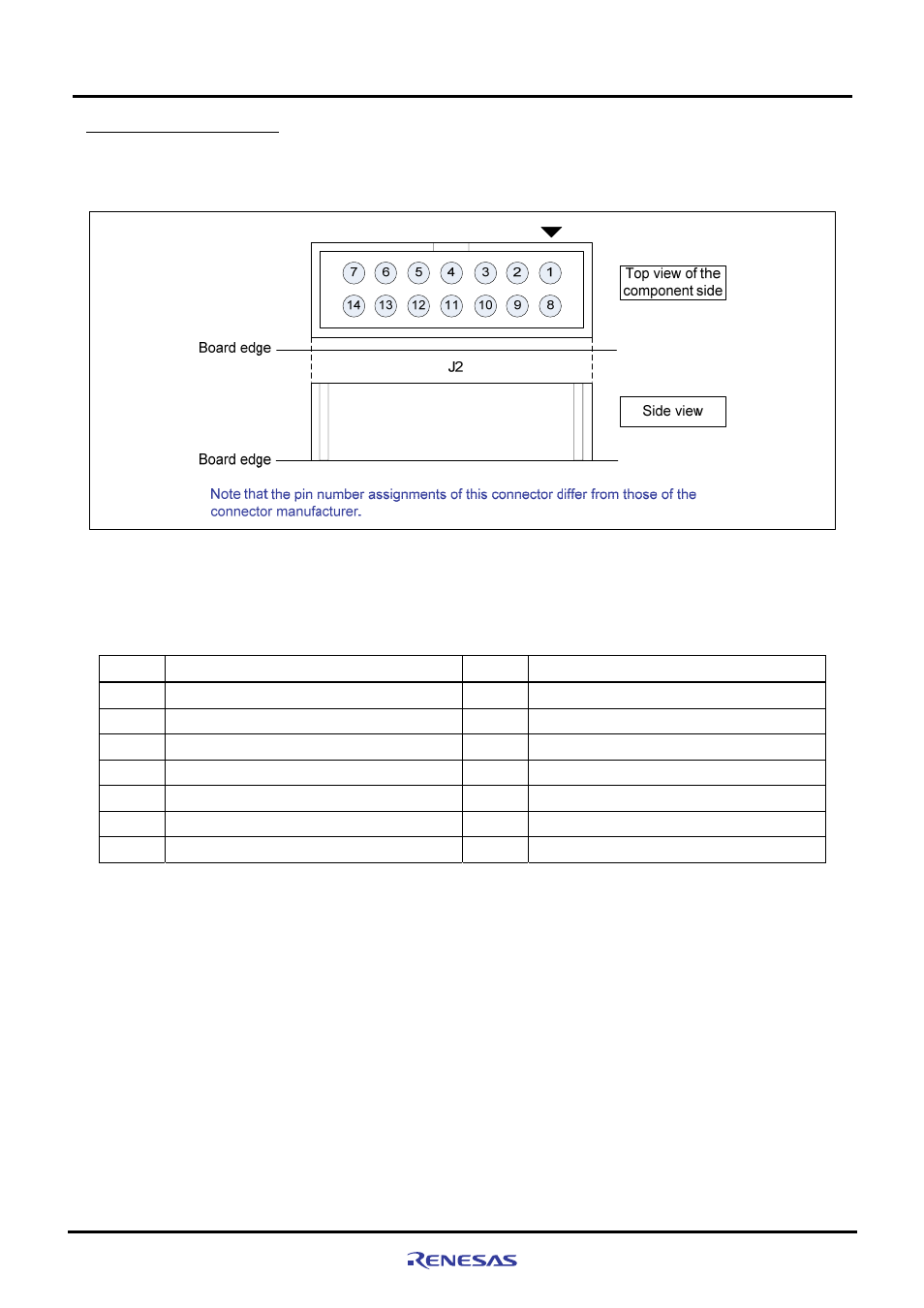

Figure 3.1.2 shows the pin assignments for the H-UDI connector (J2).

Figure 3.1.2 Pin Assignments for H-UDI Connector (J2)

Table 3.1.1 lists the pin assignments for the H-UDI connector (J2).

Table 3.1.1 Pin Assignments of H-UDI Connector (J2)

No.

Signal Name

No.

Signal Name

1

TCK

8

NC

2

TRST

_________

9

(GND)

3

TDO

10

GND

4

ASEBRKAK

___________________

/ASEBRK

______________

11

UVCC

5

TMS

12

GND

6

TDI

13

GND

7

RES

_______

14

GND
