3.2 Switches and LEDs
The M3A-HS37 is provided with switches and LEDs as its operational components.

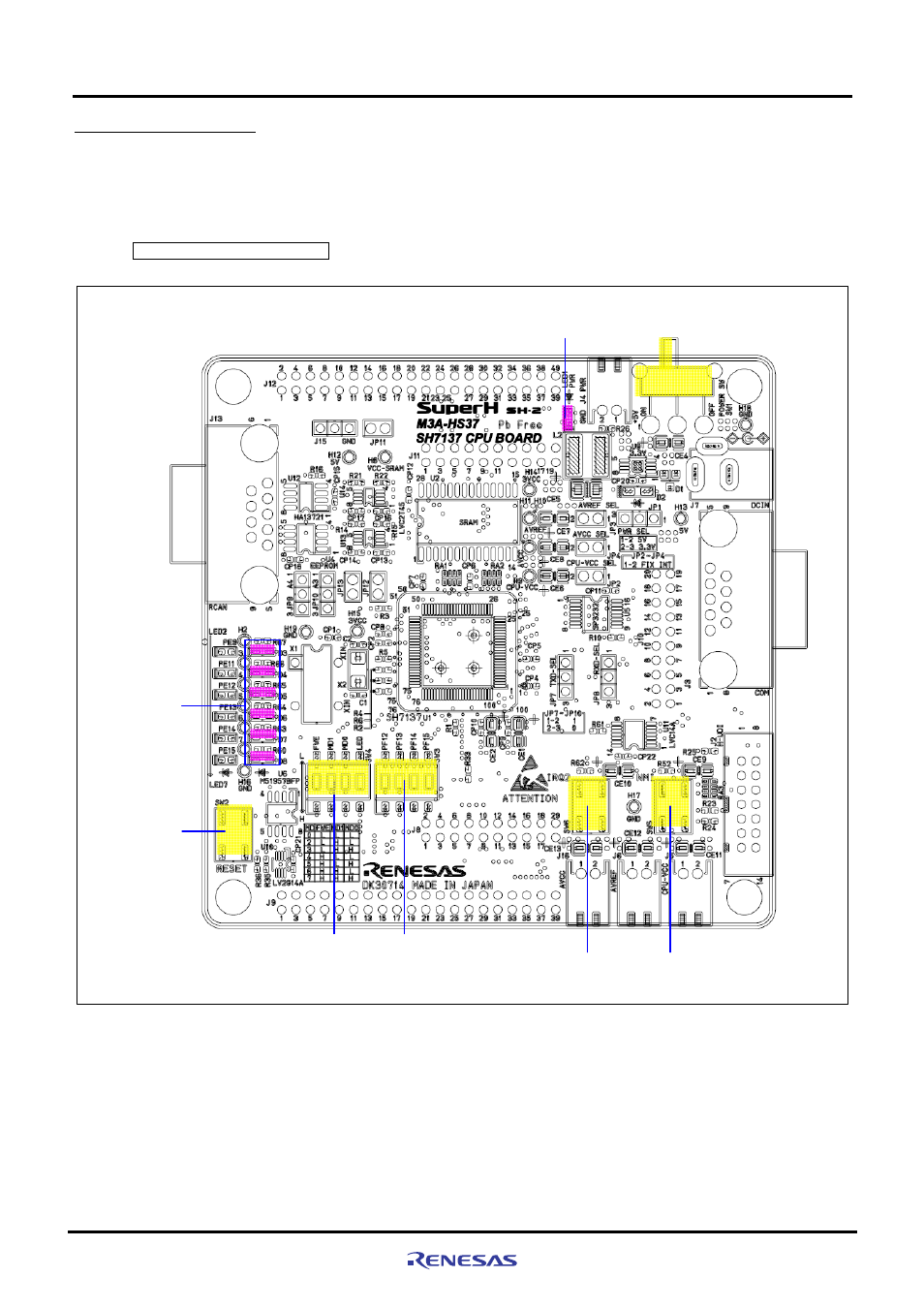

Figure 3.2.1 shows the assignments of the M3A-HS37 operational components.
Top view of the component side
SW1
Power switch
SW4
System setting
DIP switches
LED1
Power LED
SW5
NMI switch
SW6
IRQ2 switch
SW3
User DIP
switches
LED2 to LED7
User LEDs
SW2
Reset
switch
Figure 3.2.1 Assignments for the M3A-HS37 Operational Components
